12

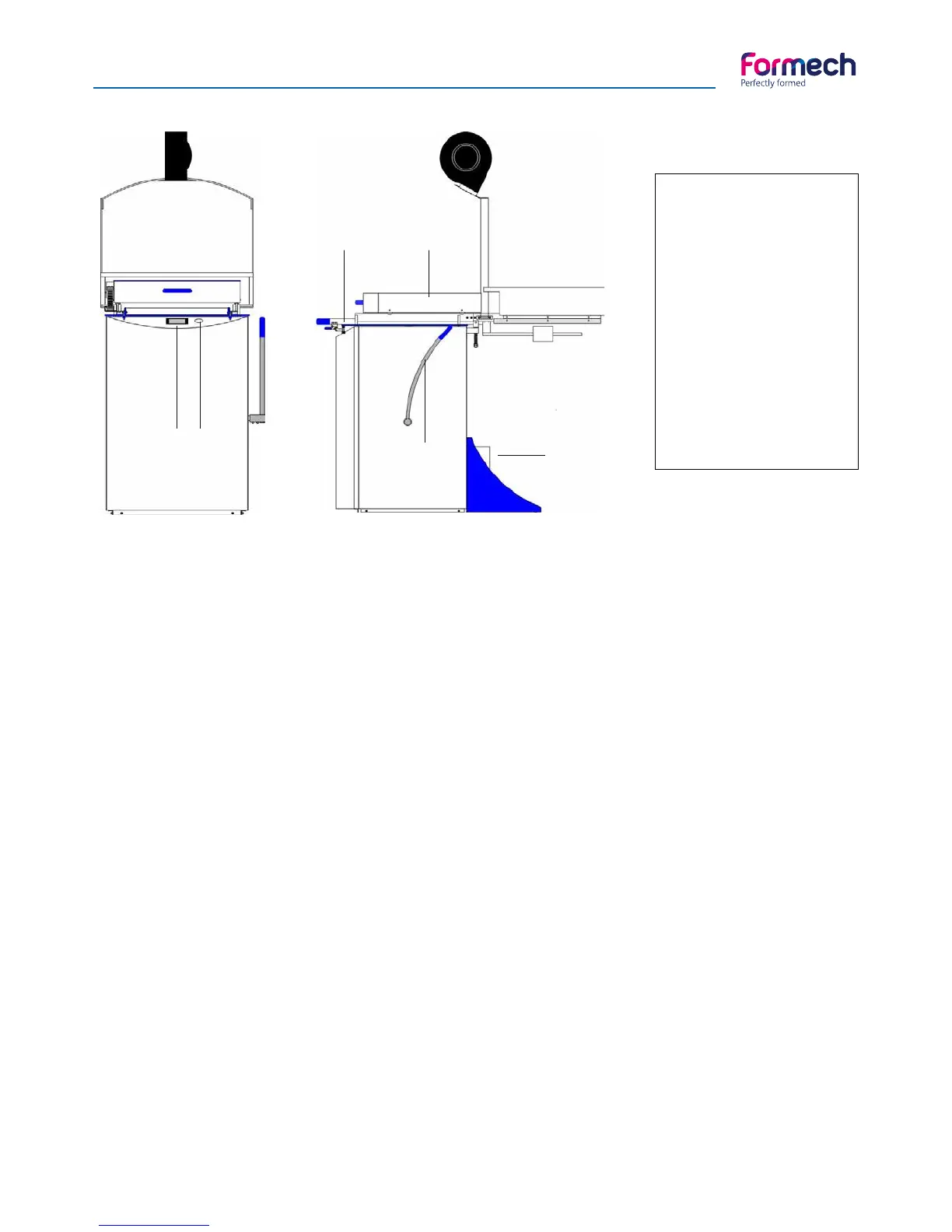

General Arrangement 508FS
Electrical Specifications
220/240V, 20 amps, 50Hz single phase
208/220V, 20 amps, 60Hz two phases
(North America)
Power consumption: 3,5 kW
Air supply requirement: 80PSI / 5 bar
Mechanical Specifications
Sheet size: 508 x 457mm
Forming area: 482 x 432mm
Max depth of draw: 290mm
Overall width: 720mm
Overall height: 1140mm (1950mm with cooling fan system)
Overall length: 1474mm (ASSEMBLED)
Weight: 100kg
Legend
1- Touch screen
2- Vacuum gauge
3- Clamp frame
4- Material clamp
5- Heater box
6- Table lever
7- Specification plate
Power inlet receptacle
Main fuse
Power switch ON/OFF
Air output
Transportation / Positioning
The 508FS will be supplied strapped to a Pallet or in a crate. The Machine may be carefully moved from
the transportation pallet and situated directly on a firm floor before installation. Ensure that the structure
and load bearing capacity of its position is sufficient for the machine weight. A minimum of 2 persons are
required to move the machine. Do not attempt to lift this machine without a mechanical aid. ALL MOVING
AND LIFTING MUST BE SUPERVISED BY THE PERSON RESPONSIBLE FOR HEALTH AND SAFETY.
Noise emissions
Noise emissions on the Formech 508FS are less than 70dB(A).
Machine storage
The Formech 508FS must be stored in a dry environment. If the machine is not used for a long period of
time, run the pump periodically (once a month).
1 2
3 5
6
7
