Manual - Formech 508DT/FS - Rev 3

56

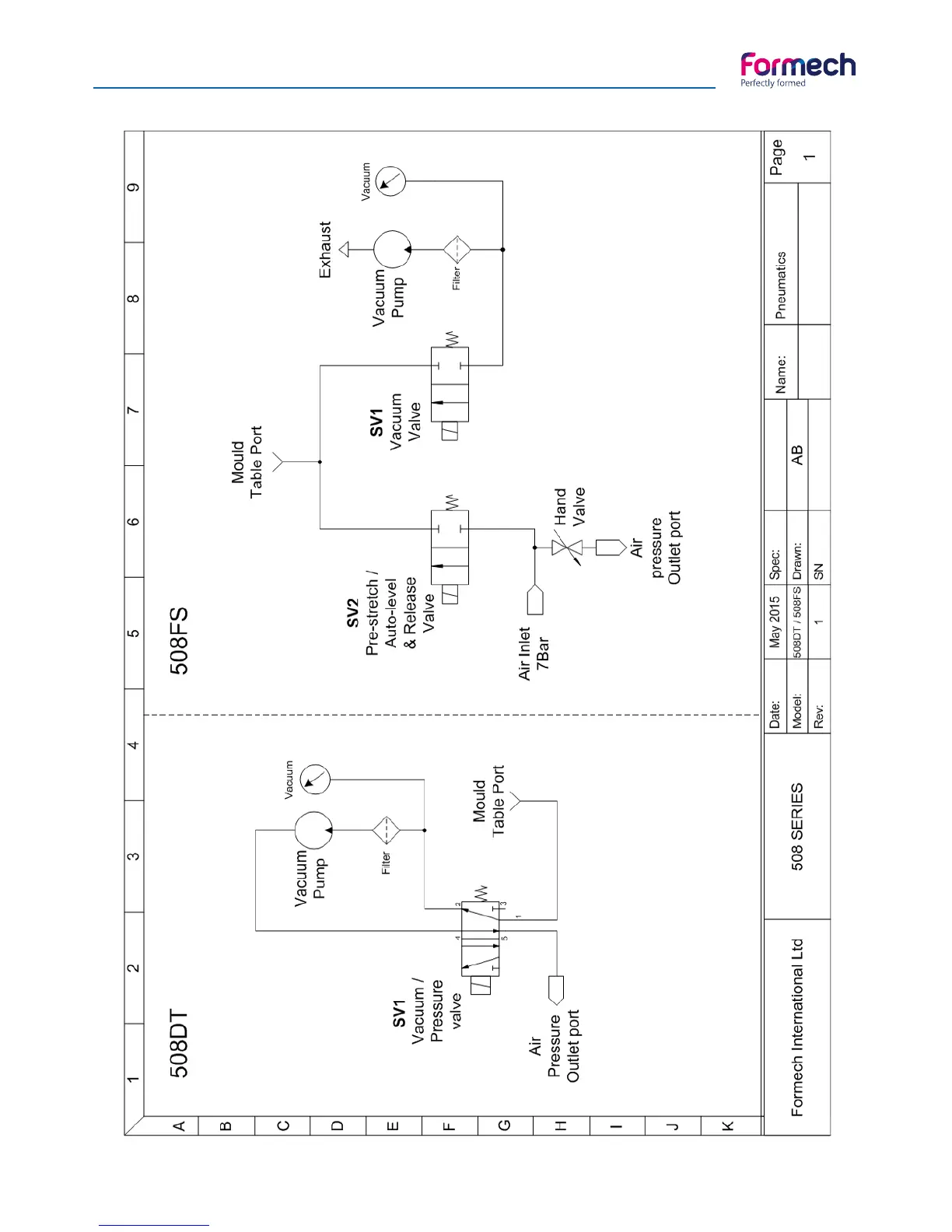

Pneumatics 508DT & 508FS

Table of Contents

Default Chapter2
- Table of Contents2
Safety4
Introduction8
General Arrangement 508DT9
- Machine Footprint9
- Electrical Specifications10
- Mechanical Specifications10
- Transportation / Positioning10
- Noise Emissions10
- Machine Storage10
General Arrangement 508FS11
- Machine Footprint11
- Mechanical Specifications12
- Transportation / Positioning12
- Noise Emissions12
- Machine Storage12
- Electrical Specifications12
General Arrangement 508DT & 508FS13
Installation and Inital Assembly 50816
- Lifting and Handling - 508DT Only16
- Heater Guard - 508DT & 508FS17
- Fitting Reducing Windows (Optional)18
- Air Outlet Connection - 508DT Only19
Installation and Initial Assembly (508FS Only)20
- Counterweights20
- Castor Option21
- Fitting the Castors21
- Fitting the Rear Stabilisers22
- Cooling Fan Option23
- Compressed Air Connection - 508FS Only25
Operating Procedures - Quick Start Guide26
- Introduction to the 508 Control System - Operating Buttons and Icons26
- Initial Requirements (508DT &508FS)28
- Main Menu29
- 508DT Basic Operation30
- 508DT Settings31
- 508DT Saving Parameters to Memory32
- 508DT Operating Using Saved Parameters32
- 508FS Basic Operation33
Operating Procedures - Other Settings / Loading Programs35
- 508FS Fan System Activation35
Optional Extras36
Tools37
- 508DT/FS Standard Baseboard38
- 508DT/FS Reducing Window Baseboard39
Plastics40
Post Forming Operations41
- After Forming41
- Trimming41
Warranty42
- Seals42
- Heating Elements42
- Vacuum System42
Service / Repair43
- Replacing Seals43
- Replacing a Heating Element44
- Electrical Troubleshooting46
- Vacuum / Pressure Troubleshooting (508DT & 508FS)48
- Cleaning49
- Lubrication49
Electrical Wiring - 508DT50
Vacuum Pump 2D351VM - 508DT Only51
Electrical Wiring - 508FS53
Becker Pump VT 4.10 - 508FS Only54
Pneumatics 508DT & 508FS56
Major Parts Listing 508DT & 508FS57
EC Certificate59
