18

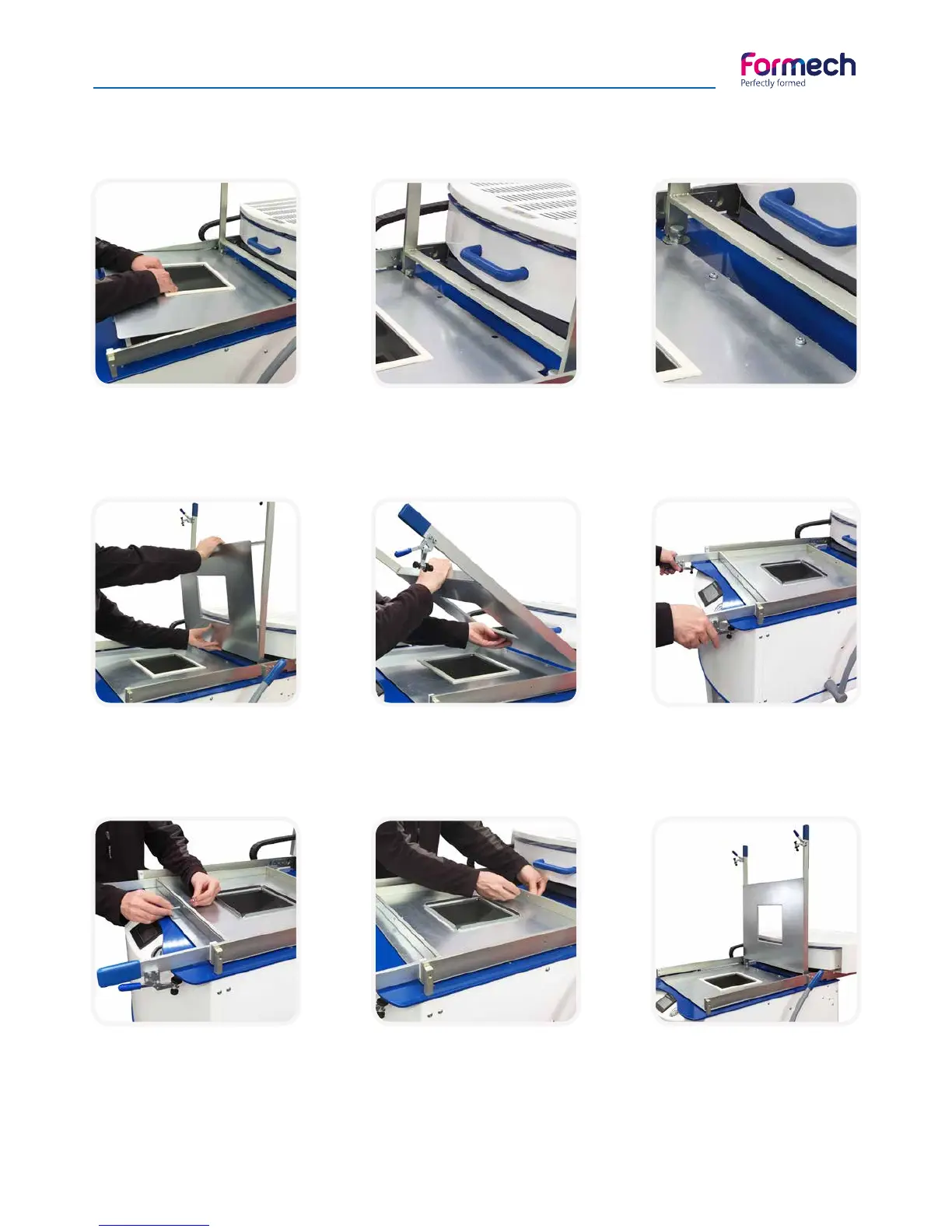

Fitting reducing windows (optional)
Lift the clamp frame and
place the lower reducing
window in the machine.
Fit the bolt and the nut to
secure the window to the
clamp frame.
Do the same on the back of
the reducing window. Make
the nuts and bolts finger
tight. Do not use a spanner.
Reducing windows correctly
fitted to the machine.
Close and lock the clamp frame.
At this stage, you may have to
adjust the toggle clamps.
The lower reducing window
locates over the cap head
screws at the rear.
In order to locate the window,
position the plate holes 1cm
beyond the cap head screws
and pull back to locate.
Place the upper reducing
window in the clamp frame
at the rear.
Then locate it at the front of
the clamp frame.
Installation and Inital assembly 508
