Formech 508DT - 508 DT;FS Reducing Window Baseboard

Manual - Formech 508DT/FS - Rev 3
39
477mm (18.78”)
427mm (16.81”)
Make board 4mm ( 0.15”) smaller than reducing
window aperture front to back and left to right
213.5mm (8.40”)
9-10mm (3/8”)
238.5mm (9.38”)
1mm (0.04”) mild steel
Attach MDF board to steel plate with screws
or strips of high bonding double sided tape
442mm (17.40”)
392mm (15.43”)
7mm (0.275”) Diameter holes

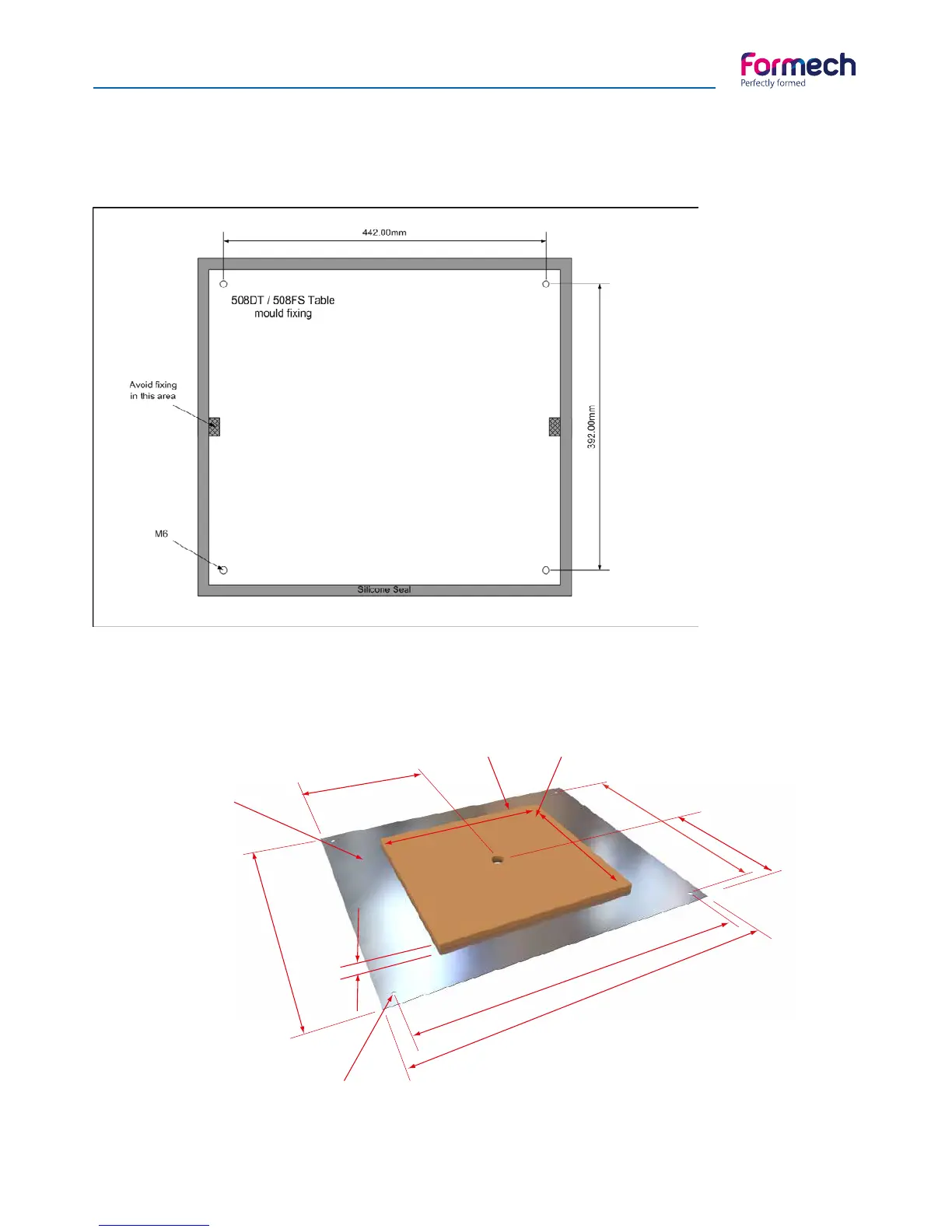

508DT and 508FS baseboard construction for reducing windows
MDF Inner baseboard
Use the four cap head M6
set screws that came with the
machine to hold down the
steel plate
R2mm (0.078”) radius on top
edge all round to stop
MDF from flaking
508DT/FS reducing window baseboard
Tools
508DT/FS standard baseboard (continuation)
In plan view of the standard baseboard
