General Arrangement 508DT & 508FS
Machine arrangement (continuation)
7. Power connection.
508FS – supplied with 2.5mm cable fitted to connect to a single phase 20amp socket. See Safety section at
the beginning of this manual. 508DT – Supplied with C19 plug or C201 receptacle. Note the safety labelling.
7. Mains fuse.
This fuse protects the machine and should only be replaced by another of same type and rating. See Image
below – 508DT Only. 508FS – Circuit breakers are fitted to Live and neutral feeds internally.
7. Power Switch ON/OFF.
508DT - See Image below. When OFF, power is cut to all functions. Before commencing any repair work
always remove the mains lead from the Power Inlet Receptacle. 508FS – Supplied with a rotary 2 pole switch
on the electrical cabinet.

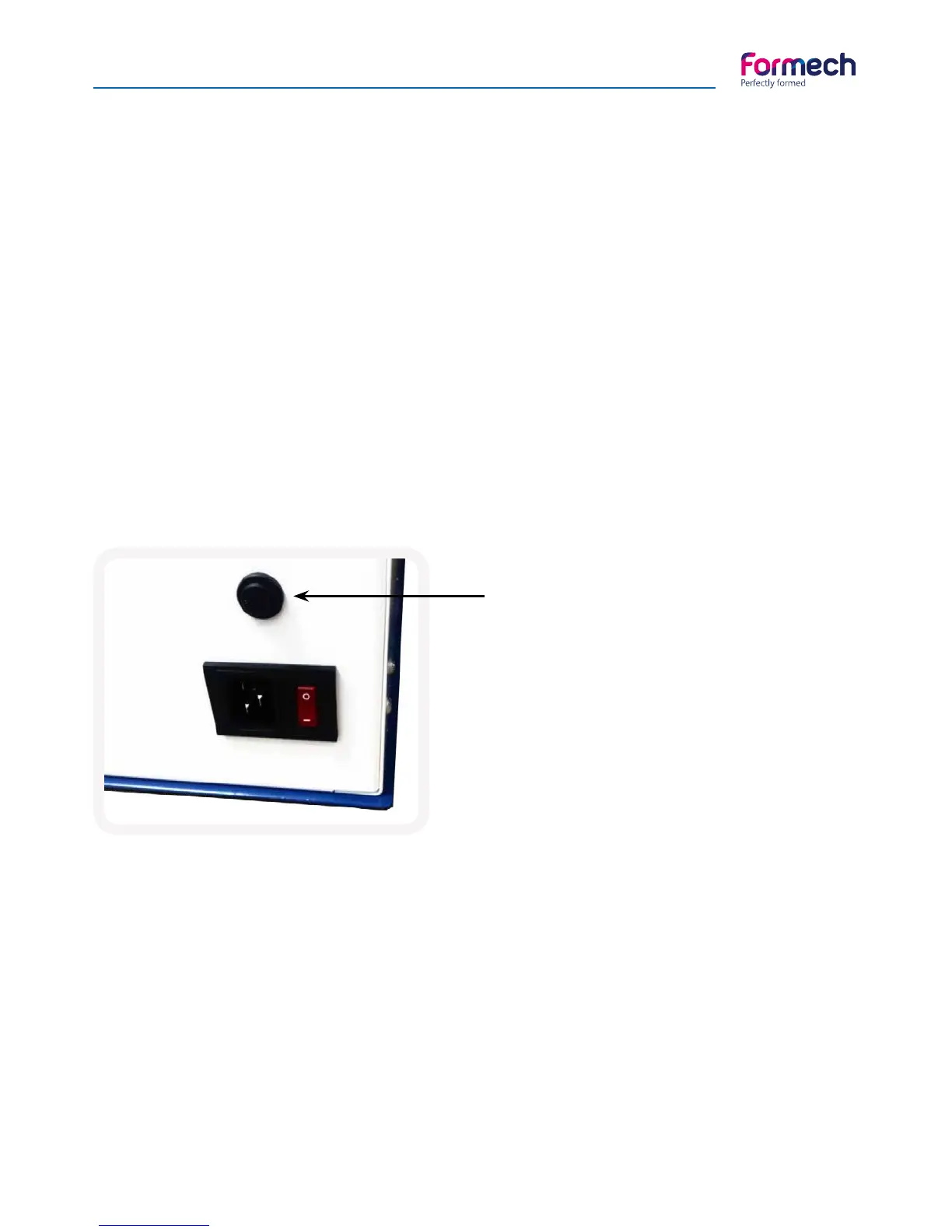

The fuse is positioned
separately above the power
socket. 508DT.
