Service / Repair

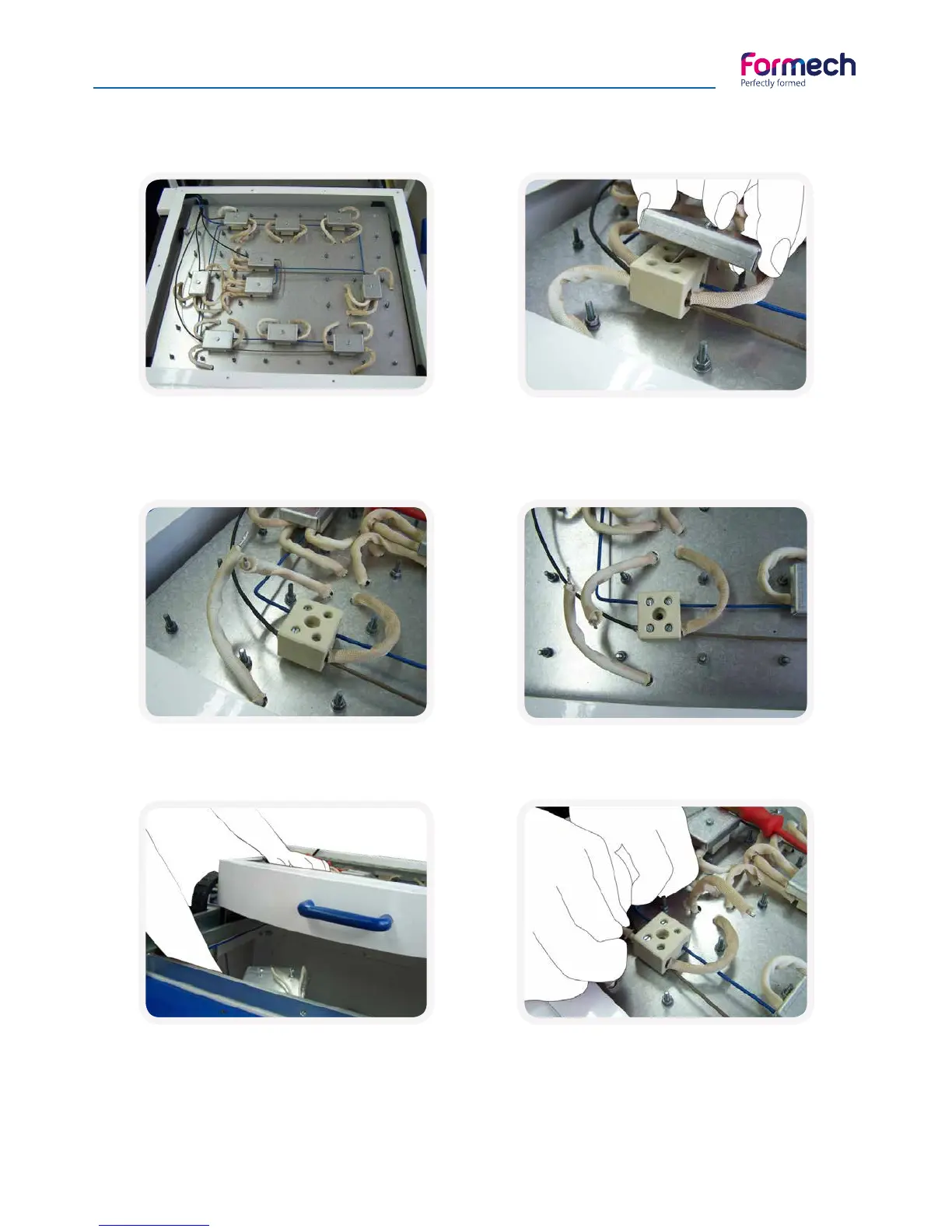

Replacing a heating element (continuation)
At this stage check that all the element wires and
interconnecting wires are fully tightened and that
the fault was not merely a loose connection.
Remove the relevant terminal block
cover(s).
Loosen and remove the element wires from
the appropriate connector block.
Remove the nuts and washers holding the
faulty element.
Remove element and fit the replacement new
heating element ensuring the fixing screws
are secured.
Ensure that the connections are correctly
fitted and the connector block screws are fully
tightened. Replace the connector cover and test
the heater. Finally reassemble the heater top
cover and retaining plate for the front fixings.
