Package Contents Installing the FortiGate unit
Mounting
The FortiGate-400A can be installed on any stable surface. The FortiGate-400A
unit can also be mounted on a standard 19-inch rack. It requires 1 U of vertical
space in the rack.
Table 3: Technical Specifications
FortiGate-500A
The FortiGate-500A package contains the following items:
• FortiGate-500A Unified Threat Management System
• one orange crossover Ethernet cable (CC300248)
• one gray straight-through Ethernet cable (CC300249)
• one RJ-45 to DB-9 serial cable (CC300302)
• two 19-inch rack mount brackets
• one power cable
• FortiGate-500A QuickStart Guide
• Fortinet Tools and Documentation CD

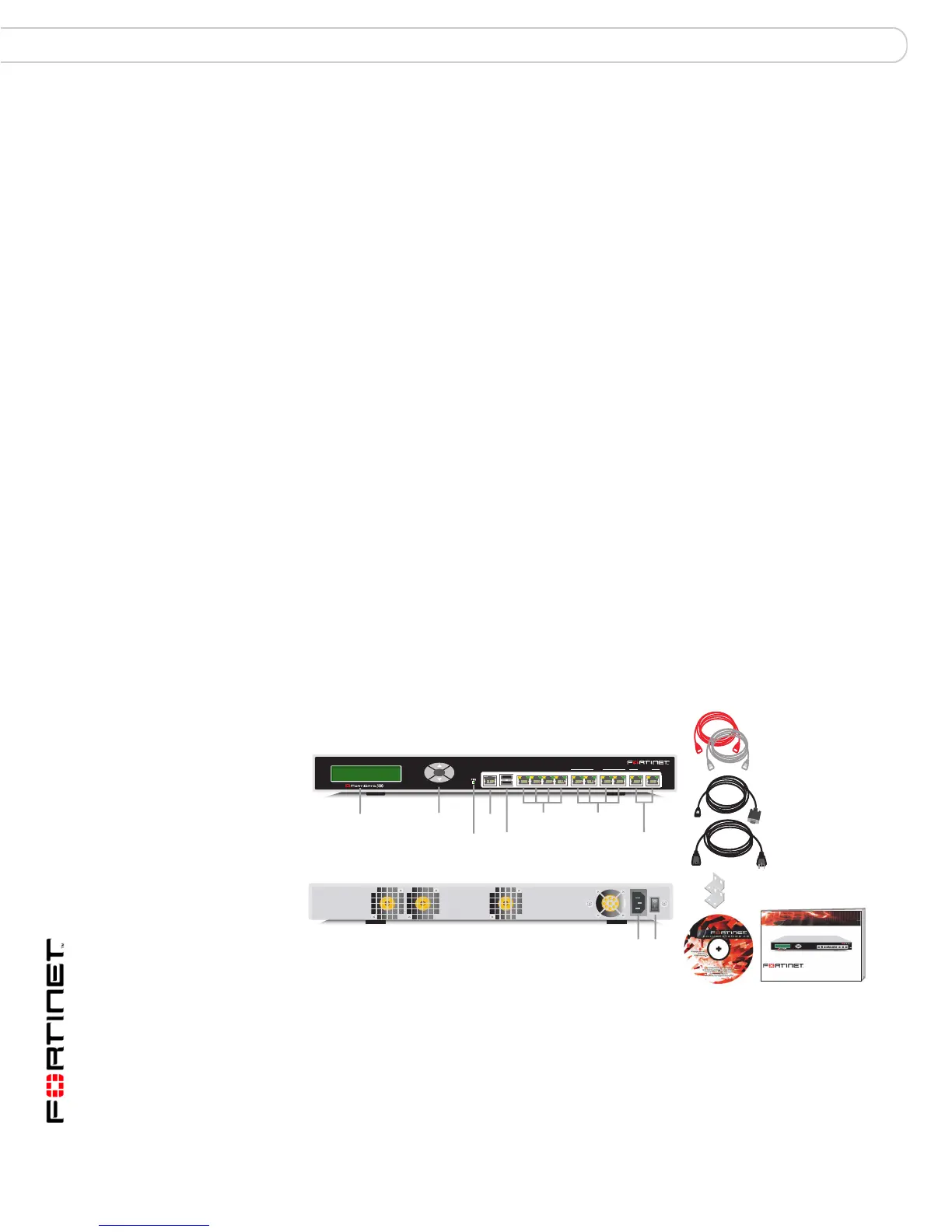

Figure 4: FortiGate-500A package contents
Dimensions 16.8 x 10 x 1.75 in. (42.7 x 25.4 x 4.5 cm.)
Weight 7.3 lb. (3.3 kg)
Power Requirements Power consumption: 130W
AC input voltage: 100 to 240VAC
AC input current: 1.6A
Frequency: 50 to 60Hz
Environmental
Specifications
Operating temperature: 32 to 104 F (0 to 40 C)
Storage temperature: -13 to 158 F(-25 to 70 C)
Humidity: 5 to 95% non-condensing
Esc Enter
A
CONSOLE
56
USB LAN
12 3 4
L1 L2 L3
L4
10/100 10/100/1000
Power Cable
Rack-Mount Brackets
Ethernet Cables:
Orange - Crossover
Grey - Straight-through
Front
LCD
Control
Buttons
Power
LED
1, 2, 3, 4
10/100
LAN
L1, L2, L3, L4
5, 6
10/100/1000
Back
Power
Connection
Power
Switch
USB
(future)
Serial
Port
RJ-45 to
DB-9 Serial Cable
Documentation
USER MANUAL
FortiGate-500A
