Next Steps Configuring the FortiGate unit
Connecting the FortiGate unit to your network
When you complete the initial configuration, you can connect the FortiGate unit
between your internal network and the Internet.
To connect the FortiGate unit running in Transparent mode
1 Connect the Internal interface to the hub or switch connected to your internal
network.
2 Connect the External interface to network segment connected to the external
firewall or router.
Connect to the public switch or router provided by your ISP.
3 Optionally connect the port or other interface that connects to other networks.

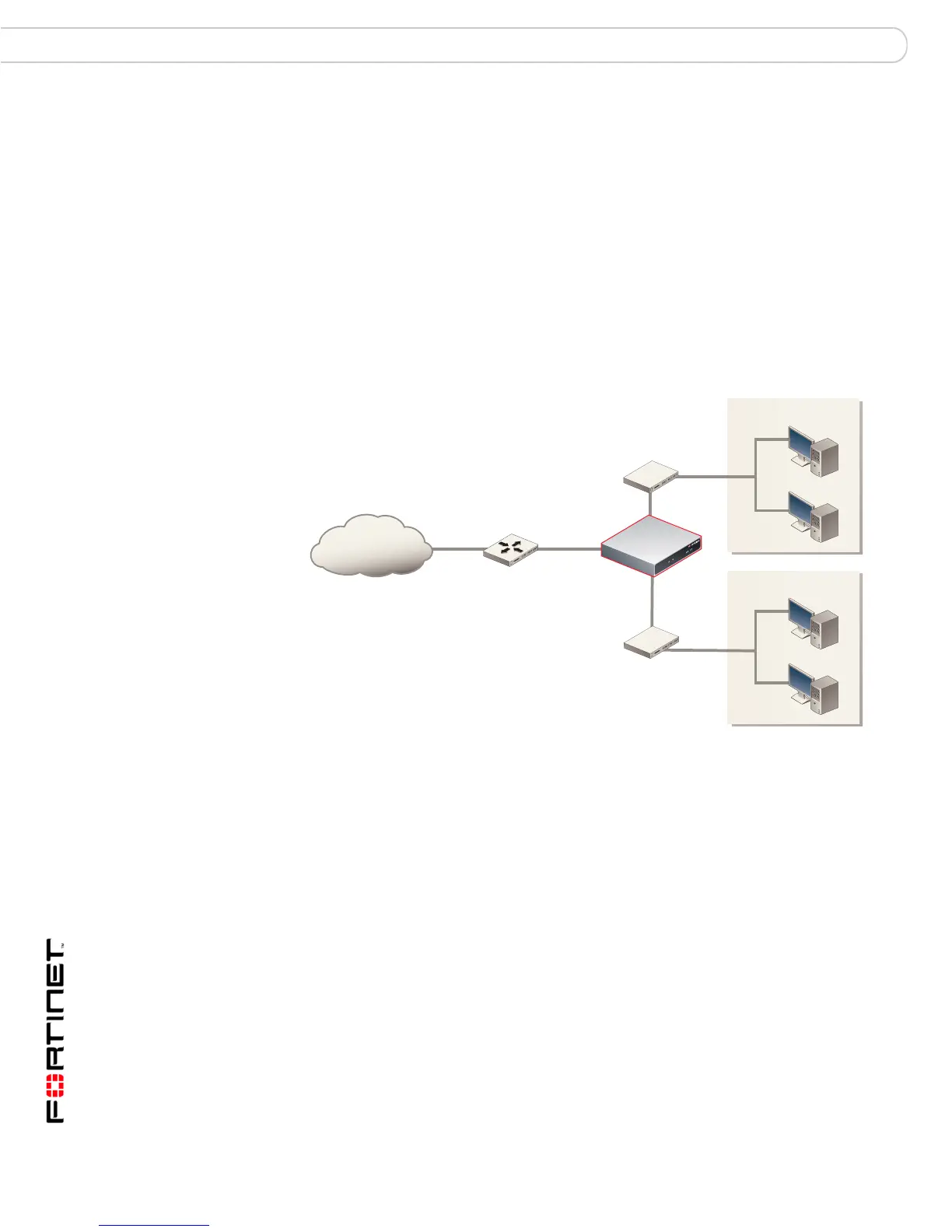

Figure 12: FortiGate-500A Transparent mode connections
Verify the connection
To verify the connection, try the following:
• ping the FortiGate unit
• browse to the web-based manager GUI
• retrieve or send email from your email account
If you cannot browse to the web site or retrieve/send email from your account,
review the previous steps to ensure all information was entered correctly and try
again.
Next Steps
You can use the following information to configure FortiGate system time , to
configure antivirus and attack definition updates. Refer to the FortiGate
Administration Guide for complete information on configuring, monitoring, and
maintaining your FortiGate unit.
Port 1
Port 2
Port 5
Hub or switch
Internal network
Other network
Internet
Router
Hub or switch
To Next Page
