5. Installation

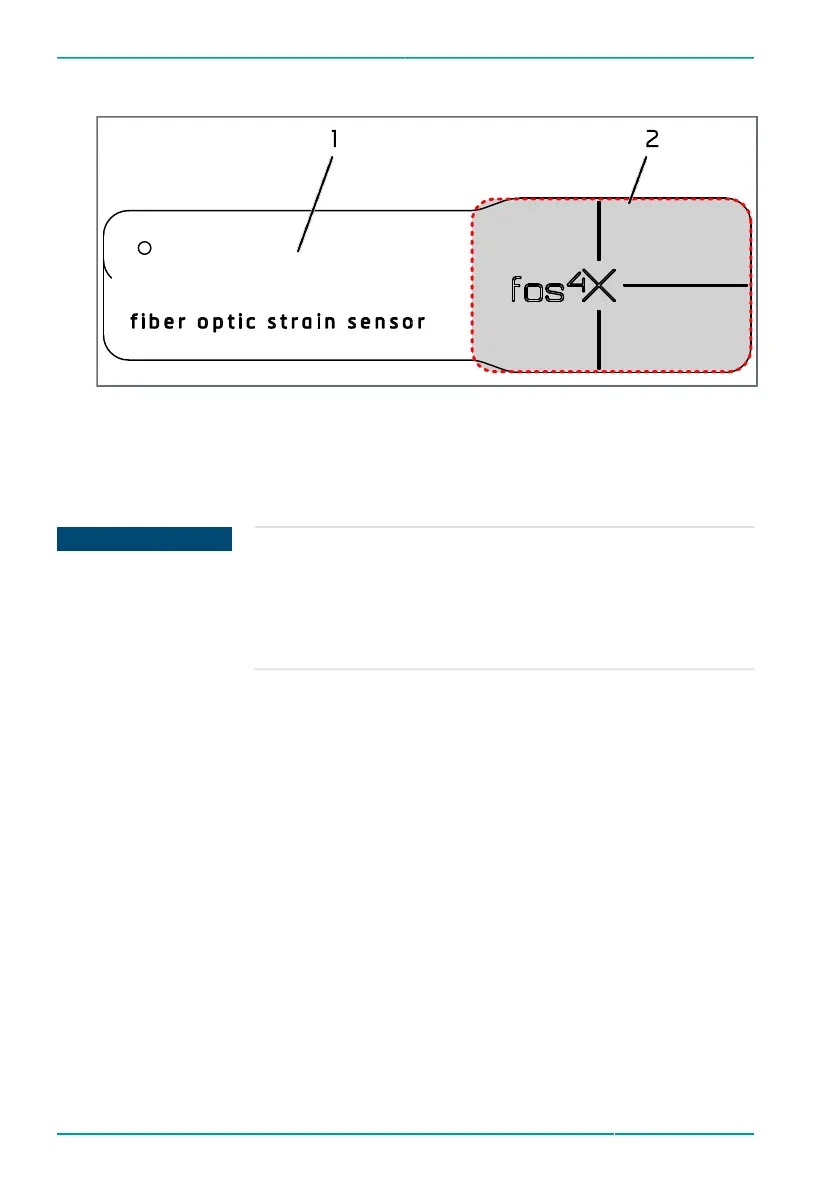

Figure 8: Areas for curing the adhesive
1
Rear area
2
Front area
13. On the top of the sensor, press the front area (2) with an even pressure of
100 ± 10 N onto the substrate.
NOTICE
Incorrect installation due to incorrect temperature and curing
time.
Incorrect temperature and curing time may cause the
installation to fail.
u
Observe the temperature and curing time.
14. Heat up the front area (2) to 120 °C. Ensure that the maximum allowable
temperature of the substrate is not exceeded.
15. Min. Wait for 30 minutes.
For exact curing time see data sheet of the adhesive.
16. Switch off and remove the heating.
17. Wait for 15 minutes so that sensor and substrate have cooled down.
18. Remove adhesive tape or temporary attachment of the sensor.
P
Sensor is attached.
Checking the Installation
Checking the installation:
1. Check that adhesive has been squeezed out at the edges of the sensor.
30 / 42 4-10_1.3.x_4.0_fos4Strain expert-en-us © fos4X 2019
