Foscam C1 User Manual

38

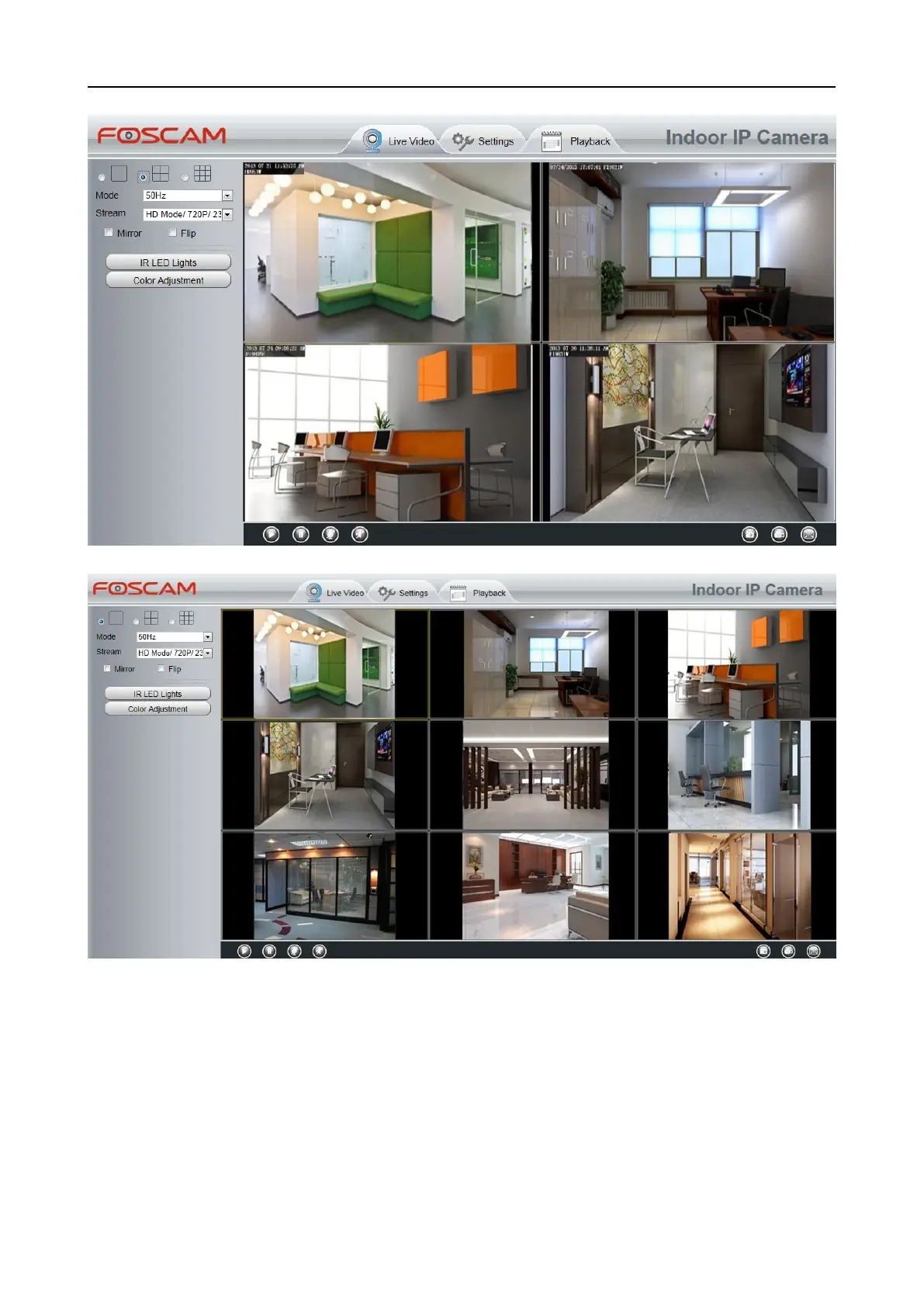

Back to Surveillance Windows, and click Four Windows option, you will see four cameras you added.
Add cameras in WAN
If you want to view all cameras via the internet(remote computer), you will need to add them using DDNS
domain name. Firstly, make sure all of the cameras you added can be accessed through the internet.
(The way to configure DDNS is in chapter 4.4.4)
Login to the first camera using a DDNS domain name and port.

Foscam C1 Specifications

General

Type	IP security camera
Placement supported	Indoor
Connectivity technology	Wired & Wireless
Form factor	-
Mounting type	Desk/Ceiling
Product color	Black
Maximum resolution	1280 x 720 pixels
Video formats supported	H.264
Minimum illumination	0 lx
Sensor type	CMOS
Optical sensor size	1/4 \
Motion sensor	Yes
Built-in HDD	No
Compatible memory cards	MicroSD (TransFlash)
Night vision distance	8 m
Wi-Fi standards	802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11d, IEEE 802.11g, IEEE 802.11n
Ethernet interface type	Fast Ethernet
Ethernet LAN (RJ-45) ports	1
Power consumption (typical)	3 W
Sustainability certificates	RoHS
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	20 - 85 %

Weight and Dimensions

Depth	120 mm
Width	70 mm
Weight	170 g
