Foscam C1 User Manual

48
If the camera cannot be accessed, please make sure the port forwarding is succeed.

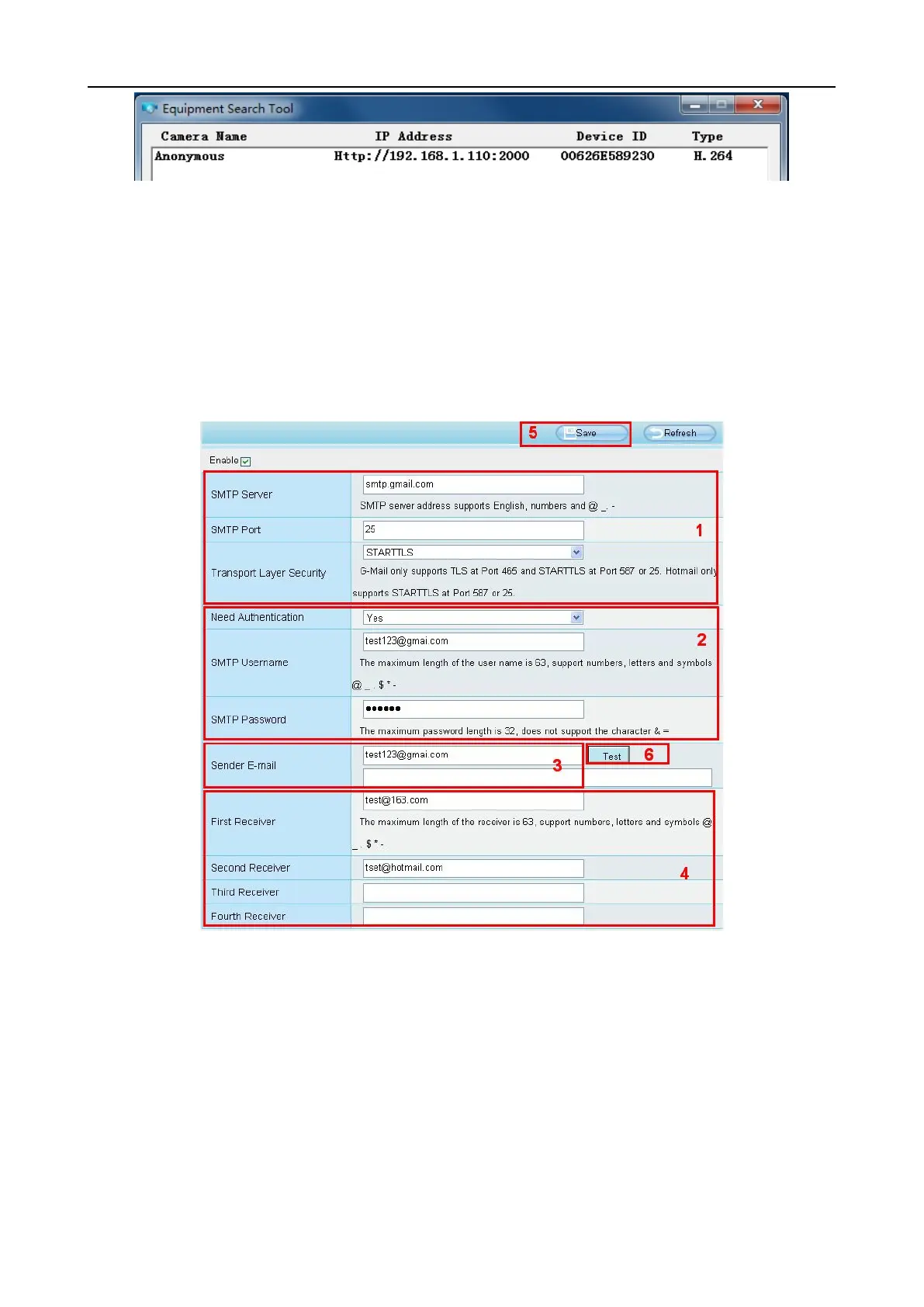

4.4.7 Mail Settings
If you want the camera to send emails when motion has been detected, here Mail will need to be
configured.
1---- SMTP Server/ Port /Transport Layer Security Enter SMTP server for sender. SMTP port is
usually set as 25. Some SMTP servers have their own port, such as 587 or 465, and Transport Layer
Security usually is None. If you use Gmail, Transport Layer Security must be set to TLS or STARTTLS
and SMTP Port must be set to 465 or 25 or 587, which port you choose should be decided by which
Transport Layer Security you select.
2---- SMTP Username/ password ID account and password of the sender email address
3---- Sender E-mail Mailbox for sender must support SMTP
4---- Receiver Mailbox for receiver need not support SMTP,you can set 4 receivers
5---- Save Click Save to take effect
6---- Test Click Test to see if Mail has been successfully configured.

Foscam C1 Specifications

General

Type	IP security camera
Placement supported	Indoor
Connectivity technology	Wired & Wireless
Form factor	-
Mounting type	Desk/Ceiling
Product color	Black
Maximum resolution	1280 x 720 pixels
Video formats supported	H.264
Minimum illumination	0 lx
Sensor type	CMOS
Optical sensor size	1/4 \
Motion sensor	Yes
Built-in HDD	No
Compatible memory cards	MicroSD (TransFlash)
Night vision distance	8 m
Wi-Fi standards	802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11d, IEEE 802.11g, IEEE 802.11n
Ethernet interface type	Fast Ethernet
Ethernet LAN (RJ-45) ports	1
Power consumption (typical)	3 W
Sustainability certificates	RoHS
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	20 - 85 %

Weight and Dimensions

Depth	120 mm
Width	70 mm
Weight	170 g
