Foscam C1 User Manual

4
1.4 Physical Description
C1

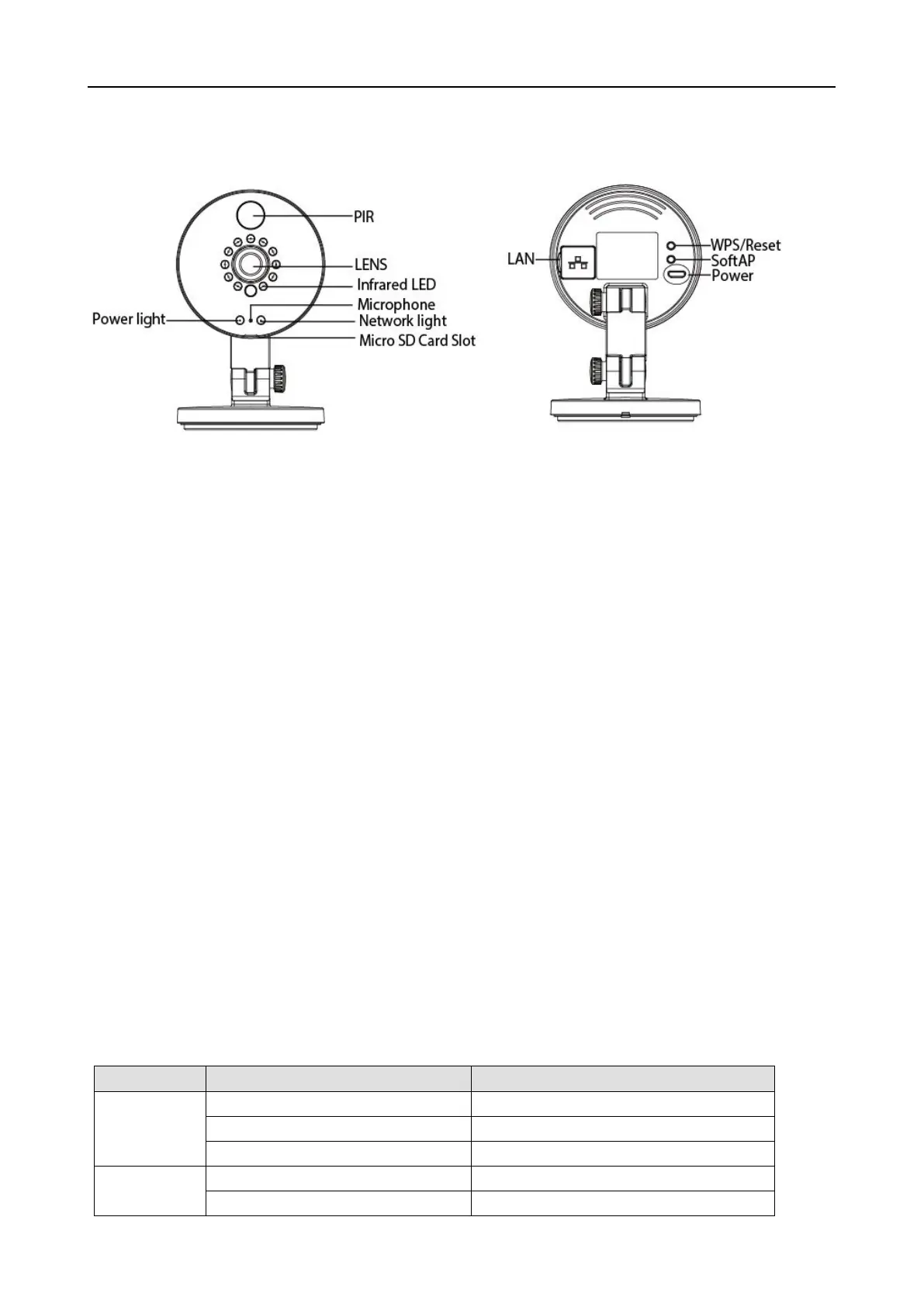

Front panel Rear panel
Front panel:
 PIR:The PIR ( Passive Infrared ) is electronic devices which are used in some security alarm
systems to detect motion of an infrared emitting source, usually a human body.
 LENS: Fixed focus lens.
 Infrared LED: Infrared LEDs for night vision.
 Microphone: Built-in microphone.
 Micro SD Card slot: Supports up to 32GB SD card for storing the video.
Rear panel:
 Power Light: If the power supply works fine, the light will be on.
 LAN: 10/100 Mbps RJ-45 port for wired connection
 SoftAP: Press the SoftAP button for more than 2 seconds. The Network light indicator begins to
twinkle every 0.1 seconds.
 WPS/Reset
 WPS: Push both WPS/Reset button on the camera and wireless router within 1 minute, the
camera will connect to the wireless router automatically, in WPS process, the Network light will
blink every 0.4 seconds;
 Reset: Push and hold the WPS/Reset button for more than 10 seconds to set the camera to
factory default, the Power light will blink every 0.4 seconds;
 Power: DC 5V/1A Power supply.
The flashing status of the Power light and Network light are shown in the following table.
Light
Flashing Status
Description
Power light
off
The power don't work properly.
on
The power supply works fine.
Flashing every 0.4 seconds
Reset to take effect
Network light
off
No Wireless connection
Constant Flash
Wired connection

Foscam C1 Specifications

General

Type	IP security camera
Placement supported	Indoor
Connectivity technology	Wired & Wireless
Form factor	-
Mounting type	Desk/Ceiling
Product color	Black
Maximum resolution	1280 x 720 pixels
Video formats supported	H.264
Minimum illumination	0 lx
Sensor type	CMOS
Optical sensor size	1/4 \
Motion sensor	Yes
Built-in HDD	No
Compatible memory cards	MicroSD (TransFlash)
Night vision distance	8 m
Wi-Fi standards	802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11d, IEEE 802.11g, IEEE 802.11n
Ethernet interface type	Fast Ethernet
Ethernet LAN (RJ-45) ports	1
Power consumption (typical)	3 W
Sustainability certificates	RoHS
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	20 - 85 %

Weight and Dimensions

Depth	120 mm
Width	70 mm
Weight	170 g
