Foscam C1 User Manual

49

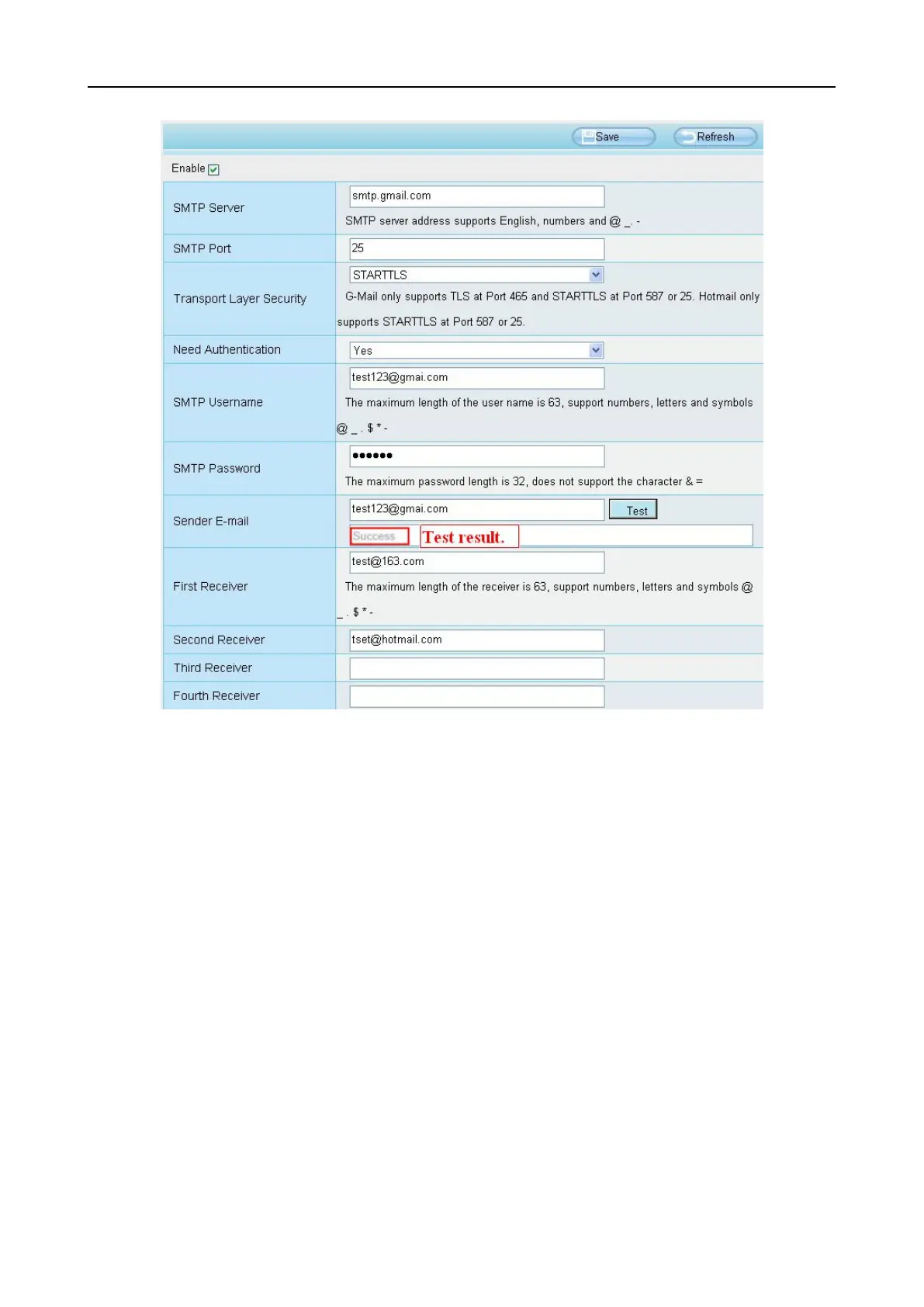

Click Test to see if Mail has been successfully configured.
If the test success, you can see the Success behind the Test, at the same time the receivers will receive
a test mail.
If the test fails with one of the following errors after clicking Test, verify that the information you entered
is correct and again select Test .
1) Cannot connect to the server
2) Network Error. Please try later
3) Server Error
4) Incorrect user or password
5) The sender is denied by the server. Maybe the server need to authenticate the user, please check it
and try again
6) The receiver is denied by the server. Maybe because of the anti-spam privacy of the server
7) The message is denied by the server. Maybe because of the anti-spam privacy of the server
8) The server does not support the authentication mode used by the device
4.4.8 FTP Settings
If you want to upload record files and images to your FTP server，you can set FTP Settings.

Foscam C1 Specifications

General

Type	IP security camera
Placement supported	Indoor
Connectivity technology	Wired & Wireless
Form factor	-
Mounting type	Desk/Ceiling
Product color	Black
Maximum resolution	1280 x 720 pixels
Video formats supported	H.264
Minimum illumination	0 lx
Sensor type	CMOS
Optical sensor size	1/4 \
Motion sensor	Yes
Built-in HDD	No
Compatible memory cards	MicroSD (TransFlash)
Night vision distance	8 m
Wi-Fi standards	802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11d, IEEE 802.11g, IEEE 802.11n
Ethernet interface type	Fast Ethernet
Ethernet LAN (RJ-45) ports	1
Power consumption (typical)	3 W
Sustainability certificates	RoHS
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	20 - 85 %

Weight and Dimensions

Depth	120 mm
Width	70 mm
Weight	170 g
