Foscam C1 User Manual

55
2 Capture interval:The interval time between two captures.
3 Select the capture time
 Capture anytime
Click the black button up the MON, you will see all time range turn red. When something moving in
the detection area at anytime, the camera will capture.
 Specify an capture schedule
Click the week day words, the corresponding column will be selected. For example, click TUE, the
all column of TUE turns to red, that means during Tuesday whole day, the camera will capture.
 Press the left mouse and drag it on the time boxes, you can select the serial area,
4 Click Save button to take effect.

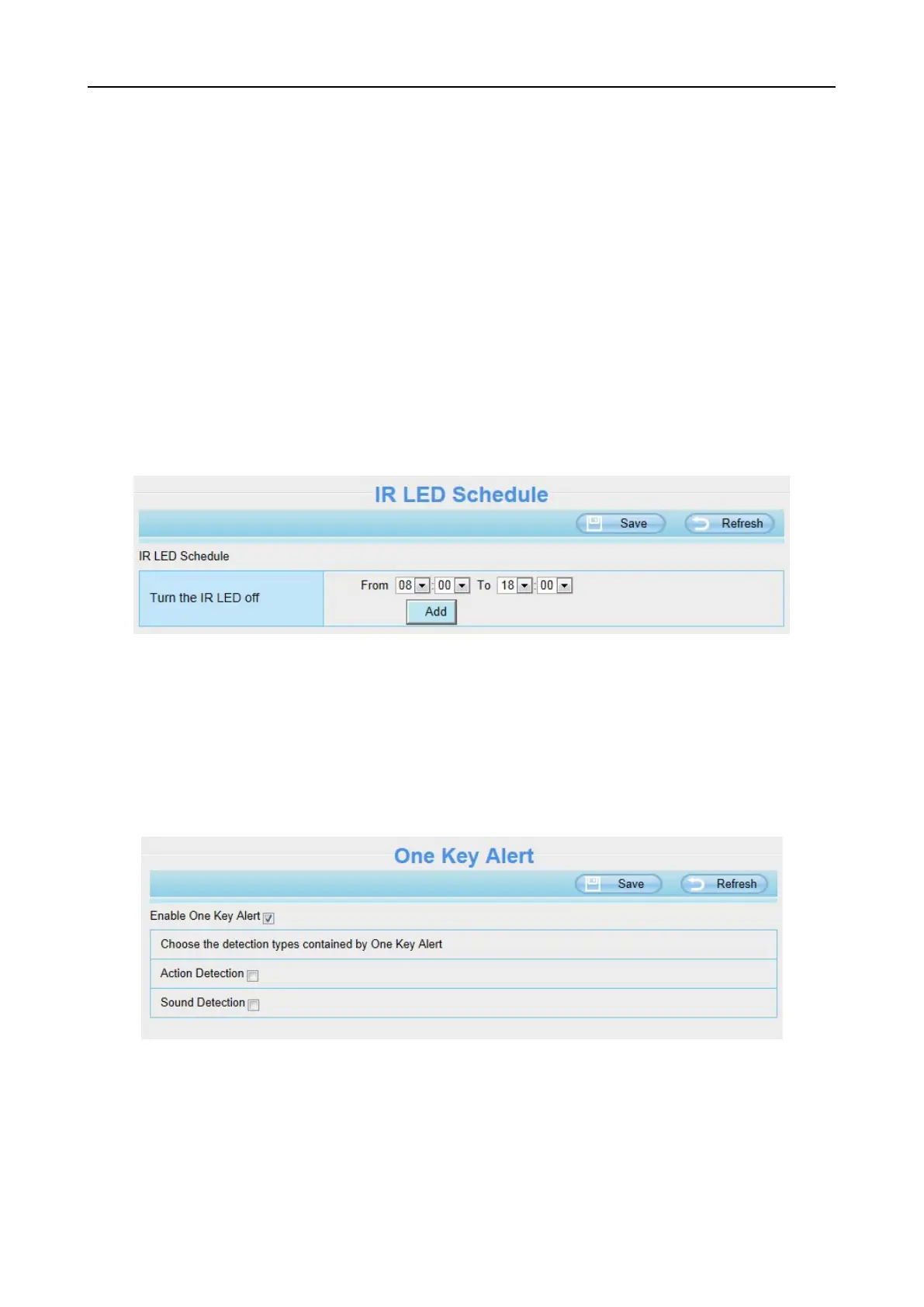

4.5.4 IR LED Schedule
On this page you can set the schedule time for switching IR LED lights. When parameter Mode is set to
the Schedule on the Live Video window, at these schedule time, the IR LED lights will be turned off.
4.6 Detector
4.6.1 One Key Alert(Only R2, C2)
On this page, you can turn on or off the alarm function you need.
4.6.2 Action Detection
IP Camera supports Action Detection Alarm, when the people has been detected, the IP Camera will
make a alarm.

Foscam C1 Specifications

General

Type	IP security camera
Placement supported	Indoor
Connectivity technology	Wired & Wireless
Form factor	-
Mounting type	Desk/Ceiling
Product color	Black
Maximum resolution	1280 x 720 pixels
Video formats supported	H.264
Minimum illumination	0 lx
Sensor type	CMOS
Optical sensor size	1/4 \
Motion sensor	Yes
Built-in HDD	No
Compatible memory cards	MicroSD (TransFlash)
Night vision distance	8 m
Wi-Fi standards	802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11d, IEEE 802.11g, IEEE 802.11n
Ethernet interface type	Fast Ethernet
Ethernet LAN (RJ-45) ports	1
Power consumption (typical)	3 W
Sustainability certificates	RoHS
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	20 - 85 %

Weight and Dimensions

Depth	120 mm
Width	70 mm
Weight	170 g
