Foscam C1 User Manual

56

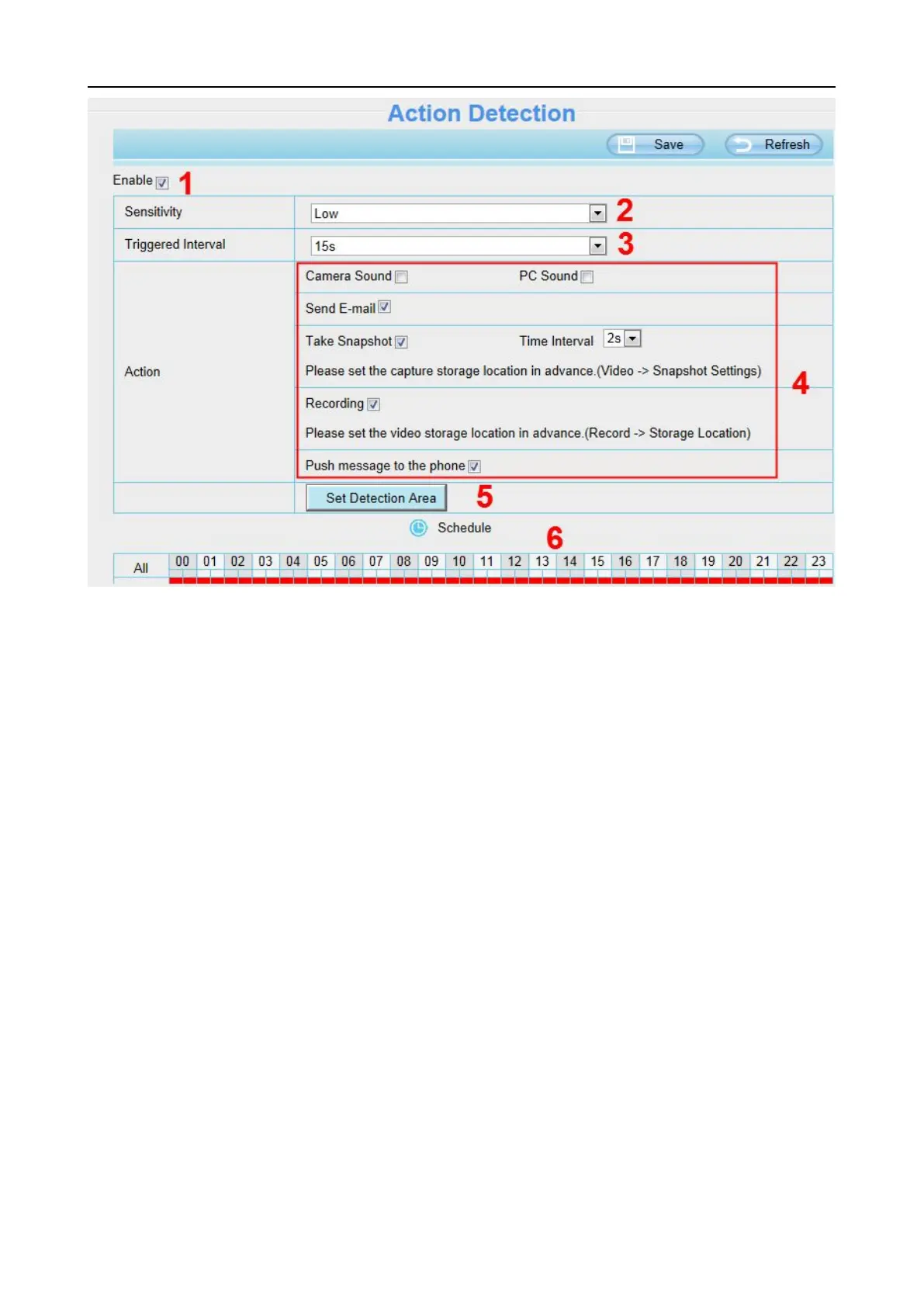

Step 1: Enable Action detection function.
Step 2: Sensitivity---- It supports five modes: Lowest, Lower, Low, Medium and High. The higher the
sensitivity, the camera will be more easily alarmed. Select one motion sensitivity.
Step 3: Trigger interval--- The interval time between two motion detection.
Step 4:There are some alarm indicators:
A Camera Sound and PC Sound
If the camera has connected with a speaker or other audio output device, if you select Camera Sound or
PC Sound, when the motion has been detected, the people around the camera will hear beep alarm
sound.
B Send E-mail
If you want to receive alarm emails when motion is detected, you must select Send E-mail and set Mail
Settings first.
C Take Snapshot
If you select this checkbox, when the motion has been detected, the camera will snap the live view
window as a still picture and load it to the FTP. Make sure you have set FTP and set FTP as the storage
path in Video->Snapshot settings panel.

Foscam C1 Specifications

General

Type	IP security camera
Placement supported	Indoor
Connectivity technology	Wired & Wireless
Form factor	-
Mounting type	Desk/Ceiling
Product color	Black
Maximum resolution	1280 x 720 pixels
Video formats supported	H.264
Minimum illumination	0 lx
Sensor type	CMOS
Optical sensor size	1/4 \
Motion sensor	Yes
Built-in HDD	No
Compatible memory cards	MicroSD (TransFlash)
Night vision distance	8 m
Wi-Fi standards	802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11d, IEEE 802.11g, IEEE 802.11n
Ethernet interface type	Fast Ethernet
Ethernet LAN (RJ-45) ports	1
Power consumption (typical)	3 W
Sustainability certificates	RoHS
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	20 - 85 %

Weight and Dimensions

Depth	120 mm
Width	70 mm
Weight	170 g
