Foscam C1 User Manual

50

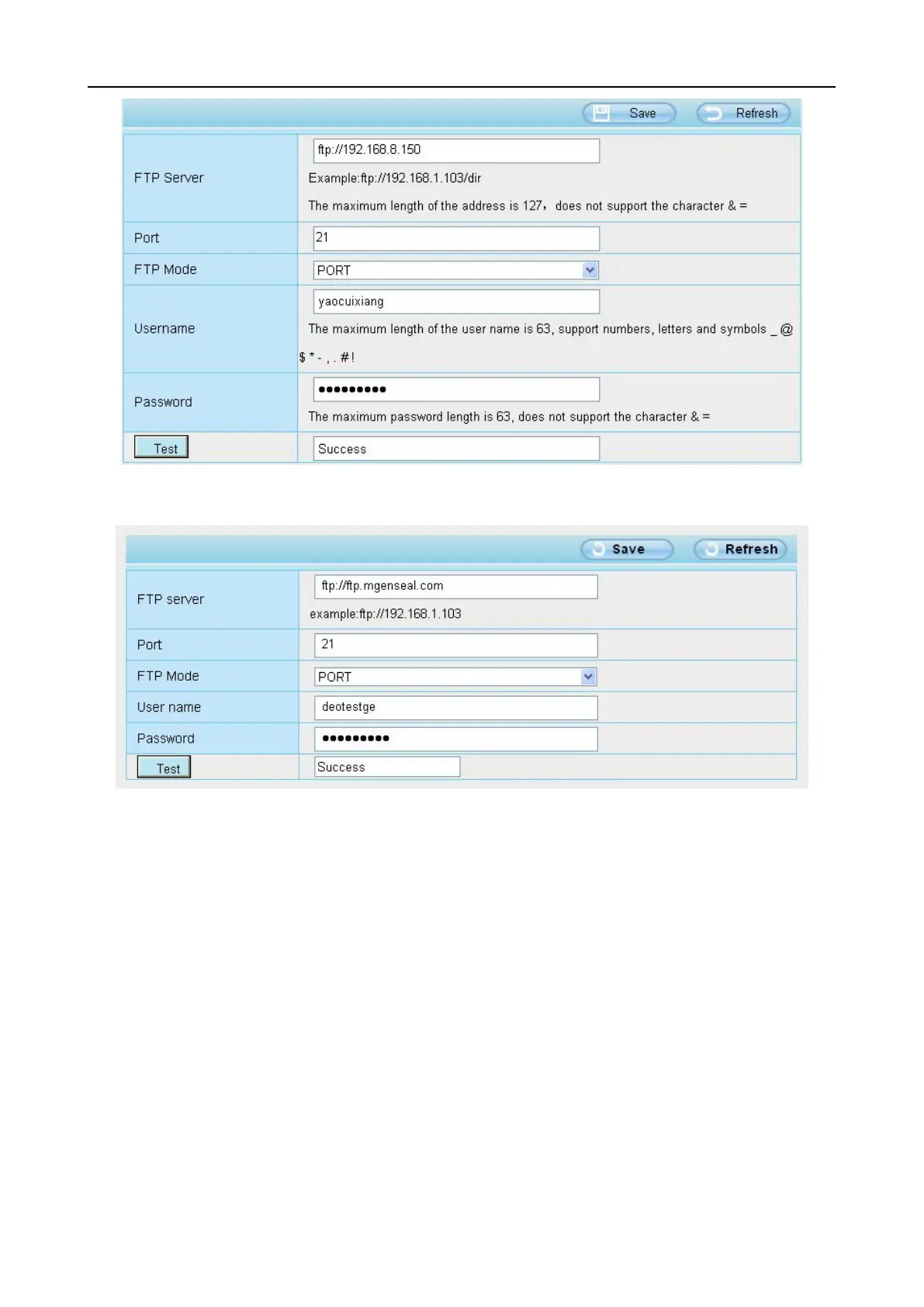

Figure a
Figure b
FTP server: If your FTP server is located on the LAN, you can set as Figure a.
If you have an FTP server which you can access on the internet, you can set as Figure b.
Port: Default is port 21. If changed, external FTP client program must change the server connection port
accordingly.
FTP Mode: Here supports two modes: PORT and PASV.
Username/password: The FTP account and password.
Click Save to take effect.
Click Test to see if FTP has been successfully configured.
4.4.9 P2P
Access the IP Camera by Smart Phone (Android or iOS operating system)
First of all, you must open the P2P function of the IP Camera at “Settings --> Network --> P2P.”

Foscam C1 Specifications

General

Type	IP security camera
Placement supported	Indoor
Connectivity technology	Wired & Wireless
Form factor	-
Mounting type	Desk/Ceiling
Product color	Black
Maximum resolution	1280 x 720 pixels
Video formats supported	H.264
Minimum illumination	0 lx
Sensor type	CMOS
Optical sensor size	1/4 \
Motion sensor	Yes
Built-in HDD	No
Compatible memory cards	MicroSD (TransFlash)
Night vision distance	8 m
Wi-Fi standards	802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11d, IEEE 802.11g, IEEE 802.11n
Ethernet interface type	Fast Ethernet
Ethernet LAN (RJ-45) ports	1
Power consumption (typical)	3 W
Sustainability certificates	RoHS
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	20 - 85 %

Weight and Dimensions

Depth	120 mm
Width	70 mm
Weight	170 g
