Floppy Disk Drive Connector : FLOPPY1
This motherboard includes a standard oppy disk
drive(FDD) connector, supporting 360KB, 720KB,
1.2MB, 1.44MB, and 2.88MB FDDs.
USB Connectors : F_USB1/2
In addition to the eight USB ports on the rear panel,
this product also provides two 10-pin USB connec-
tors on its motherboard. By connecting through USB
cables with them, user can quickly expand another
four USB ports on the front panel .
IDE Connector : PIDE1
With the provided Ultra DMA IDE ribbon cable, you
can connect to any IDE type of hard disk and CD/
DVD ROM/RW drive.
We recommend you using an 8-pin ATX 12V power supply. If
you are using a 4-pin power supply, you need to align the ATX
power connector according to the picture on the right.
C
A
U
T
I
O
N
!

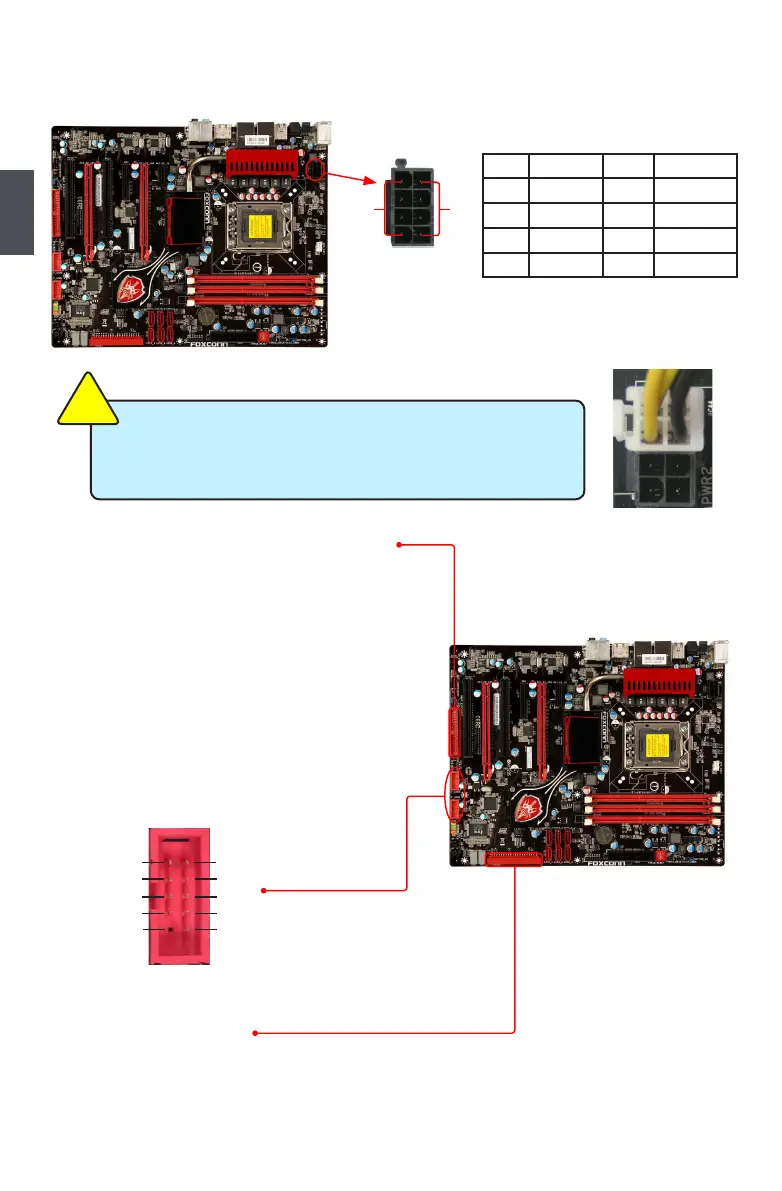

8-pin ATX 12 V Power Connector : PWR1
The 8-pin ATX 12V power supply connects to PWR1 and provides power to the CPU.
Pin # Denition Pin # Denition
1 GND 5 +12V
2 GND 6 +12V
3 GND 7 +12V
4 GND 8 +12V
1
4
5
8
PWR1
GND+12V
Connect a 4-pin
power plug
NC
GND
VCC
D+
D-
D+
GND
D-
VCC
EMPTY
1 2
10
9
F_USB 1/2
