17
2

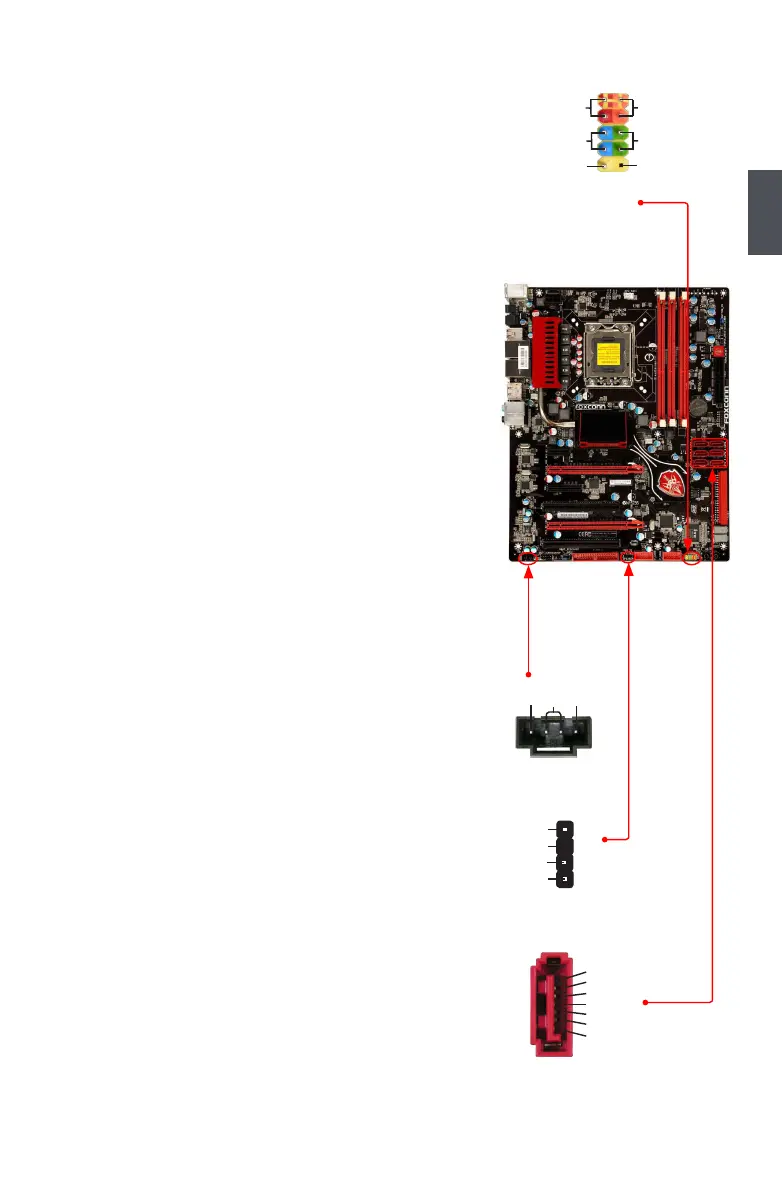

Front Panel Connector : FP1
This motherboard includes one connector for connecting the
front panel switch and LED Indicators.
Hard Disk LED Connector (HDD-LED)
Connect to the chassis front panel IDE indicator LED. It
indicates the active status of the hard disks. This 2-pin
connector is directional with +/- sign.
Reset Switch (RESET-SW)
Attach the connector to the Reset switch on the front
panel of the case; the system will restart when the switch
is pressed.
Power LED Connector (PWR-LED)
Connect to the power LED indicator on the front panel of
the chassis. The Power LED indicates the system’s status.
When the system is in operation (S0 status), the LED is
on. When the system gets into sleep mode (S1) , the LED
is blinking; When the system is in S3/S4 sleep state or
power off mode (S5), the LED is off. This 2-pin connector
is directional with +/- sign.
Power Switch Connector (PWR-SW)
Connect to the power button on the front panel of the
chassis. Push this switch allows the system to be turned
on and off rather than using the power supply button.
Audio Connector : CD_IN
CD_IN is a Sony standard audio connector, it can be connected
to a CD/DVD-ROM drive through a CD/DVD audio cable.
Speaker Connector : SPEAKER
The speaker connector is used to connect speaker of the
chassis.
Serial ATA Connectors : SATA_1/2/3/4/5/6
The Serial ATA connector is used to connect with SATA Hard
Disk or CD devices which support this feature. The current Se-
rial ATA II interface allows up to 300MB/s data transfer rate.
NC
SPKJ
EMPTY
SPEAKER
SPKJ
1
2
3
4
HDD-LED
RESET-SW
NC
+
-
PWR-SW
+
-
PWR-LED
EMPTY
1
2
10
9
FP1
CD_IN
CD_L GND CD_R
1
GND
TX+
TX-
GND
RX-
RX+
GND
1
SATA_1/2/3/4/5/6
