Foxconn H67MP series User Manual

1
4

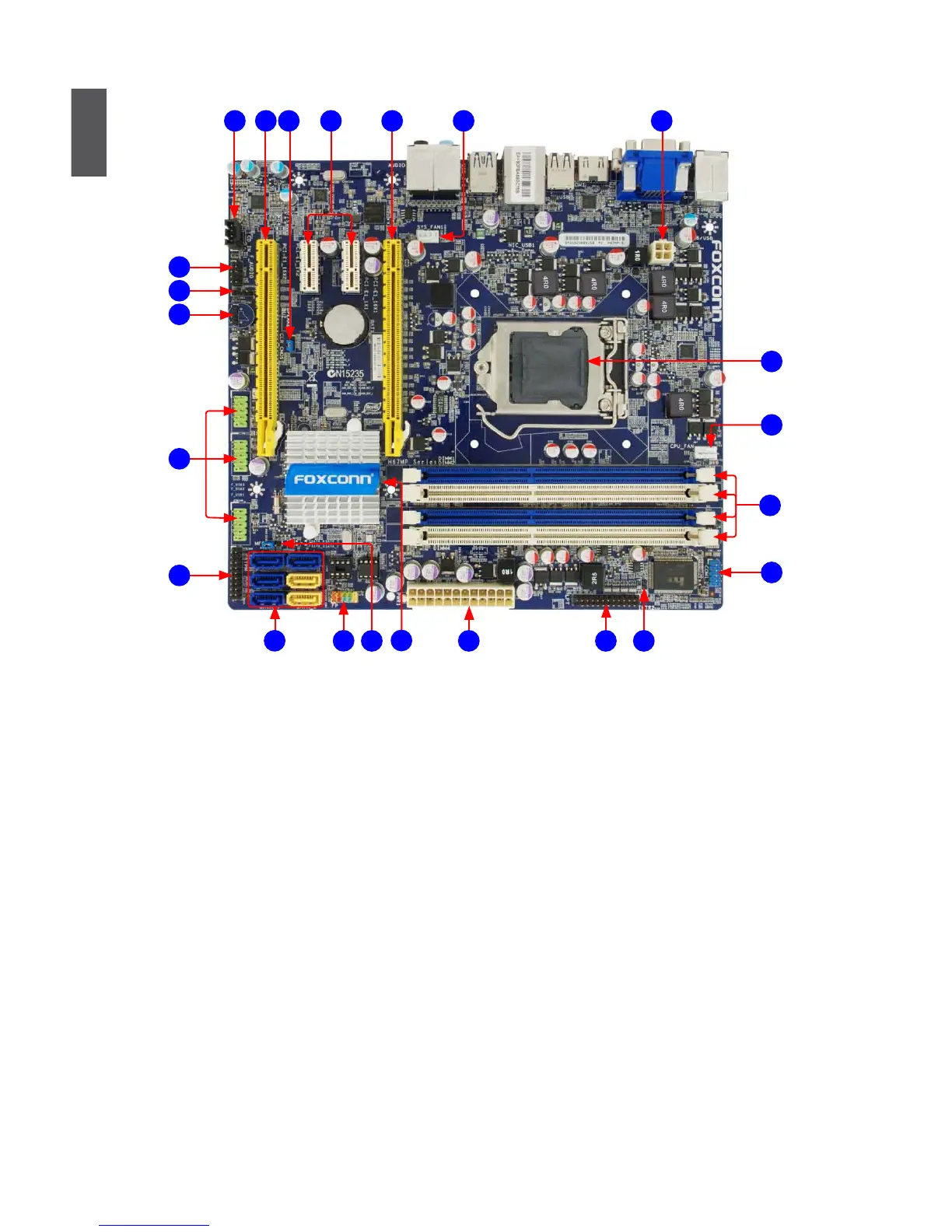

1-2 Layout
Note : The above motherboard layout is for reference only, please refer to the physical
motherboard for detail.
1.4-pinATX12VPowerConnector
2. SYS_FAN1 Header
3. PCI Express x16 Slot
4.PCI Express x1 Slot
5.Clear CMOS Jumper
6. PCI Express x16 Slot
 (OnlysupportPCIExpressx4speed)
7. CD_IN Connector
8. Front Audio Connector
9. SPDIF_OUT Connector
10.SpeakerConnector
11. Front USB Connectors
12. TPM Connector
13. SATA Connectors
14.FrontPanelConnector
15.MFGJumper
16. Chipset: Intel
®
H67
17.24-pinATXPowerConnector
18. LPT Connector
19. INTR Connector
20.COM2Connector
21. DDR3 DIMM Slots
22. CPU_FAN Header
23.LGA1155CPUSocket
1
8
2
17
3
7
6
4
9
11
12
13
18
20
22
23
14
15
21
5
16
10
19

Foxconn H67MP series Specifications

General

Brand	Foxconn
Model	H67MP series
Category	Motherboard
Language	English
