Foxconn H67MP series User Manual

2
13

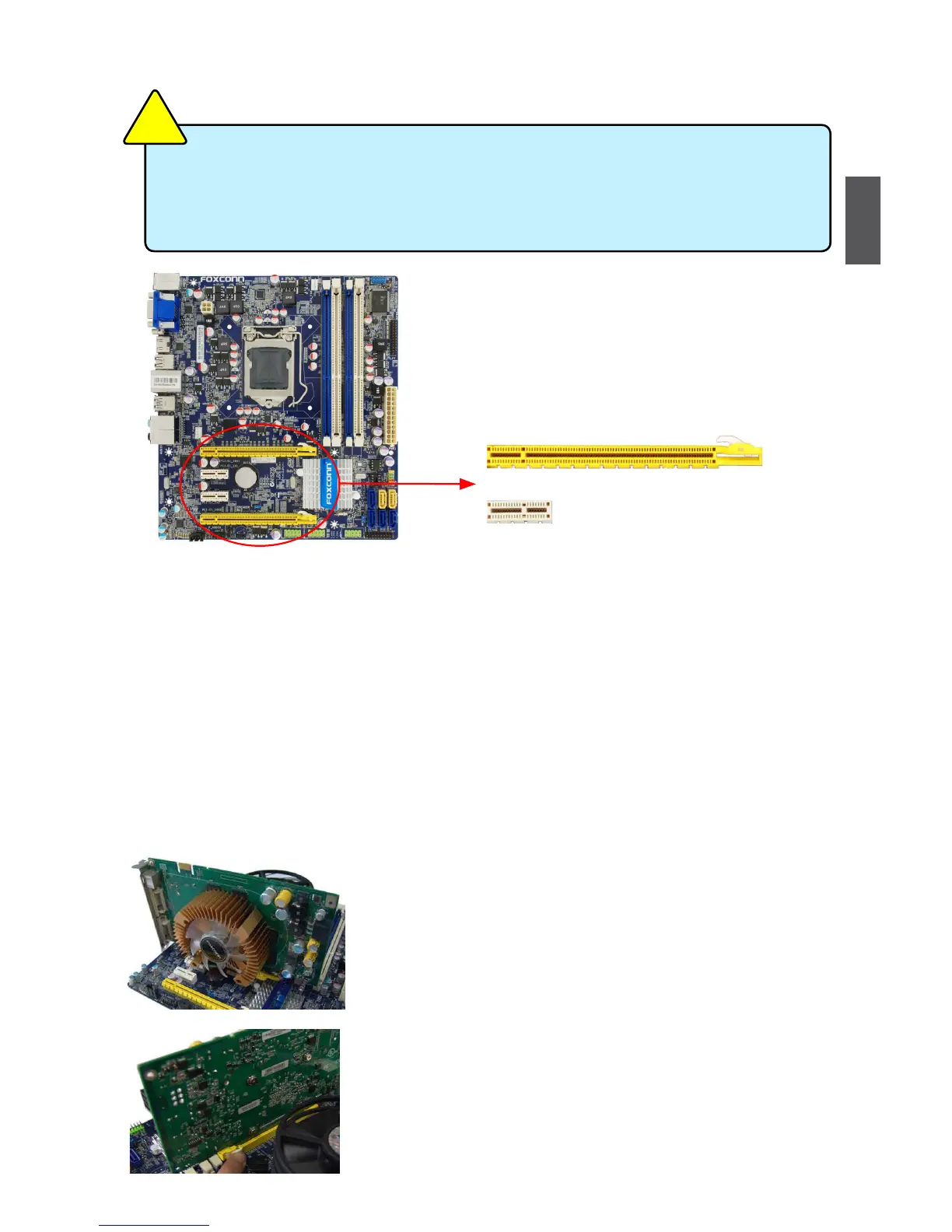

2-3 Install an Expansion Card
Follow the steps below to correctly install your expansion card in the expansion slot.
1. Locate an expansion slot that supports your card. Remove the metal slot cover from the chas-
sis back panel.
2. Align the card with the slot, and press down on the card until it is fully seated in the slot.
3. Make sure the metal contacts on the card are completely inserted into the slot.
4.Securethecard'smetalbrackettothechassisbackpanelwithascrew.
5.Afterinstallingallexpansioncards,replacethechassiscover.
6. Turn on your computer. If necessary, go to BIOS Setup to make any required BIOS changes for
your expansion card(s).
7. Install the driver provided with the expansion card in your operating system.
Installing and Removing a PCI Express x16 Graphics Card :
• Installing a Graphics Card:
Gently insert the graphics card into the PCI Express x16 slot.
Make sure the graphics card is locked by the latch at the end of
the PCI Express x16 slot.
• Removing the Card:
Push the latch at the end of the PCI Express x16 slot to release
the card and then pull the card straight up from the slot.
■ Makesurethemotherboardsupportstheexpansioncard.Carefullyreadthemanual
that came with your expansion card.
■ Alwaysturnoffthecomputerandunplugthepowercordfromthepoweroutletbefore
installing an expansion card to prevent hardware damage.
C
A
U
T
I
O
N
!
PCI Express x1
PCI Express x16
(PCI-E1_16X2onlysupportPCIExpressx4speed)
