Foxconn H67MP series User Manual

1
5

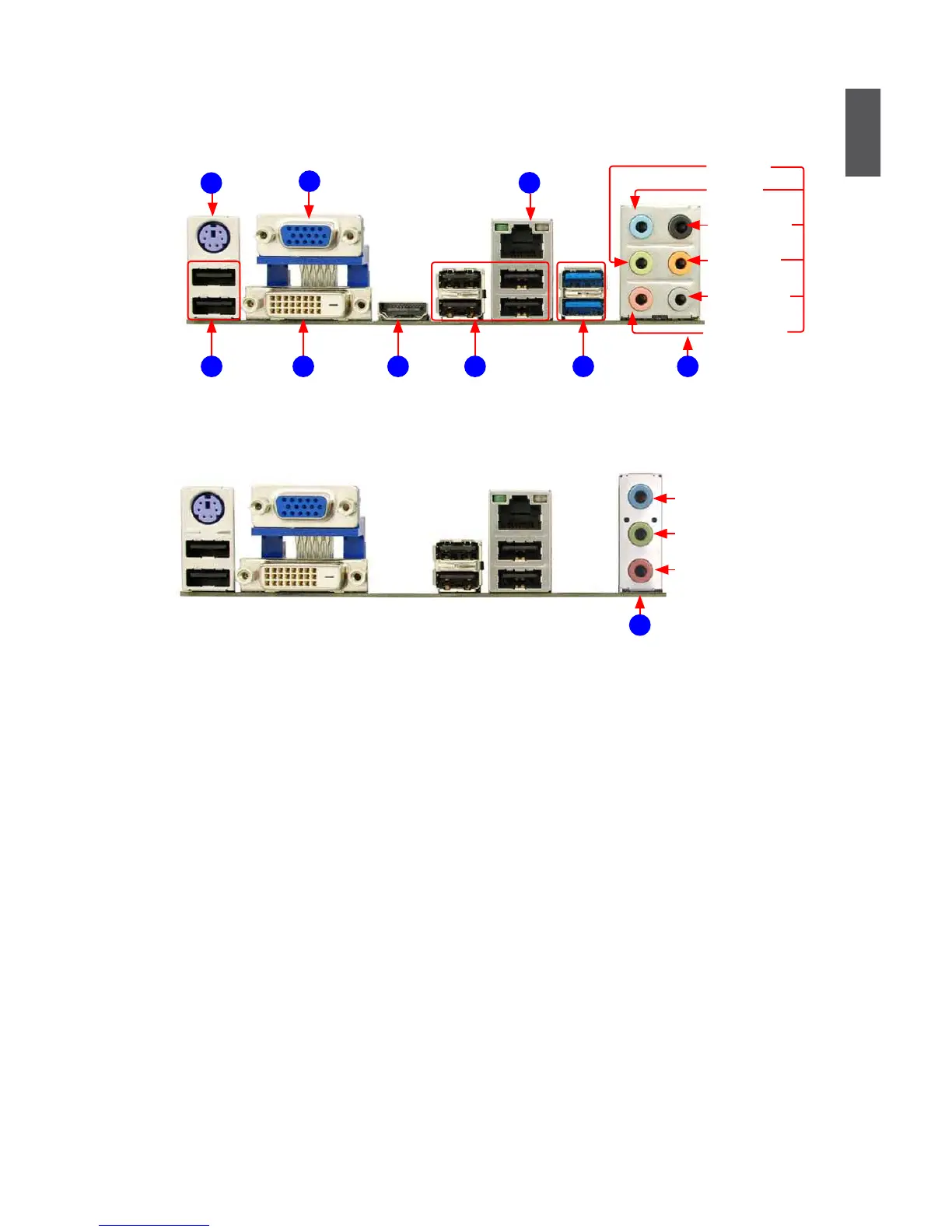

1-3 Back Panel Connectors
Back Panel of 8 Channel
1. PS/2 Port
Use the PS/2 port to connect a PS/2 keyboard.
2. USB 2.0 Ports
 TheUSBportsupportstheUSB2.0/1.1specication.UsethisportforUSBdevicessuchasan
 USBkeyboard/mouse,USBprinter,USBashdriveandetc.
3. VGA Port
To connect with external display devices, such as monitor or LCD display.
4. DVI-D Port
 TheDVI-DportsupportsDVI-Dspecication.ConnectamonitorthatsupportsDVI-D
connection to this port.
5. HDMI Port
 TheHDMI(High-DenitionMultimediaInterface)providesanall-digitalaudio/videointerface
to transmit the uncompressed audio/video signals and is HDCP compliant. Connect the HDMI
audio/video device to this port. The HDMI Technology can support a maximum resolution of
 1920x1080pbuttheactualresolutionssupporteddependonthemonitorbeingused.
6. USB 3.0 Ports
 TheUSBportsupportstheUSB3.0/2.0/1.1specication.UsethisportforUSBdevicessuch
 asanUSBkeyboard/mouse,USBprinter,USBashdriveandetc.YouneedtoinstalltheUSB
 3.0driverintheDriverCDbeforeusingit.
LAN Port
PS/2 Port
Audio Ports
Line Out
Microphone In
Subwoofer
Rear Speaker
Side Speaker
Line In
3
1
VGA Port
7
8
USB2.0Ports
52 4
DVI-D Port
2 6
HDMI Port USB3.0Ports
(Only for H67MP-S)
USB2.0Ports
Audio Ports
Line Out
Microphone In
Line In
8
Back Panel of 6 Channel
