Foxconn Renaissance - Back Panel Connectors

1
4

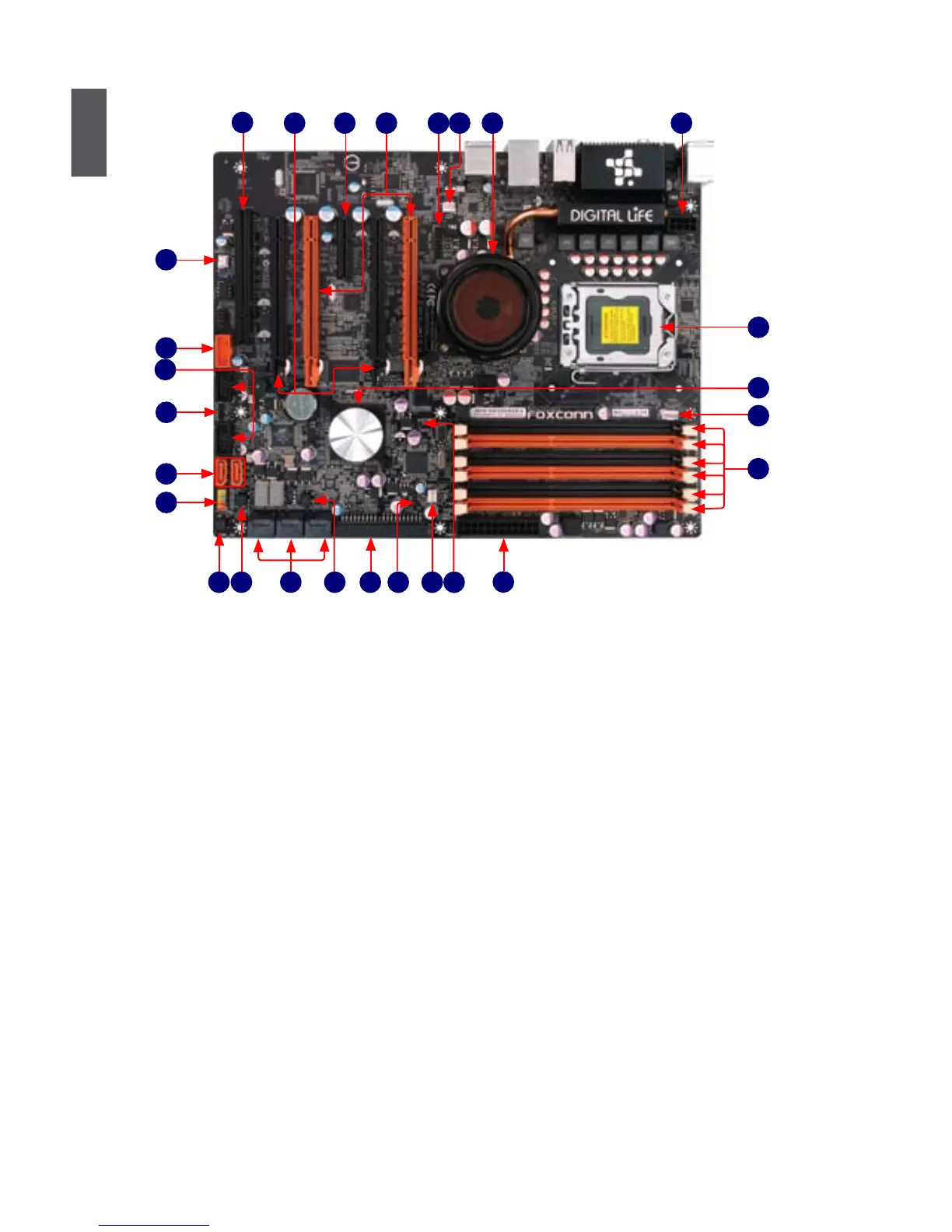

1-2 Layout
Note : The above motherboard layout is for reference only, please refer to the physical
motherboard for detail.
1. 8-pin ATX 12V Power Connector
2. North Bridge: Intel
®
X58
3. SYS_FAN2 Header
4. HDA-DH Header
5. PCI Express Slots (x16, Orange)
6. PCI Express x4 Slot
7. PCI Express Slots (x8, Black)
8. PCI Slot
9. SYS_FAN1 Header
10. 1394a connector
11. Front USB Connectors
12. Speaker Connector
13. Serial-Attached SCSI Connectors
14. Front Panel Connector
15. Power On Button
16. Reset Button
17. SATA Connectors
18. Clear COMS Button
19. IDE Connector
20. IrDA Connector
21. SYS_FAN3 Header
22. Chassis Intrusion Alarm Header
23. 24-pin ATX Power Connector
24. DDR3 DIMM Slots
25. CPU_FAN1 Header
26. South Bridge: Intel
®
ICH10R
27. LGA 1366 CPU Socket
1
10
19
9
23
27
4
8
14
25
24
17
1815 16 21 22
13
12
11
3
20
6 2
26
