FPG Inline GN Series - Model: IN-GNC04; Model: IN-GNC05

52 pages

Save Page as PDF

To Next Page

To Previous Page

Part No.21967 Rev. M June 2017 - 38 - Refrigerated Well GN Series

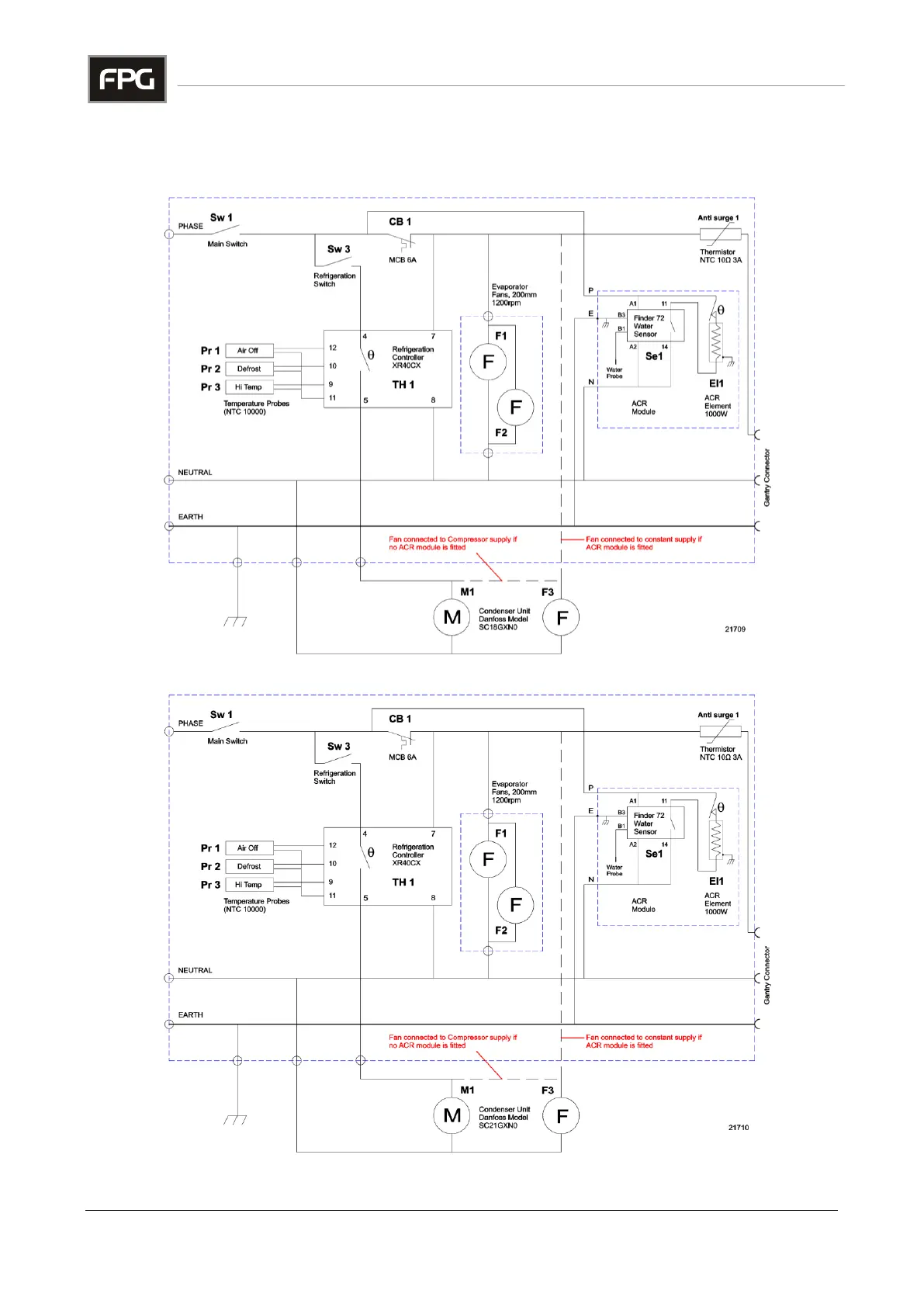

ELECTRICAL WIRING DIAGRAMS, Continued

Model: IN-GNC04

4 Bay Refrigerated Drop-in Well Assembly

Model: IN-GNC05

5 Bay Refrigerated Drop-in Well Assembly
