Framery Q (UL) Meeting Maggie

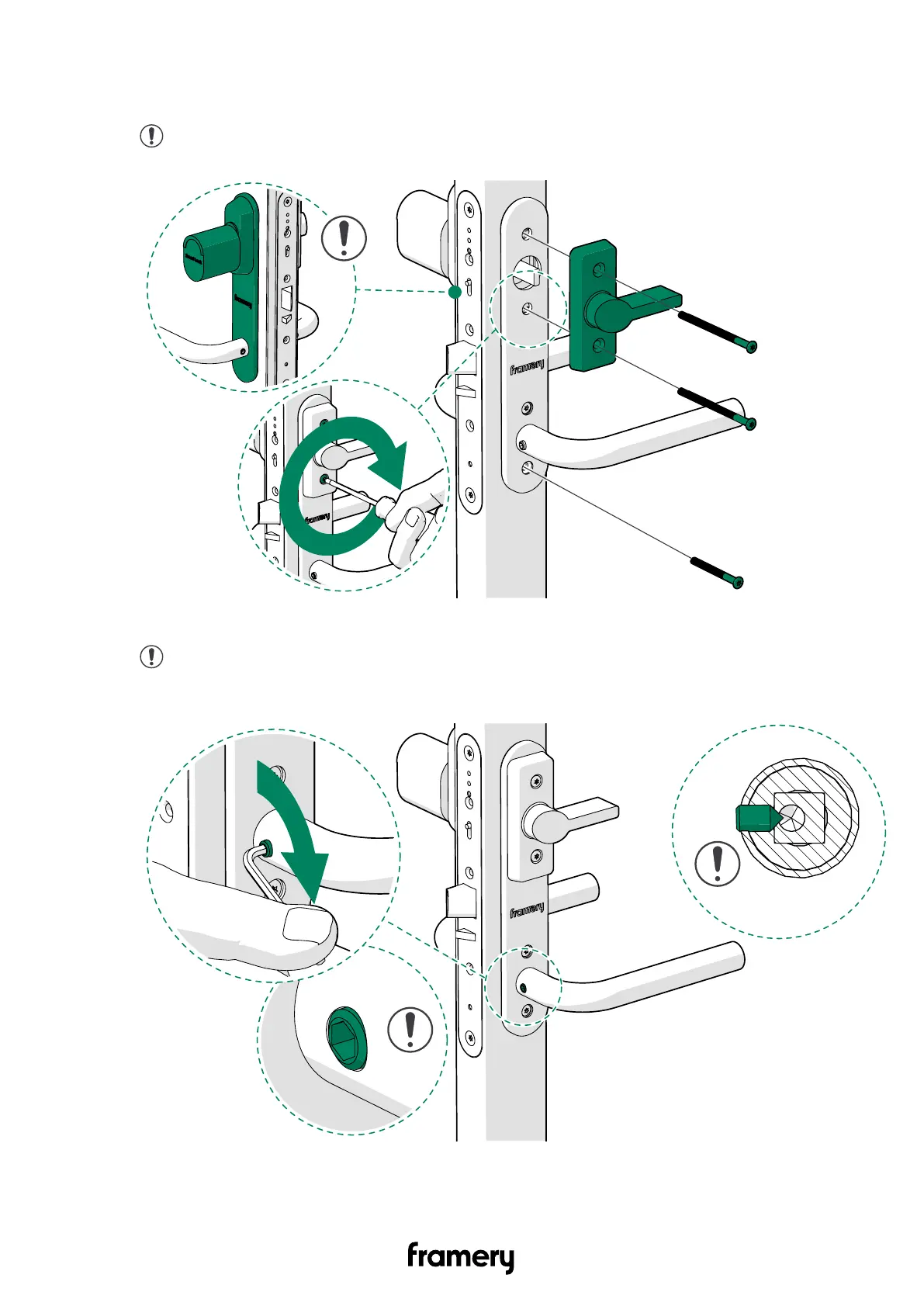

12. Install the thumb turn with the previously cut M5x61 screws (2 pcs), and the handle
plate with the remaining M5x32 screw from inside.
Note: Check the straightness of the cover plate outside the door before fully
tightening the thumb turn screws.
13. Tighten the set screw on the inside handle.
Note: Tighten the set screw. The resistance increases steadily until the screw
pierces the spindle. In the final position, the head of the set screw is slightly
above the handle surface.
Installation instructions
