Framery Q (UL) Meeting Maggie

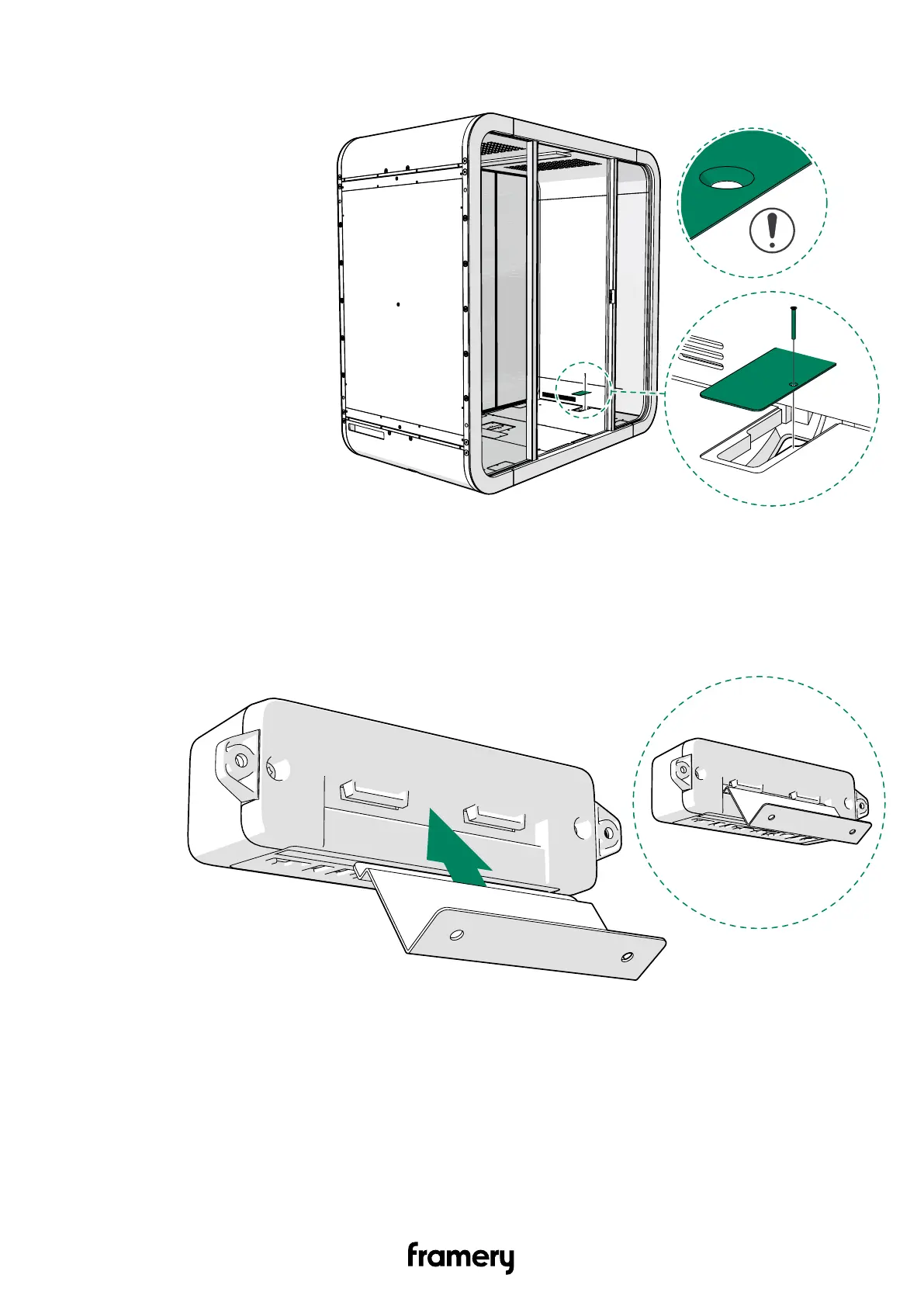

4.
Reinstall the floor cover plate with one 4x20 screw
.
1
1.5 Install the control unit
1.
Insert the control unit bracket into the back of the control unit.
86
Installation instructions
info@frameryacoustics.com
85
87
