Framery Q (UL) Meeting Maggie
7.5 Install the booking system bracket (optional)

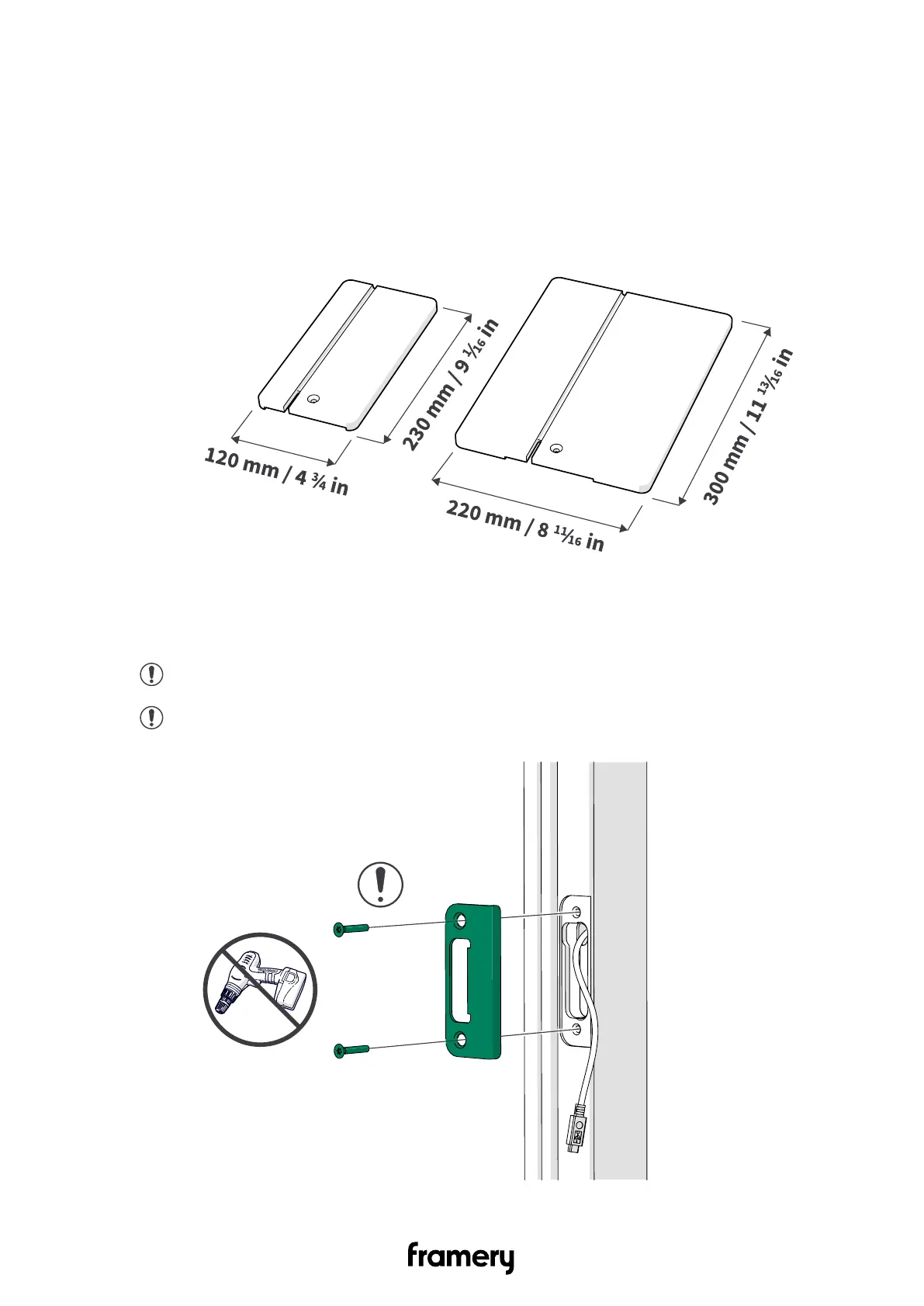

Choose the small or large wooden back plate according to the size of the customer
supplied tablet bracket.
1. Unscrew the M5x25 Taptite screws (2 pcs) and remove the strike plate from the lock-
side aluminum frame. Use a hand tool.
Note: Do not use power tools to remove the strike plate.
Note: Set the screws aside for later use. The standard strike plate is not
needed.
Installation instructions
info@frameryacoustics.com
55
