Framery Q (UL) Meeting Maggie

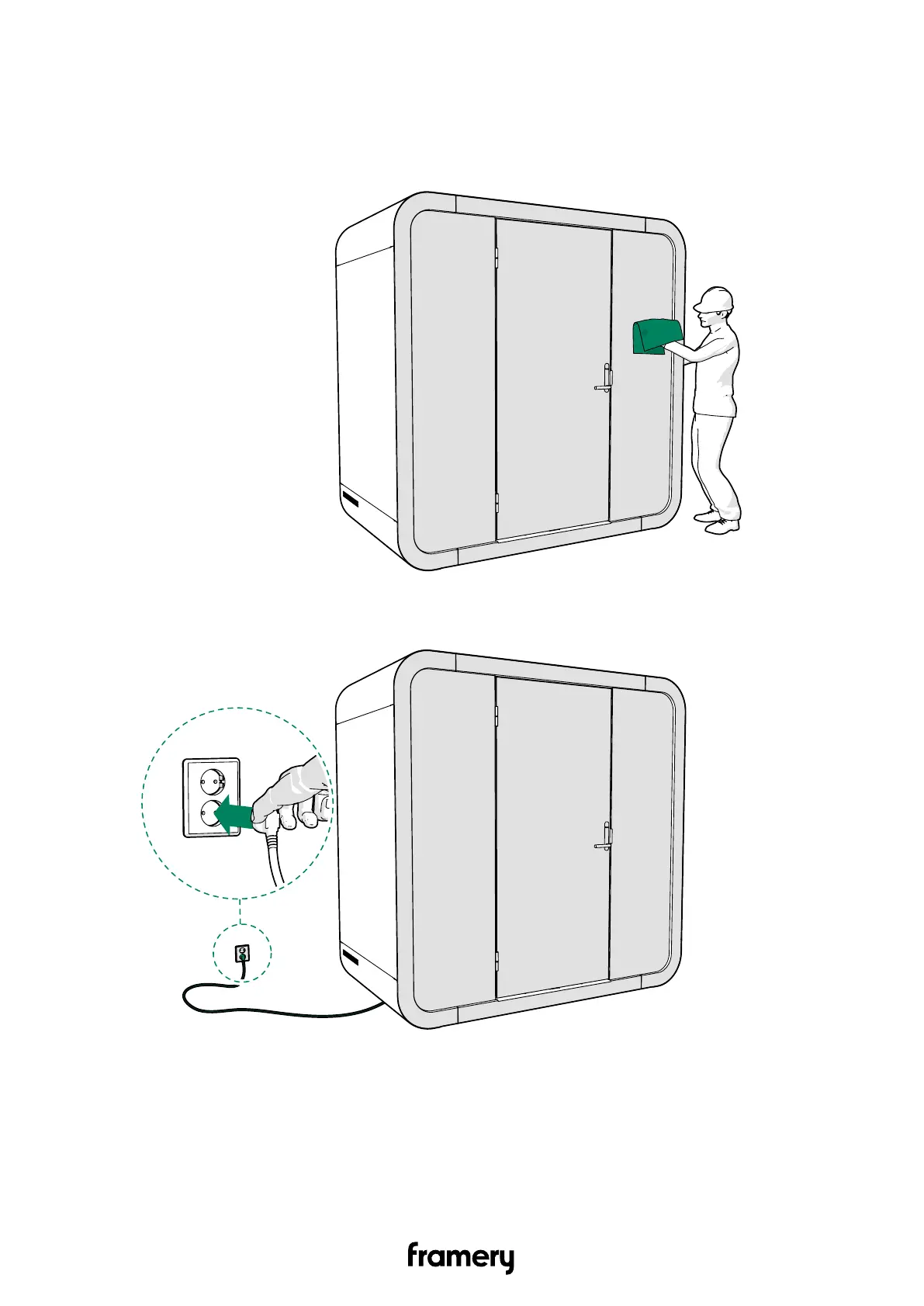

17 Finish the installation
1.
Clean the glasses with glass washing liquid and a lint-free cloth.
2.
Connect the main power cord to a power outlet.
140
Installation instructions
