Framery Q (UL) Meeting Maggie

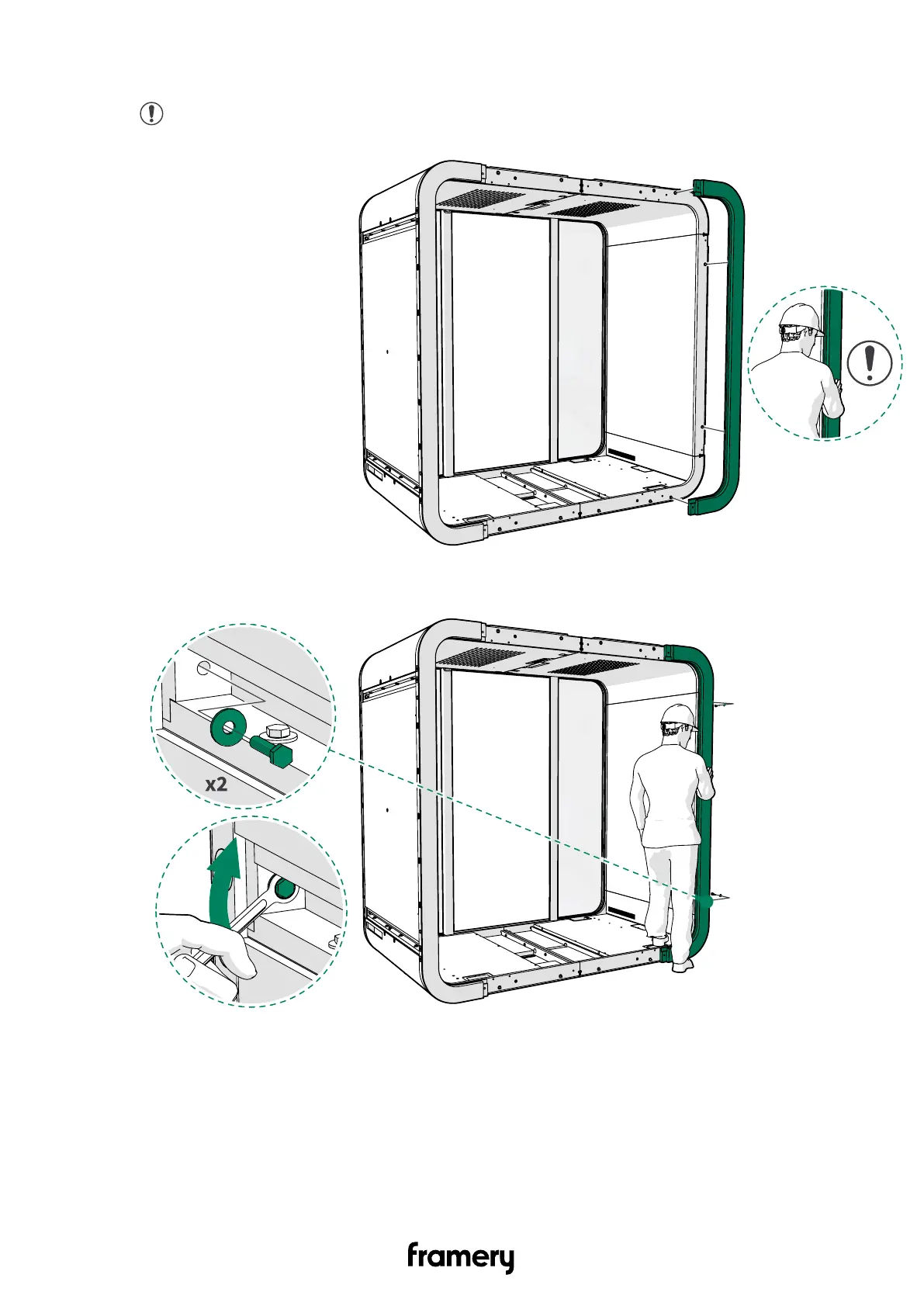

6. Lift the right-hand side frame into place.
Note: Support the frame until securely fastened.
7. Install the right-hand frame with M8x35 bolts (2 pcs) and M8 washers (2 pcs).
8.2 Install the lower frame
Install the lower frame to the floor with M8x60 bolts (2 pcs) and M8 washers (2 pcs) at the
small openings and with one M8x35 bolt and M8 washer at the center opening.
66
Installation instructions
