Framery Q (UL) Meeting Maggie

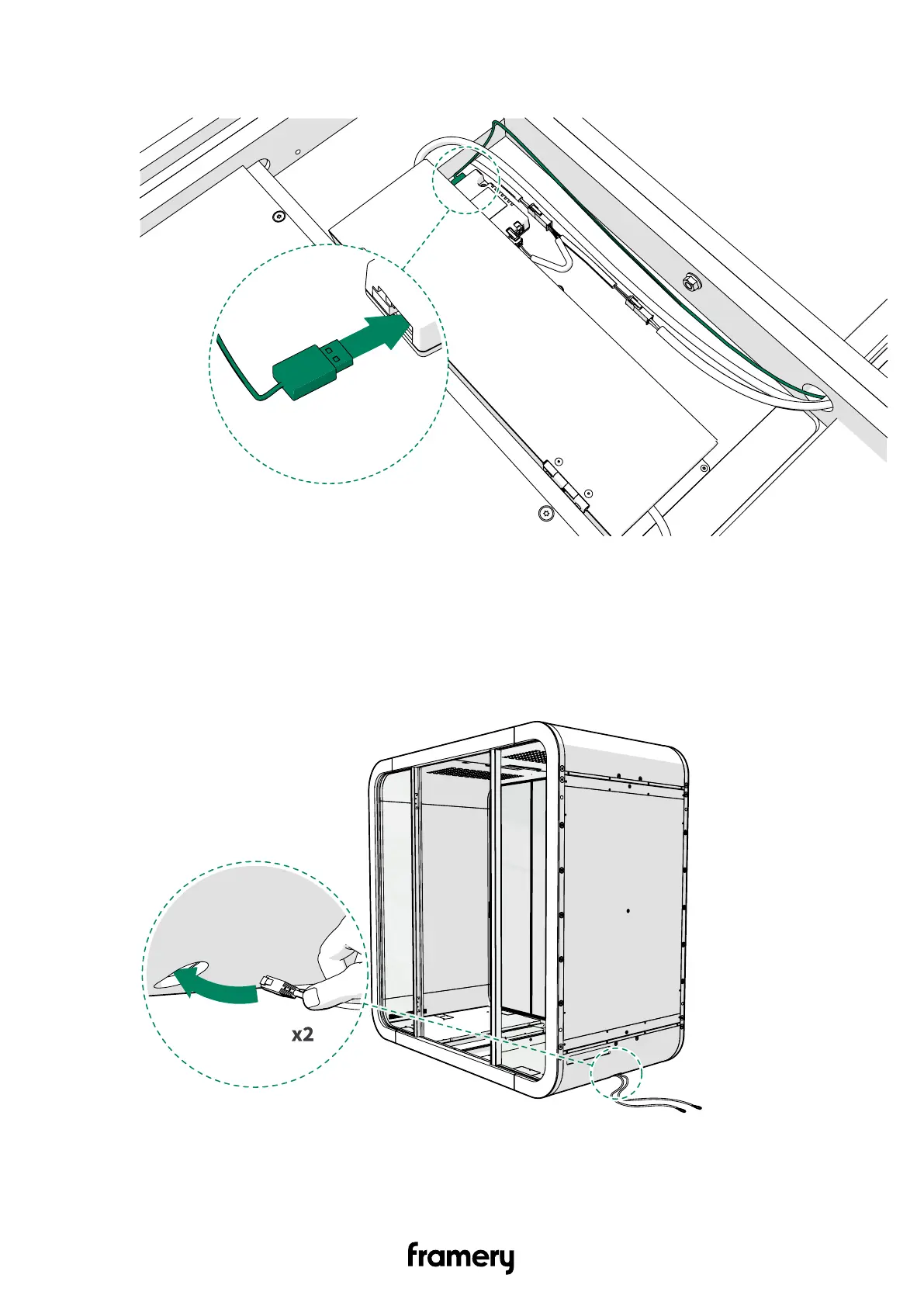

6. If installing the optional booking system bracket, connect the customer supplied USB
cord to the USB connector of the 5V unit.
11.3 Install the LAN cord (optional)
Install the LAN cords to the right-hand side of the pod.
1. If the pod delivery includes the LAN data cartridge option, feed two LAN cords into the
opening on the outside of the floor.
82
Installation instructions
