Framery Q (UL) Meeting Maggie

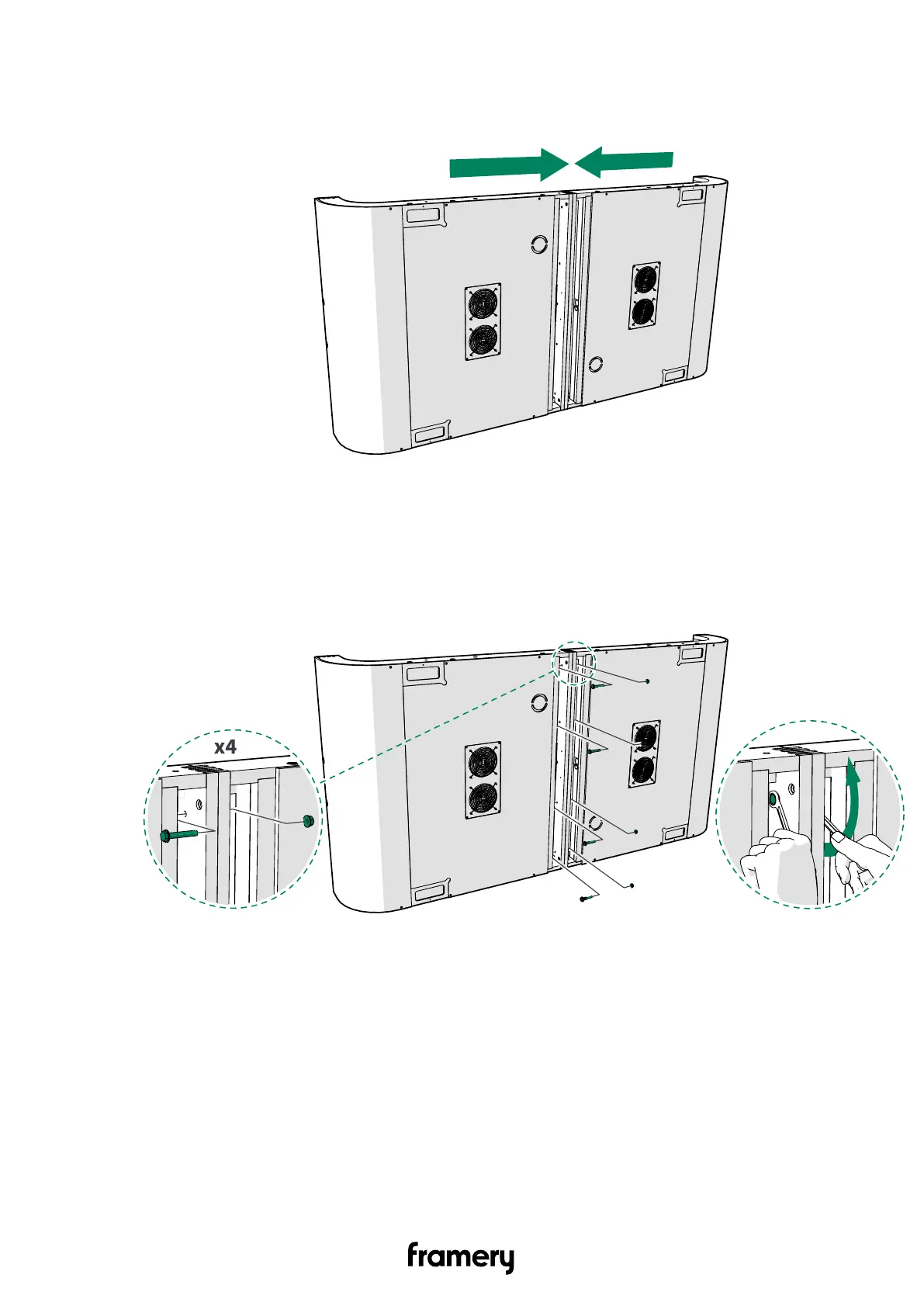

3. Push the roof modules together.

4. Install flanged M8x50 bolts (4 pcs) and flanged M8 nuts (4 pcs).

Installation instructions
