Framery Q (UL) Meeting Maggie

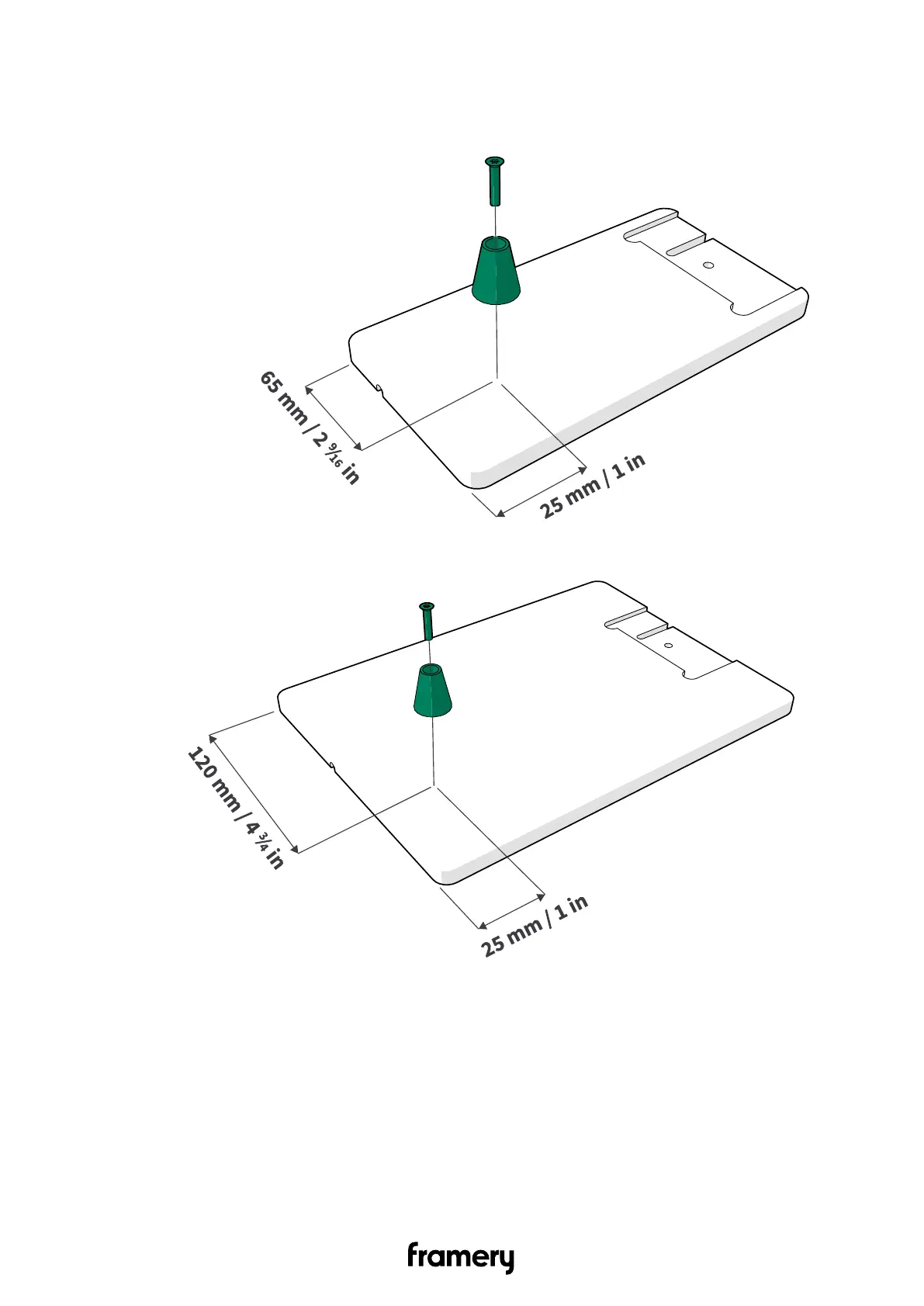

5. Measure the correct place for the rubber spacer on the chosen wooden back plate and

install with one 4x20 screw.
