6 | Installation Franke Kaffeemaschinen AG
32 User manual SB1200

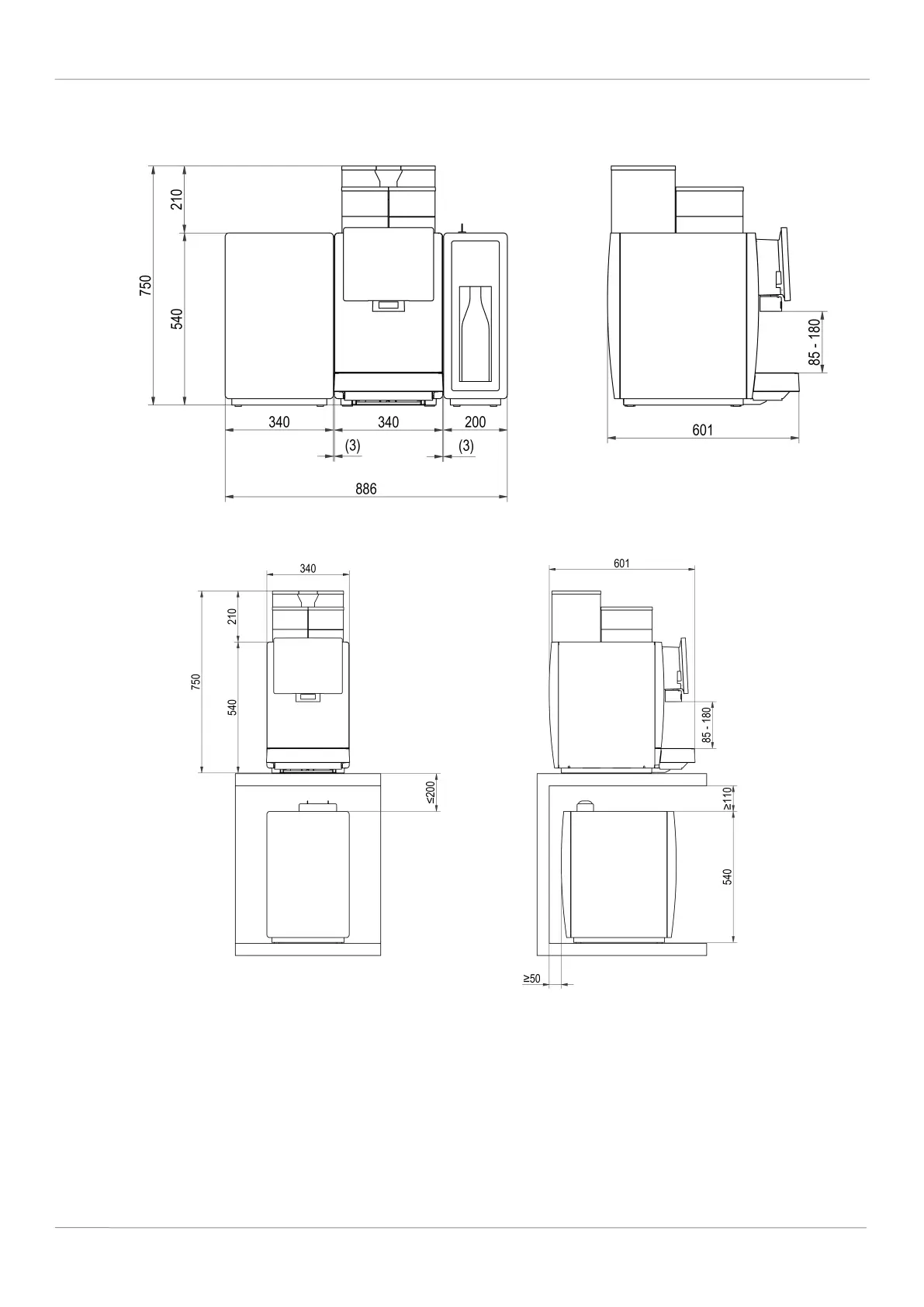

SB1200 FM CM with SU12 cooling unit and FS60 CM - front/side view
SB1200 FM CM with UT12 cooling unit - front/side view
Minimum clearances
– To the rear panel: 50 mm
– Above: 200 mm (for filling and removal of the bean hopper)
– To the right: 100 mm (for opening the door)
Openings in counter top
The following illustrations are examples. Please refer to the design data for the details that match your
configuration.
