Franke SB1200 - Water Supply and Quality

Franke Kaffeemaschinen AG Installation | 6
User manual SB1200 33

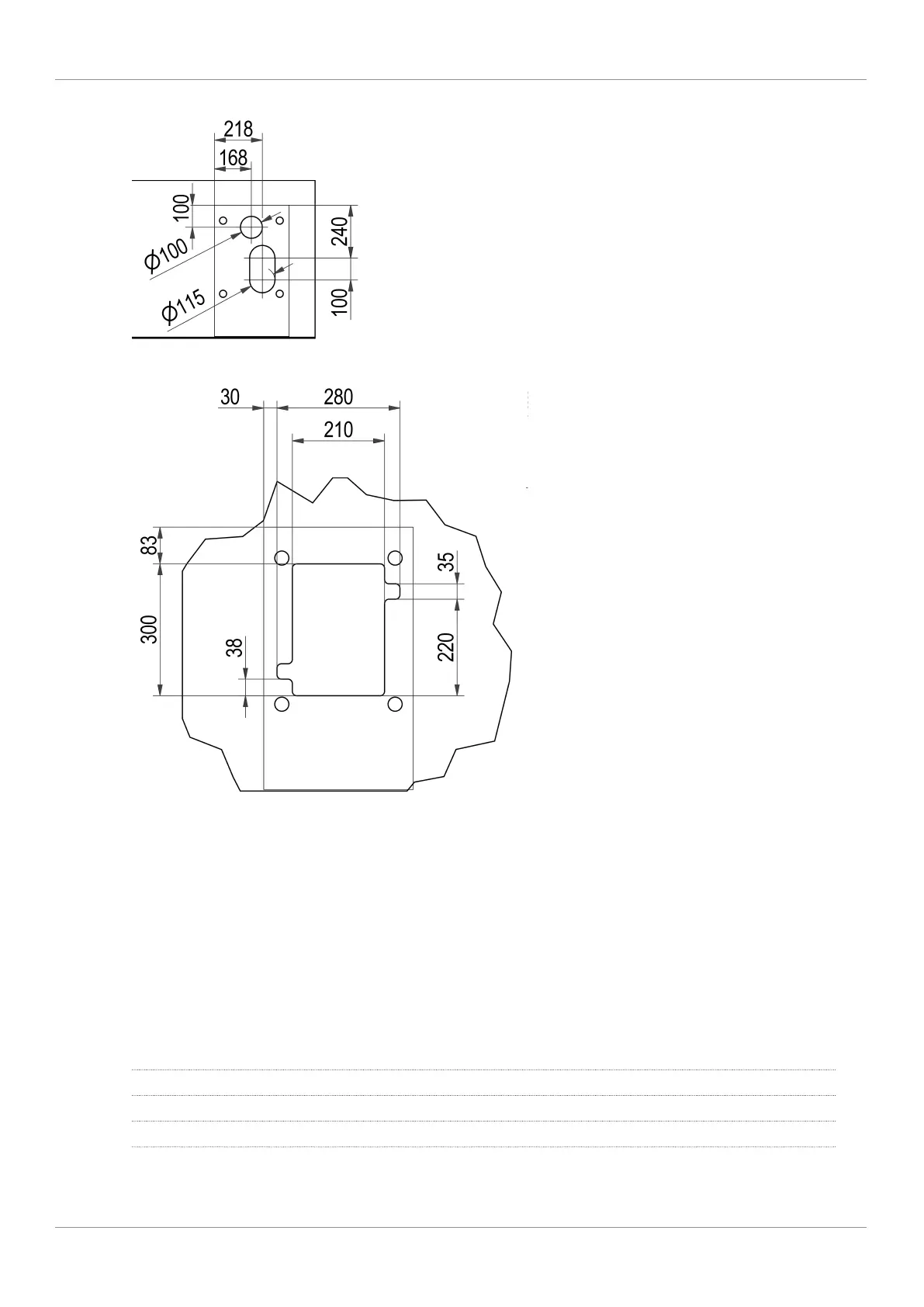

Openings in counter top when using adjustable feet
Opening in counter top when using the molded gasket
6.2.1 Feet
SB1200 FM CM is delivered with feet.
– 7 mm adjustable feet with molded gasket for fixing (optional)
Adjustable feet can be used to compensate for unevenness or differences in height.
6.3 Requirements of the water supply
6.3.1 Main water connection
Water pressure 0,8-8,0 bar
Flow rate >100 ml/s
Water temperature <25 °C
