Franke SPECTRA X Electrical Diagrams

Franke SPECTRA X
40 pages
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Page #30 background imageLoading...
Page #30 background image
RSC 11.07.2013
18.05.2005RSC
Geprüft
Ersatz für
Ersetzt durch
Massstab
Letzte Änderung
01619 RSC 10.06.2013
Artikel-Nr
1H327912
Franke Kaffeemaschinen AG
CH-4663 Aarburg/Switzerland
Tel +41 62 787 31 31
Fax +41 62 787 30 42
Franke Kitchen Systems
Franke Foodservice Systems
Franke Coffee Systems
Franke Washroom and Sanitary Systems
CPU-Print
Spectra, FCS4041
A3- 463753 C
Urspr-Zchg
Gezeichnet
NIRO-Plan AG
a FRANKE Company
These drawings and specifications are the property of NIRO-Plan AG
and shell not be reproduced, copied or transfered to any third party
without the prior written permission of NIRO-Plan AG, Switzerland.
5
20
21
19
18
16
15
6
7
8
9
1
2
10
4
3
111214
17
13

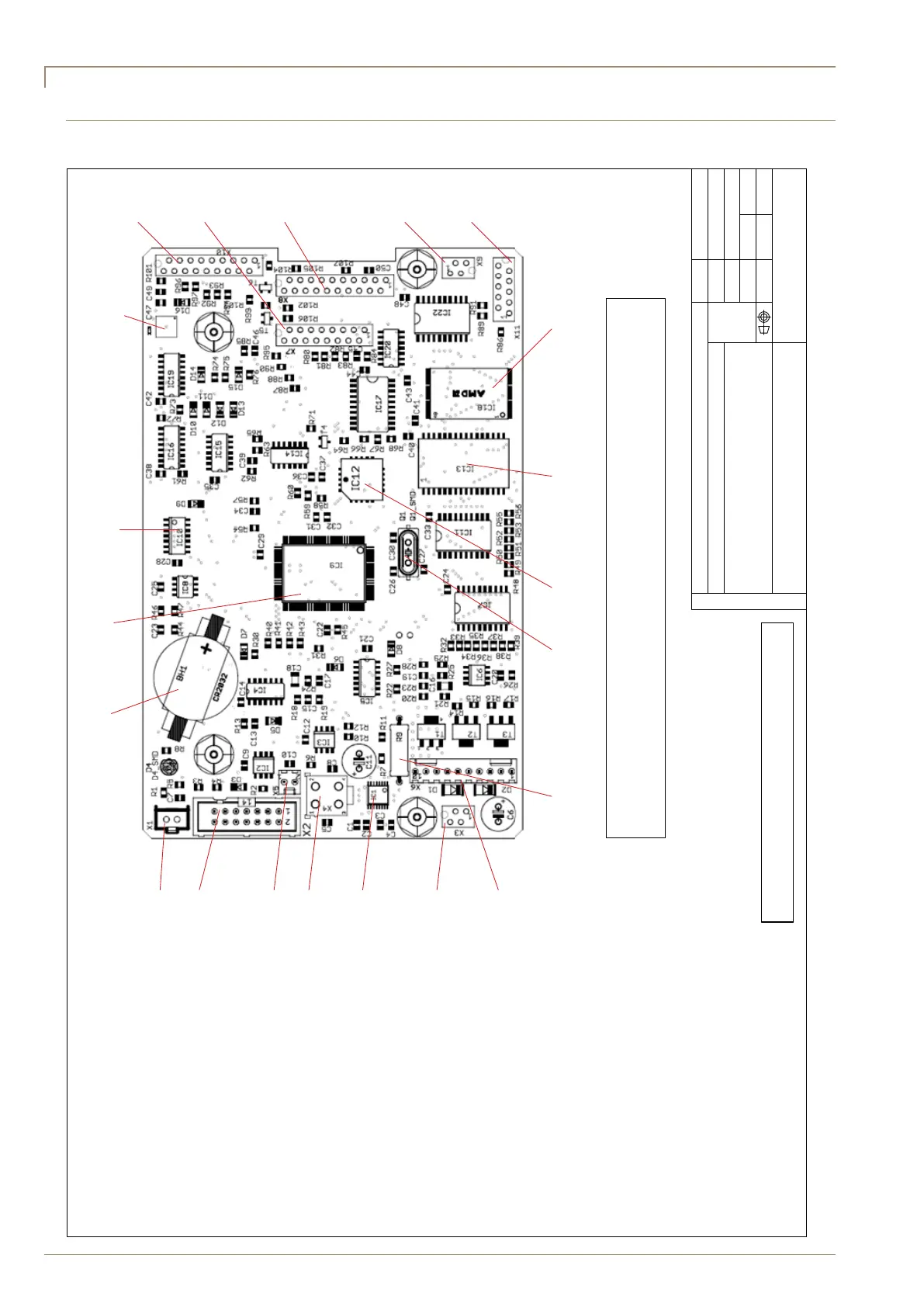

1 Batterie - Battery - Pile
CR2032 3V
2 Prozessor - Processor - Processeur
FUJI MB90F342 16kB RAM 256kB Flash
3 Echtzeit Uhr - Real Time Clock - Horloge temps réel
4 USB Treiber - USB Driver - Driveur USB
CP2102 USB >> serial
5 Programmiertasten-Print - Programming print -
Carte de programmation
6 Uhr-Display - Clock display - Écran montre
7 Grafik-Display - Graphic display - Écran graphique
8 Beleuchtung-Print - Illumination print - Carte illumination
9 Bedienung-Tasten - Button print - Bouton de commande
10 Flash AMD 1024kB >> 1MB
11 RAM 128kB
12 Generic Array Logic
13 Quarz 4MHz
14 Shunt-Strommessung Auslaufmotor -
Outlet motor current measurement -
Mesure de courant moteur
15 Kaffee-Umschaltventil / Cappu-Luftventil /
One-Wire / Auslaufposition / Auslaufmotor -
Coffee switch valve / Cappu-air valve /
One-Wire / Outlet position / Outlet motor -
Soupape cafe / Soupape Cappu-Air /
One-Wire / Position de sortie cafe / Moteur de sortie cafe
16 Beleuchtung-Print - Illumination print - Carte illumination
17 Auslaufmotor-Treiber - Outlet motor driver - Driveur moteur de sortie cafe
A3949
18 Speisung - Supply - Alimentation 5/24Vdc
19 Speisung - Supply - Alimentation: Touch-Panel
20 CAN-Bus intern >> LP-Print
21 Temperaturfühler - Temperature sensor - Capteur de température
Auto-Steam
Art.Nr. 1H325153 >> Hardware- Layout Version 2.xxRxx / Bestückungsversion 2.xxRxx
Art.Nr. 1H327912 >> Hardware- Layout Version 3.0r0 / Bestückungsversion 3.xxRxx
Art.Nr. ……………………..
Electrical diagrams
28  Diagrams Spectra S and X28  Diagrams Spectra S and X
Electrical diagrams
6.    CPU PCB
