Franke SPECTRA X Electrical Diagrams

RSC 10.12.2007
27.12.2005RSC
Geprüft
Ersatz für
Ersetzt durch
Massstab
Letzte Änderung
22365 06.11.2007
Artikel-Nr
Franke Kaffeemaschinen AG
CH-4663 Aarburg/Switzerland
Tel +41 62 787 31 31
Fax +41 62 787 30 42
Franke Kitchen Systems
Franke Foodservice Systems
Franke Coffee Systems
Franke Washroom and Sanitary Systems

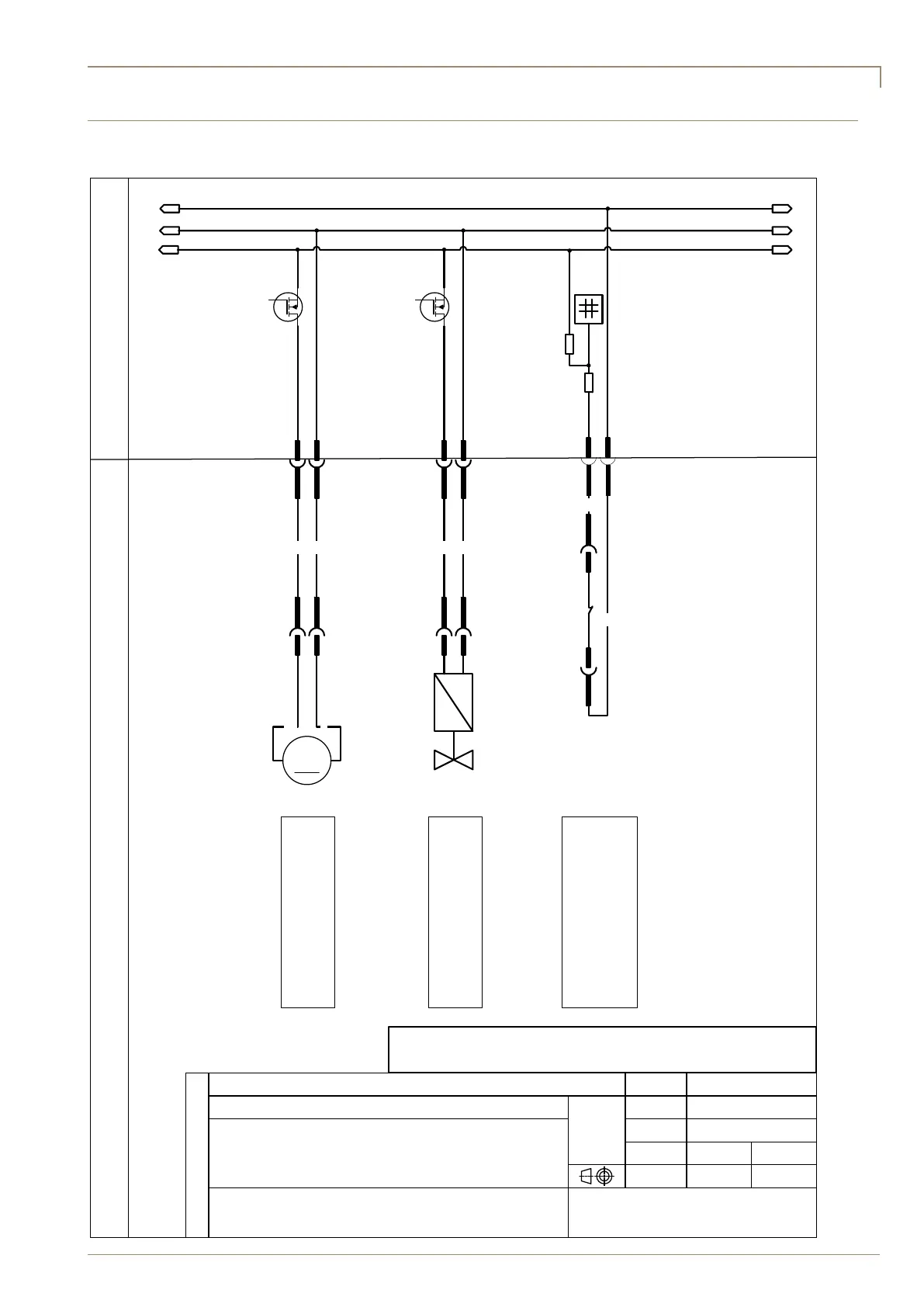

Boiler-Optionen X13
X13
Heating options X13
A4- 464019
Urspr-Zchg
Gezeichnet
NIRO-Plan AG
a FRANKE Company
These drawings and specifications are the property of NIRO-Plan AG
and shell not be reproduced, copied or transfered to any third party
without the prior written permission of NIRO-Plan AG, Switzerland.
X13.3 X13.6SP1
ws
SP2
ws
Druckregler
Presstage controle
Régulateur de pression
Spectra-S
S1
X13.2
X13.5 X13.4 X13.1
VCD1 VCD2 VCR1 VCR2
sw rt rt rt
Instant Lüfter-Motor
Spectra-S, -I
Instant Heisswasser links
Spectra-S
Y 25
+24 Vdc-X
GND
+24 Vdc
Komponentenverdrahtung components
Leistungsprint Powerprint
circuit imprimé de puissance
composante
1H 326 013
M
sw rt
Electrical diagrams
Document Number: TD-104418/A Order Number: 1H329033/A
Diagrams Spectra S and X 33Diagrams Spectra S and X 33
Document Number: TD-104418/A Order Number: 1H329033/A
Electrical diagrams
11. Boiler options X13
