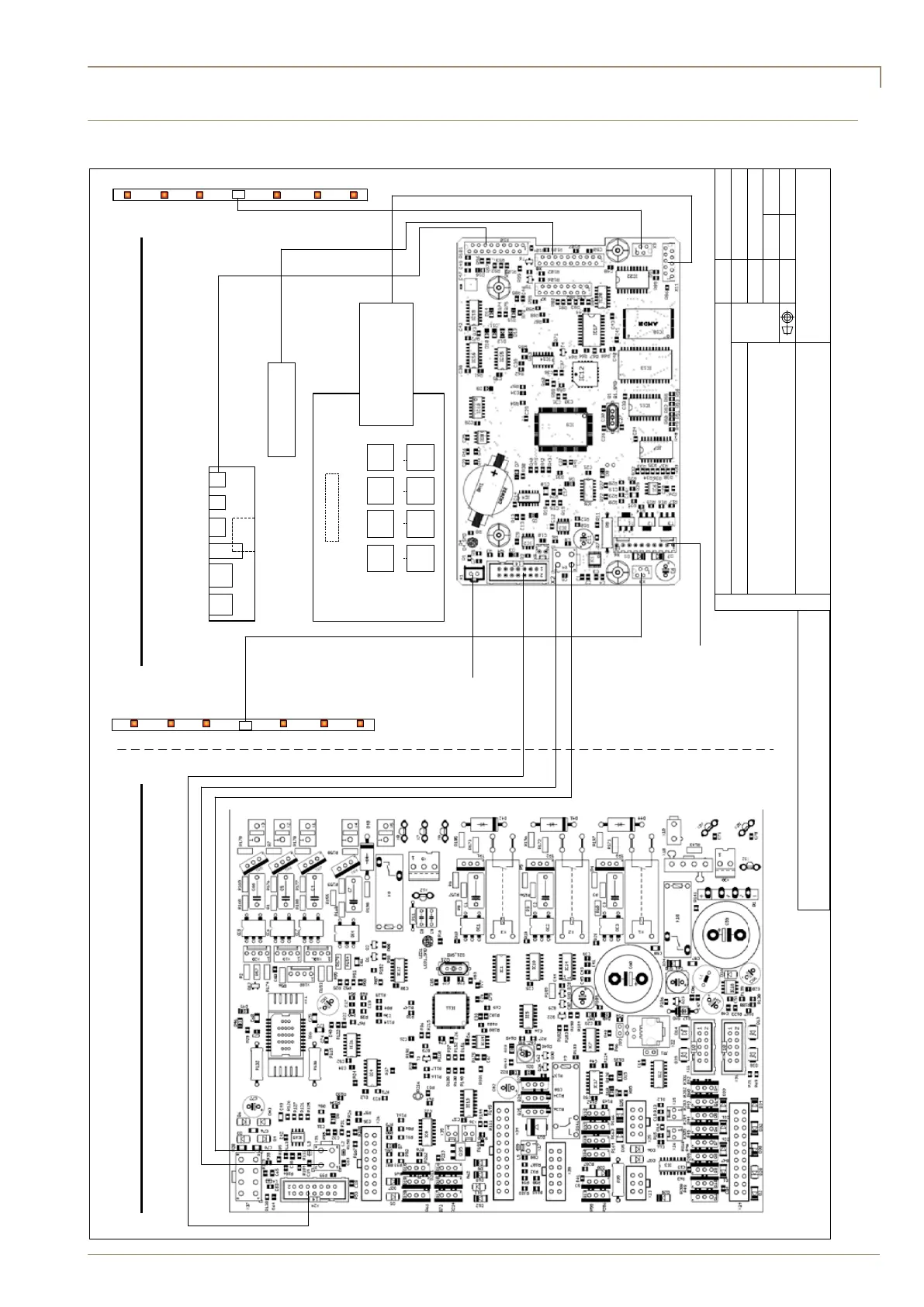

Übersicht Vetro CAP 8
Spectra / FCS4041
Apercu / Overview
A3- 463764 B
Urspr-Zchg
Gezeichnet
NIRO-Plan AG
a FRANKE Company
These drawings and specifications are the property of NIRO-Plan AG
and shell not be reproduced, copied or transfered to any third party
without the prior written permission of NIRO-Plan AG, Switzerland.
Programmiertasten
Programming keys
Bouton de programmation
Exit
+
ON/
OFF
-
CLEAN
/Enter
U
S
B
Chip-
Kartenleser
1 3 5 7
2 4 6 8
5Vdc
24Vdc
CAN intern
One-Wire, Kaffee-
Umschaltventil, Cappu-
Luftventil,
Auslaufüberwachung,
Auslauf-Motor
Auto-STEAM
Maschinen-Kopf / Machine head / Face de la machineElektrokasten / Electro cabinet / Cabinet électronique
Bedienprint Vetro CAP 8
1H328683
Bitte Wählen
Spectra
123IP4 15.01.2007 12:00
Grafik-Display 240x64
Graphic display
Écran graphique
1H328207
CPU-Print
1H327912
1H327913
Leistungsprint
Power print
Circuit imprimé de puissance
1H328329
1H328901
Kantenbeleuchtung RGB
Edge illumination
Éclairage des bordures
1H328901
Kantenbeleuchtung RGB
Edge illumination
Éclairage des bordures
Electrical diagrams
Document Number: TD-104418/A   Order Number: 1H329033/A
Diagrams Spectra S and X  25Diagrams Spectra S and X  25
Document Number: TD-104418/A   Order Number: 1H329033/A
Electrical diagrams
3.    Overview of Vetro CAP
