Chapter 10 Photoresistor & LED
124
www.freenove.com █
█ support@freenove.com
Circuit
The circuit of this project is similar to the one in last chapter. The only difference is that the input signal of the
AIN0 pin of PCF8591 is changed from a potentiometer to combination of a photoresistor and a resistor.

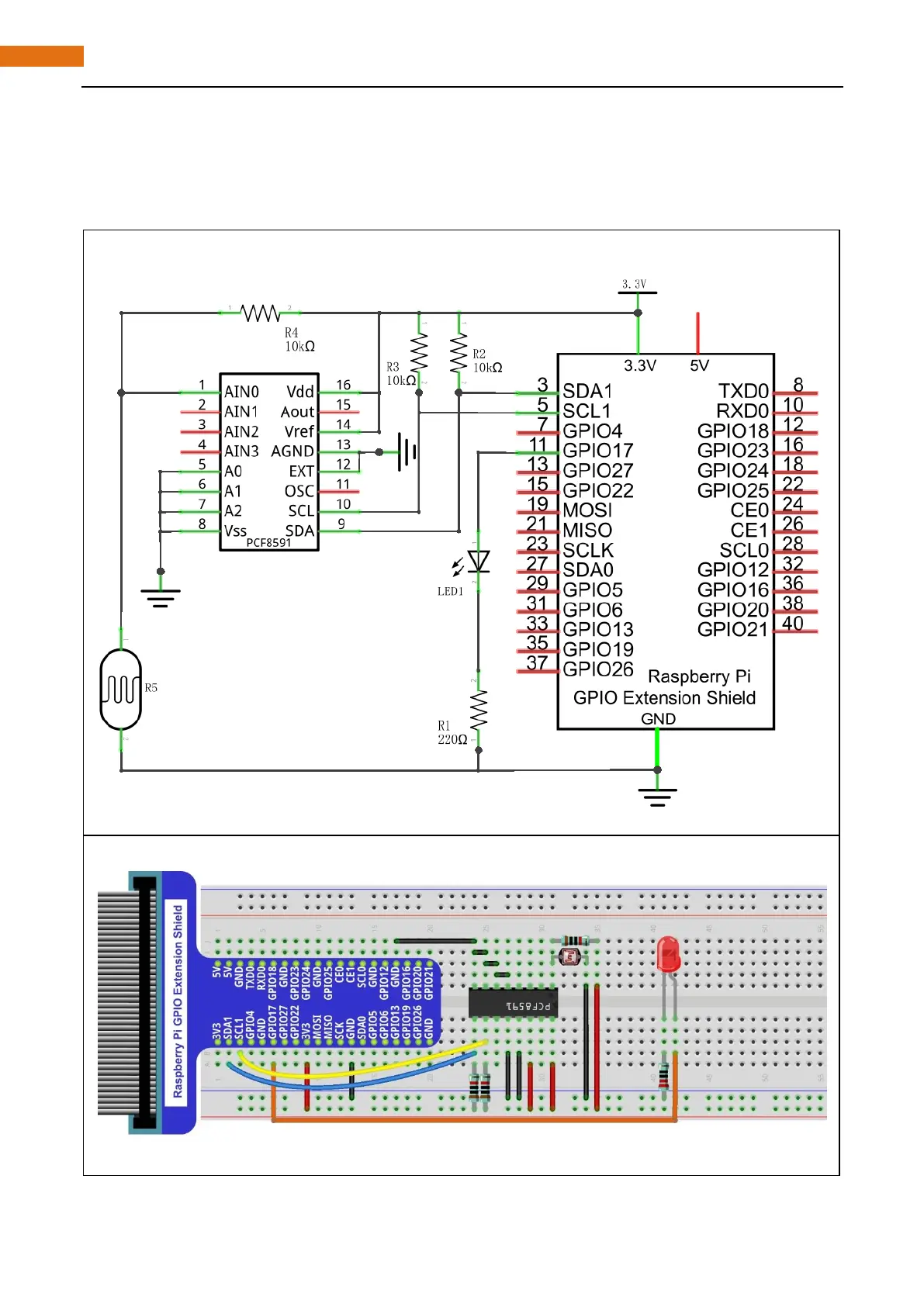

Schematic diagram
Hardware connection
