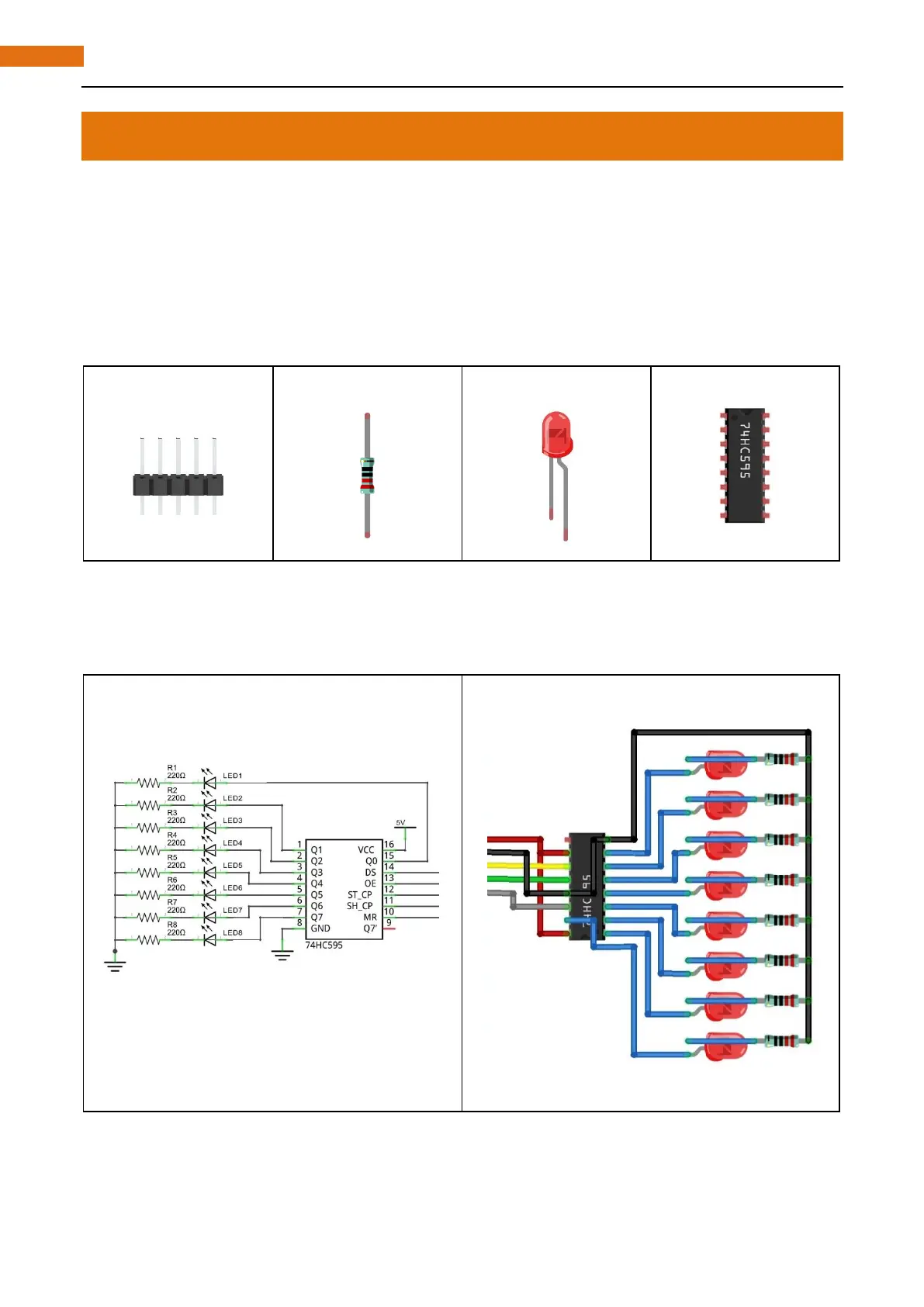

Chapter 27 Solder Circuit Board
278
www.freenove.com █
█ support@freenove.com
Project 27.2 Solder a Flowing Water Light
From previous chapter, we have learned to make a flowing water light with LED. Now, we will solder a circuit
board, and use the improved code to make a more interesting flowing water light.
Component list
Pin header x5
Resistor 220Ω x8
LED x8
74HC595 x1
Circuit
Solder the following circuit on the general board.
Schematic diagram
Hardware connection
