Circuit

When connecting the circuit, pay attention to that because the motor is a high-power component, do not

use the power provided by the RPi, which may do damage to your RPi. the logic circuit can be powered by

RPi power or external power supply which should have the common ground with RPi.

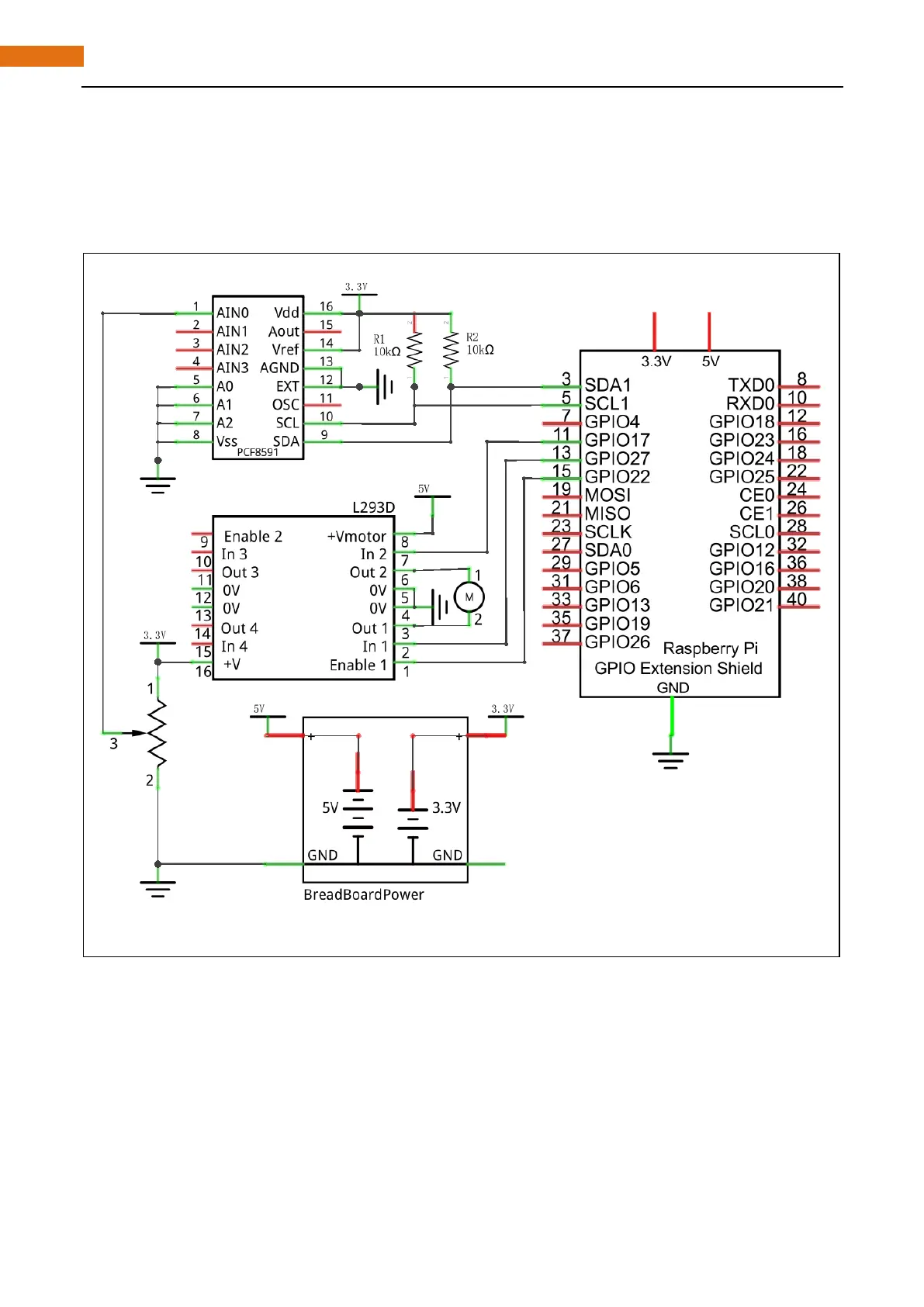

Schematic diagram
