45
Chapter 0 Preparation
█ www.freenove.com
support@freenove.com █

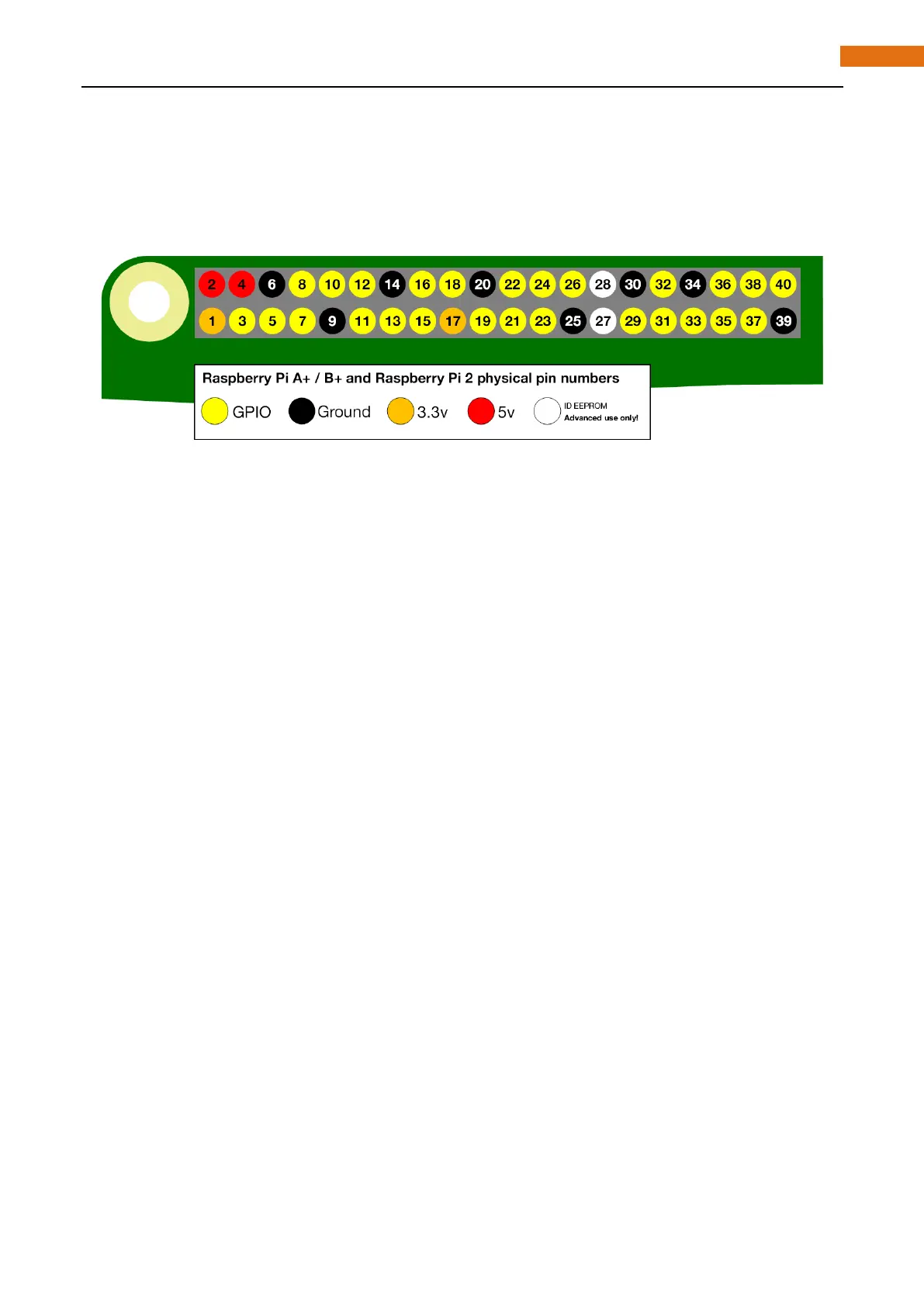

PHYSICAL Numbering
Another way to refer to the pins is by simply counting across and down from pin 1 at the top left (nearest to
the SD card). This is 'physical numbering', as shown below:
