Component knowledge
Push button

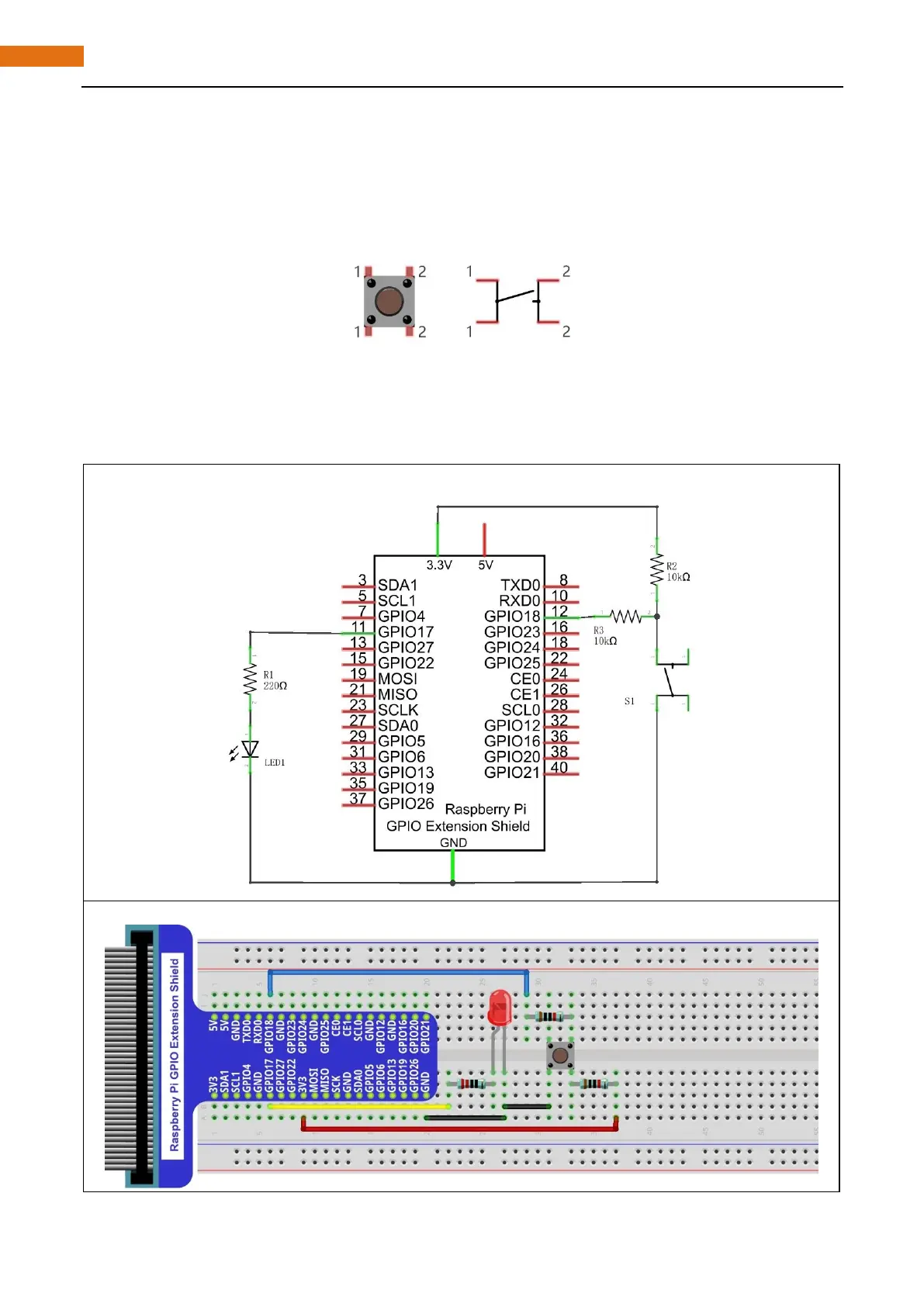

Push button has 4 pins. Two pins on the left is connected, and the right is similar as the left, which is shown
in the below:
When the push button is pressed, the circuit is turned on.
Circuit
Schematic diagram
Hardware connection
