FGR2-PE Wirelss Data Transceiver
LUM0024AB Rev A

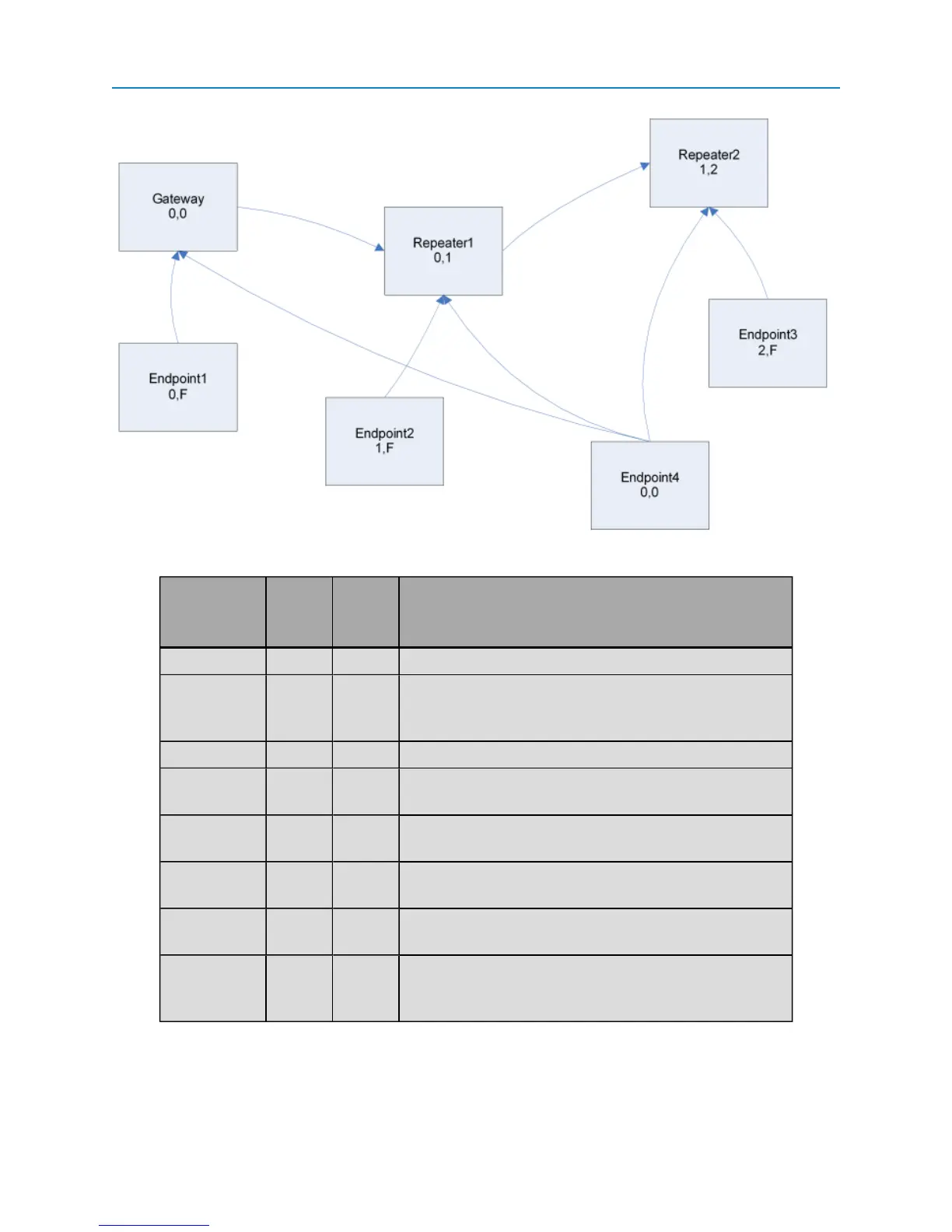

The following table shows the subnet IDs for the above example:
Transceiver
Subnet
ID
(RX)
Subnet
ID (TX) Other Information
Gateway F F The Gateway uses 0,0.
Gateway 0-F 0-F The Subnet ID (TX) value may be set in the Gateway.
The default settings (F, F) actually use 0, 0. The Subnet
ID (RX) on the Gateway has no effect on the network.
Repeater 1 0 1 A 0 forces the transceiver to link only to the Gateway.
Repeater 2 1 2 SubnetID (RX) = 1 forces communication through
Repeater1. Repeater1 transmits on SubnetID 1.
Endpoint 1 0 F SubnetID (RX) = 0 forces communication through Gate-
way.
Endpoint 2 1 F SubnetID (RX) = 1 forces communication through
Repeater1.
Endpoint 3 2 F SubnetID (RX) = 2 forces communication through
Repeater2
Endpoint 4 0 0 The 0, 0 setting allows the Endpoint to link with the first
Gateway or Repeater it hears with the correct Network
ID.
64
