DPF Zones, Detroit Engines

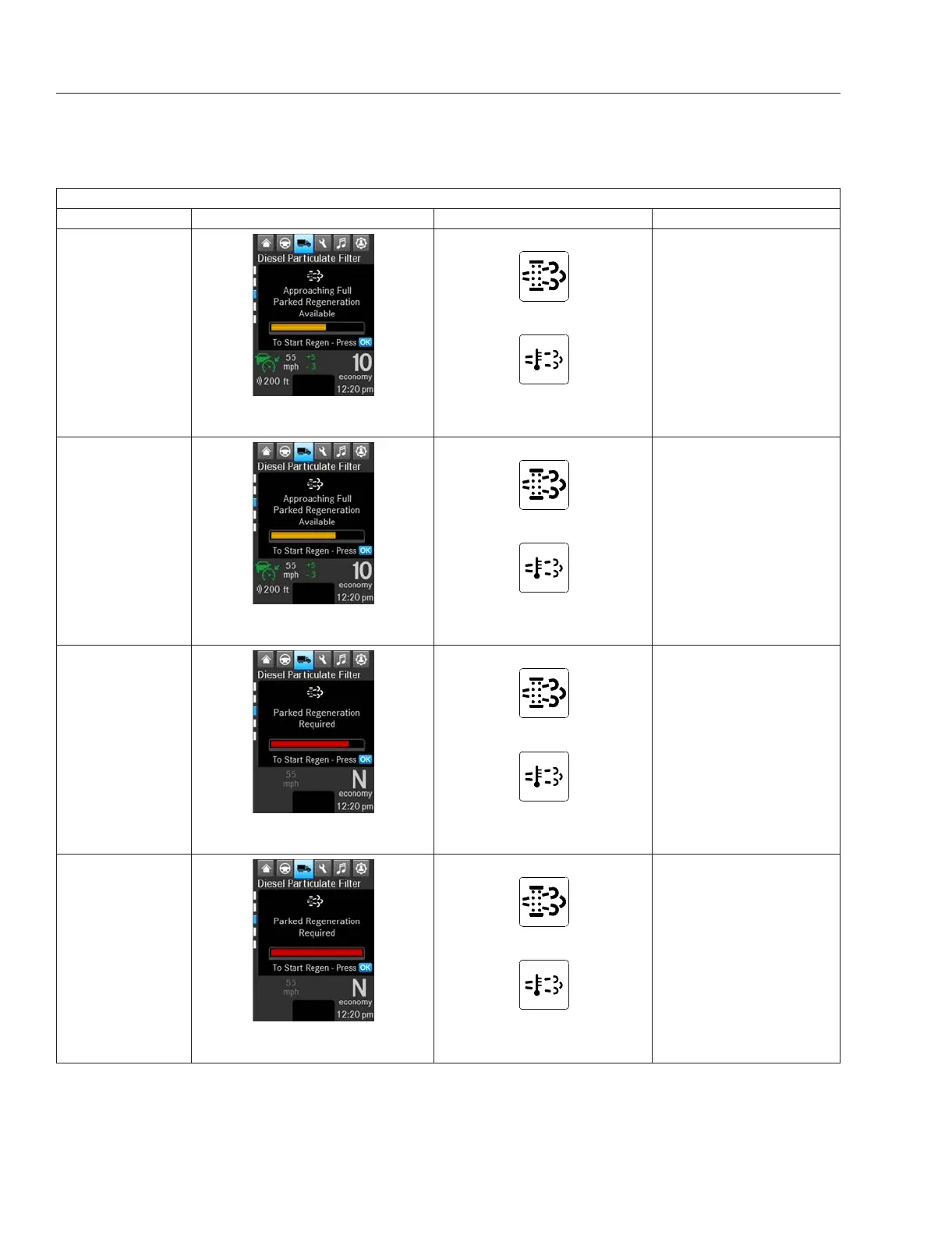

DPF Zone DPF Status Bar Warning Lamps Regen Mode Available
2
f61140006/10/2016
60–70% Yellow
DPF solid yellow
HEST solid yellow
*
• over-the-road
• parked
3
f61140106/10/2016
70–80% Yellow
DPF flashing yellow
HEST solid yellow
*
• over-the-road
• parked
4
f61140206/10/2016
80–90% Red
DPF flashing yellow
HEST solid yellow
*
• parked
5
f61140306/10/2016
90–100% Red
DPF flashing yellow
HEST solid yellow
*
• parked
*
Illuminates if exhaust temperature is above a preset limit.
Table 13.3, DPF Zones, Detroit Engines
