6.
Forward/Back Slide: Pull the lever to unlock the
seat and slide it forward or back. Release the
lever to lock the seat in position.
Adjust the seat so that reaching and pressing the
pedals requires no effort and all dashboard
controls are within easy reach.
7.
Seat Tilt: Pull the lever and add or reduce
weight on the front area of the seat cushion to
move it into one of three positions. Release the
lever to lock the seat into position.
The tilt of the seat, along with the tilt of the
backrest and the contour of the seat cushion,
affects the amount of pressure placed on the
underside of the thighs and the back.
8.
Armrest Tilt: To adjust the armrest angle, tilt the
armrest to the highest position, then down to the
lowest position, then to the desired position.
The armrest should be at an angle where the
elbows lay lightly on it; this helps to relax the
muscles in the shoulder and neck.
Sears C-2 Plus Seat
Seat Slide Adjustment
NOTE: The seat should only be adjusted when
the vehicle is parked with the park brake on.
Push the seat slide (forward/back adjustment) lever
shown in
Fig. 5.25 all the way to the left and slide
the seat forward or backward, as desired. Release
the lever to lock the seat in the desired position.
Isolator
To engage the isolator (if installed), move the seat
slide and isolator lever, as shown in Fig. 5.26, all the
way to the right. To lock out the isolator, move the
isolator lever to the center position.
Lumbar Support
Move the three-position lumbar support lever upward
to increase lumbar support (firmer). Move the lever
downward to decrease lumbar support (less firm).
NOTE: This three-position lever (see inset) does
not rotate a full 360 degrees.
For seats with air support, use the aft rocker switch
on the control panel on the left-hand side of the seat,
shown in
Fig. 5.27. Press up to make the seat
firmer; press down to make the seat less firm.
10/08/2001
f910487
1
2
3
4
5
1. Seat Slide Lever
2. Seat Cushion Tilt Adjustment
3. Ride Height Knob
4. Lumbar Support Lever
5. Backrest Lever

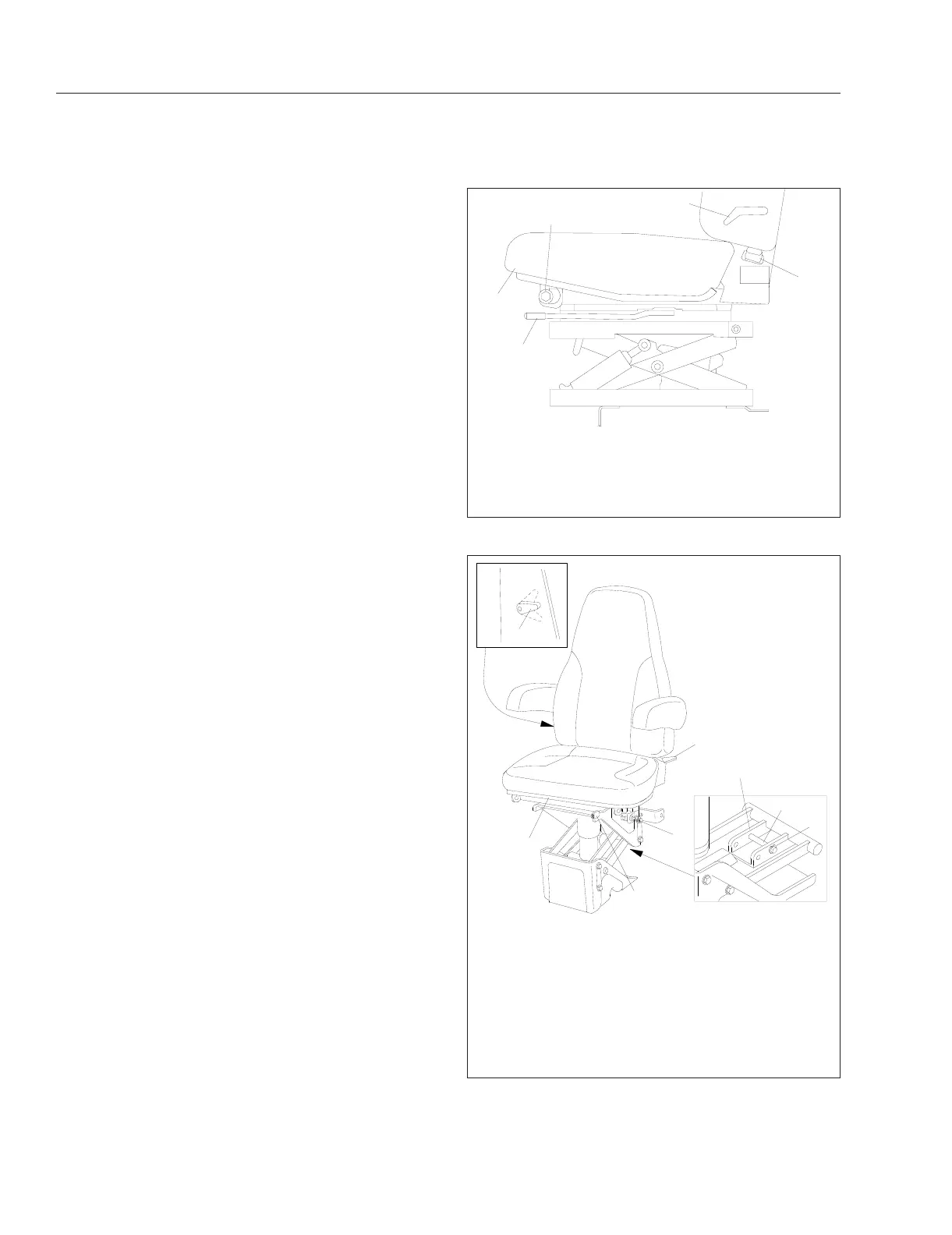

Fig. 5.25, Sears Low Profile Seat
10/09/2001
f910486
1
2
3
4
5
6
7
8
NOTE: Armrests are optional.
1. Lumbar Support Lever
2. Backrest Lever
3. Ride Height Knob
4. Shock Absorber Bracket (ride firmness)
5. Pin (ride firmness)
6. Snap Ring (ride firmness)
7. Seat Slide and Isolator Lever
8. Seat Cushion Adjustment
Fig. 5.26, Sears Fleetmaster Seat (with isolator)
