Interior Lighting Controls
Interior lighting includes dome lamps, console lamps,
reading lamps, and courtesy lamps. See Fig. 5.4 for
location of the lamps.
Lamps may be controlled using the menu screen of
the ICU, dash switches, or by pressing on the lamp
lens.
Dash-mounted switches are back lit to illuminate the
text and icon on the switch. Press the upper half of
the switch to turn the desired lamp(s) on or off. If the
lights have a dimming function, hold the switch down
to cycle the light between bright and dim.
Interior Lights
Door Courtesy Lamps
Each door contains a door entry courtesy lamp
located on the bottom of the door pocket that
illuminates when the door is opened, and stays on
for a short time after both doors are closed.
Foot Well Lamps
If equipped, amber lamps illuminate both foot wells
when the driver or passenger doors are opened.
These lamps can also be activated with the foot-well
light switch, shown in
Fig. 5.5.
Cab Dome Lamp
In the day and extended cab, the cab dome lamp is
at the midpoint of the cab ceiling; in a crew cab there
is a second dome lamp near the cab back wall. The
cab dome lamp illuminates when a door is opened
and stays on for a short time after both doors are
closed.
f60294812/15/2022

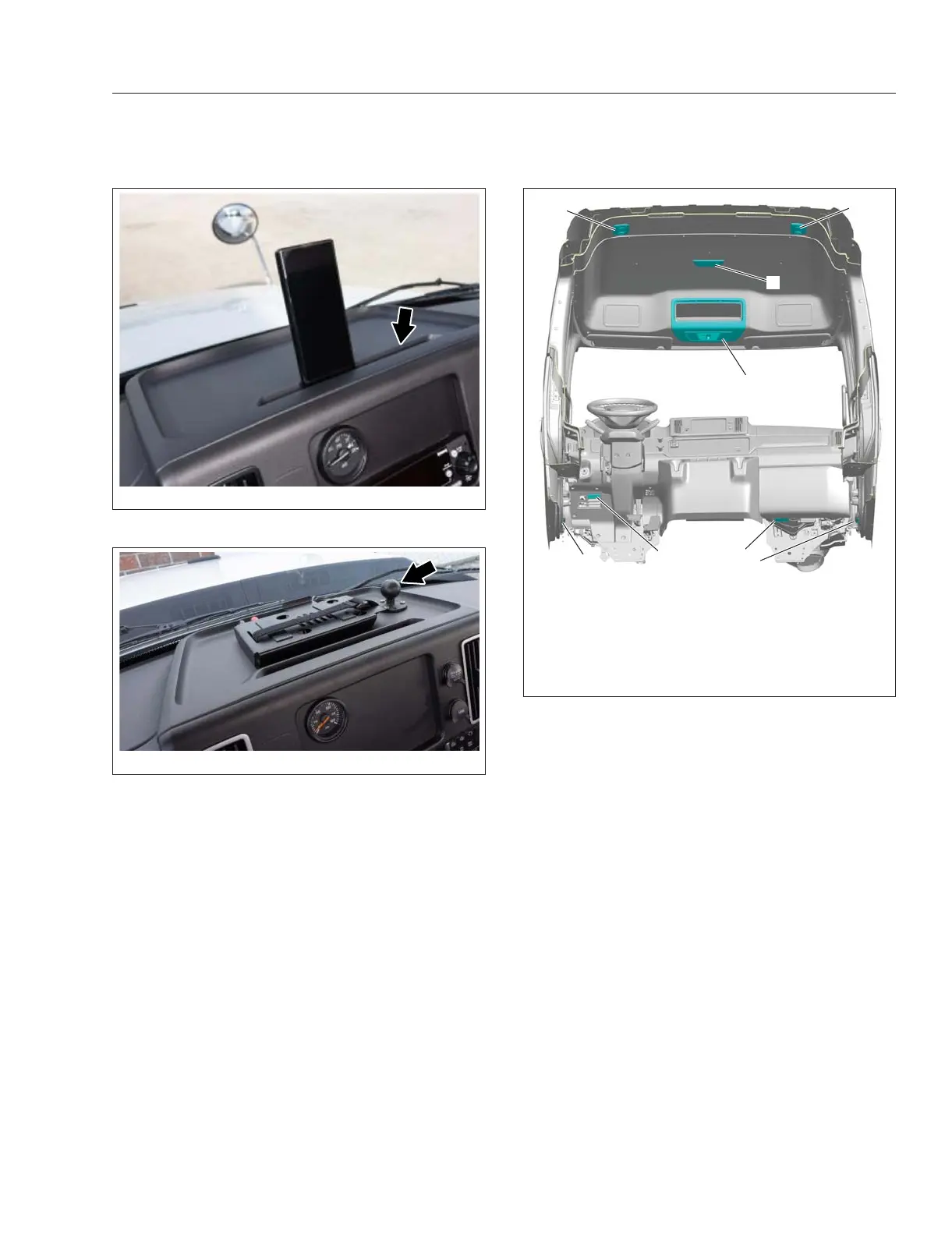

Fig. 5.2, Tablet Slot
f60294712/15/2022
Fig. 5.3, Optional RAM
f54773202/16/2022
1
2
3
4
5
6
6
5
1. Crew Cab Reading Lamp
2. Crew Cab Reading Lamp
3. Cab Dome Lamp
4. Overhead Console Lamps
5. Door Courtesy Lamps
6. Footwell Lamps
Fig. 5.4, Interior Lamps
