Telltales, Indicator Icons, and Messages
Brakes

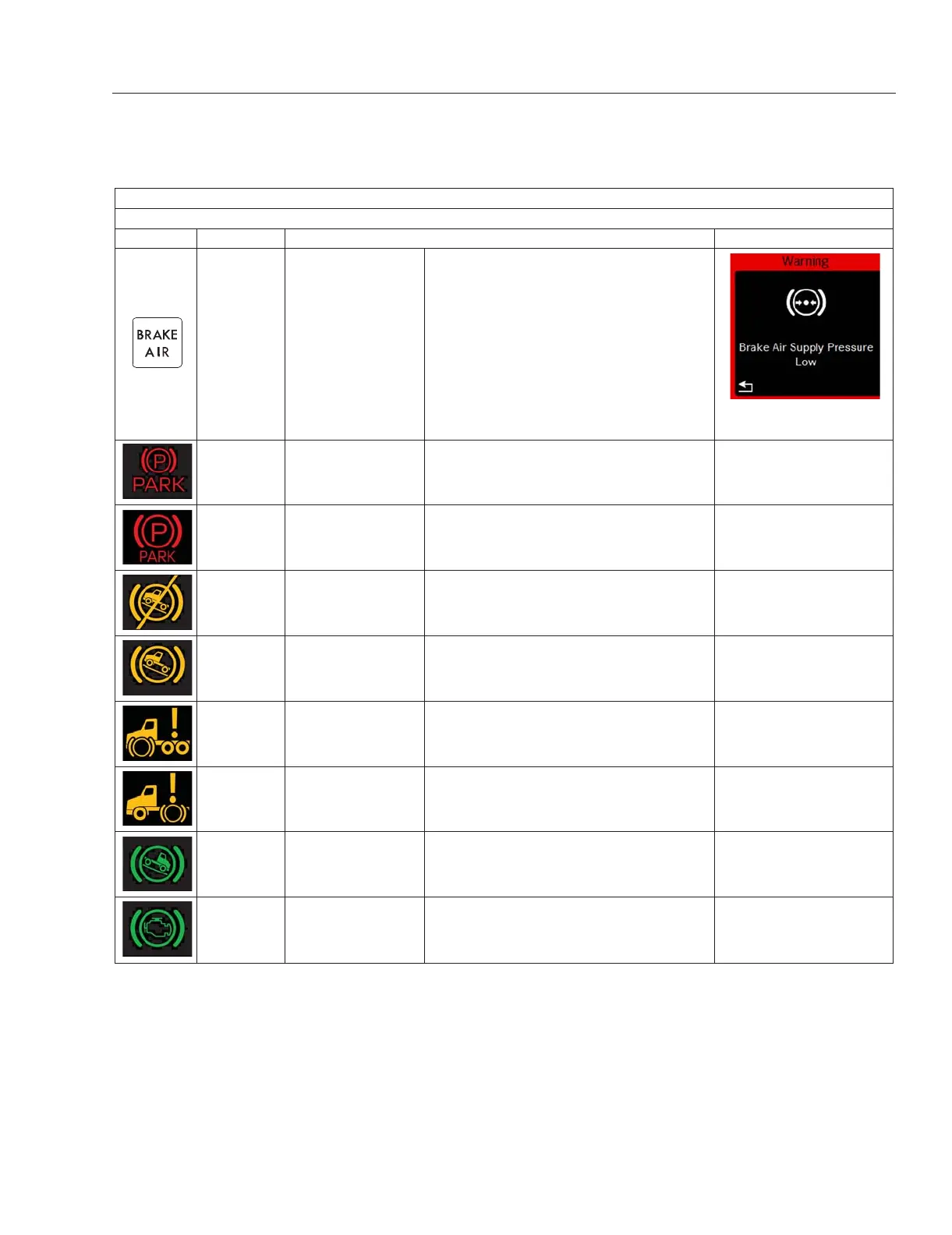

Telltale Color Description Related Messages
Red
Low Brake Air
Pressure (EPA10
and Newer)
Alternate low brake air pressure telltale.
Indicates air pressure in the primary or
secondary reservoir has dropped below
approximately 70 psi (483 kPa).
f61142906/30/2016
ICUC Warning
Red
Parking Brake
Engaged
(EPA10 and Newer)
Indicates the parking brake is engaged.
Red
Parking Brake
Engaged
(EPA10 and Newer)
Alternative icon indicating the parking brake
is engaged.
Amber
Hill Holder Assist
Off
Amber
Hill Start Aid
Engaged
Amber
Winch Brake
Caution
Amber Work Brake Caution
Green
Descent Control
Mode Engaged
Green
Engine Brake
Engaged
Indicates the engine brake is enabled.
Table 3.6, Brake Related Indicators
