Spotlamp
The spotlamp switch is located on the pivoting
handle of the spotlamp. There may be a single
AMBT
LIGHT
ALL
DOME
TRLR
LIGHT
WORK
LIGHT
FOOT
WELL
UTLY
LIGHT
DASH
LIGHT
DRL
OFF
SLPR
DOME
AUX
HIGH
DOME
LIGHT
04/18/2016 f611404
1
2 3 4 5 6
7 8 9 10 11

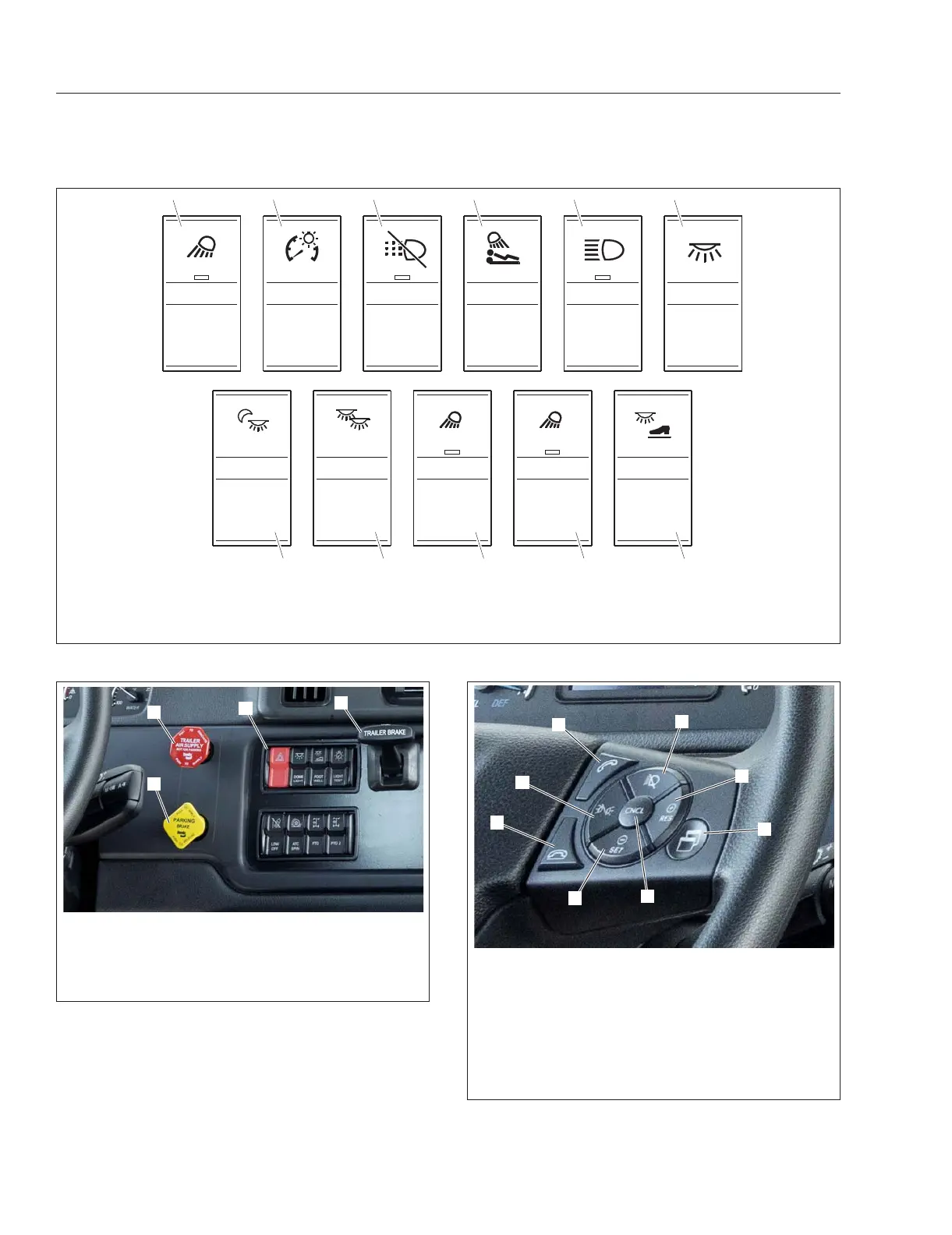

1. Utility Lamp Switch
2. Dash Lamp Switch (optional)
3. DRL Override Switch
4. Sleeper Dome Lamp Switch
5. Auxiliary High Beam Lamp Switch
6. Cab Dome Lamp Switch
7. Sleeper Ambient Lamp Switch
(N/A)
8. All Dome Lamps Switch
9. Trailer Utility Lamp Switch
10. Utility Lamp Switch
11. Foot Well Lamp Switch
Fig. 4.6, Dash-Mounted Light Switches
f61219311/ /2029 22
1
2
3
4
1. Parking Brake Control
2. Trailer Air Supply Control
3. Hazard Warning Switch
4. Trailer Brake Control
Fig. 4.7, Right-Hand Panel Dash Controls
f61219411/ /2029 22
1
2
3
4
5
6
7
8
1. Phone Hang-Up/Reject
2. Marker Interrupt
3. Phone Pick-Up
4. Headlamp Interrupt
5. Cruise Accelerate/Resume
6. Quick Access System Settings
7. Cancel Cruise Control
8. Cruise Decelerate/Set
Fig. 4.8, Steering Wheel Right-Hand Switch Pod - ICUC
Driver Controls
4.5
