SECTION 4 - COMPONENT TEAR DOWN

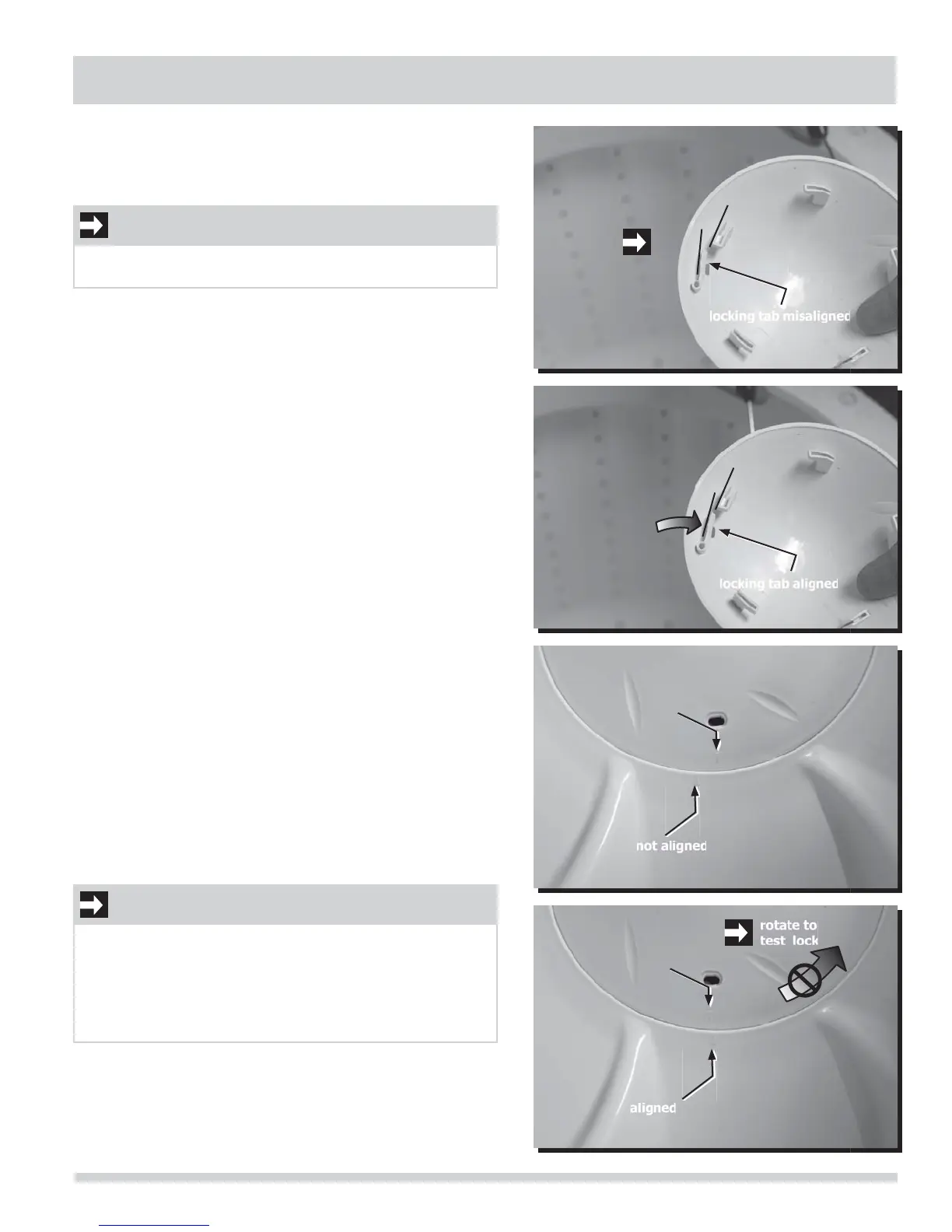

Wash Plate Cap (Reinstallation)
To reinstall the wash plate cap:
1. Ensure locking tab is correctly aligned.
2. Place the wash plate cap onto the wash plate with the
alignment arrows just offset.
3. Rotate the wash plate cap clockwise until the locking tab
clicks into place. The indicating arrows should be aligned.
4 - 13
aligned
rotate to
test lock
not aligned
IMPORTANT
A misaligned locking tab will not securely hold the wash
plate cap in place and it may come loose during normal use.
IMPORTANT
After reinstalling the wash plate cap, test the locking tab
by attempting to rotate the cap back counter-clockwise. If
cap rotates, locking tab has not been engaged. Rotate cap
again clockwise with force to engage tab. If tab still has not
engaged remove cap and inspect locking tab for alignment
and adjust tab angle as necessary.
locking tab misaligned
locking tab aligned
