SECTION 4 - COMPONENT TEAR DOWN
Í
NOTE
Removing cabinet side panels is not necessary, but may
improve access to rear springs.
4 - 17

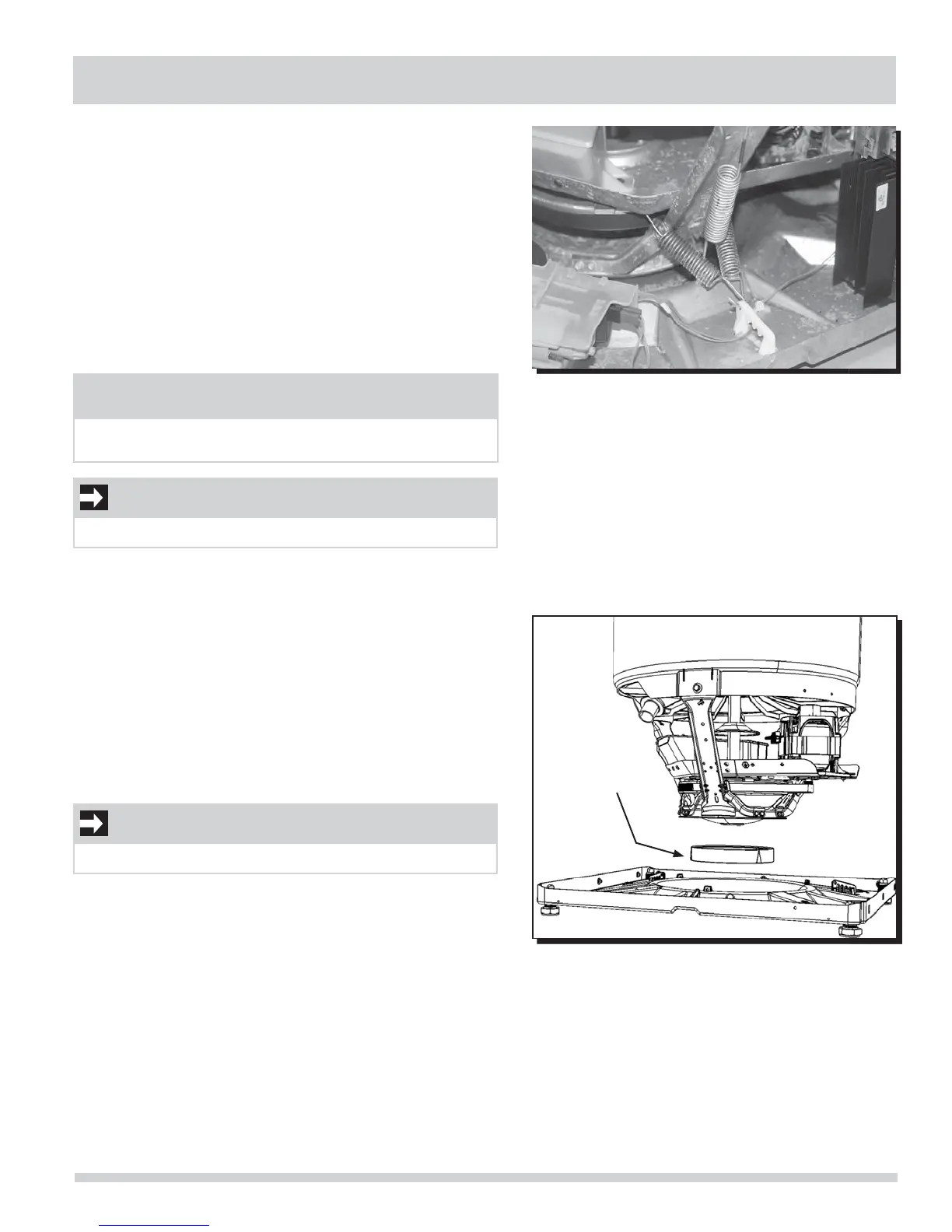

Leg and Dome Assembly
The leg and dome assembly is held in place and centered
by various horizontal and vertical springs in three positions
around the assembly - front, left-rear, and right-rear.
To remove the leg and dome assembly:
1. Disconnect the washer from electrical source and remove
the front panel, top panel, splash tub cover, wash plate
cap, wash plate, spin tub, trunion (large or standard),
seal seat, seal head, internal slinger, water pressure
switch hose, and splash tub.
2. Release each vertical and horizontal spring.
Pinion Snubber
The pinion snubber is located under the leg and dome
assembly and supports the leg and dome assembly (including
wash group) in the center of the cabinet base.
To remove the pinion snubber:
1. Disconnect the washer from electrical source and remove
the front panel, top panel, splash tub cover, wash plate
cap, wash plate, spin tub, trunion (large or standard),
seal seat, seal head, internal slinger, water pressure
switch hose, splash tub, and leg and dome assembly.
IMPORTANT
See next page for reinstallation and spring orientation.
IMPORTANT
See next page for reinstallation and snubber orientation.
pinion snubber
