Fritz!Box Fon User Manual

IP Settings
FRITZ!Box Fon – 6 Guidebook 53

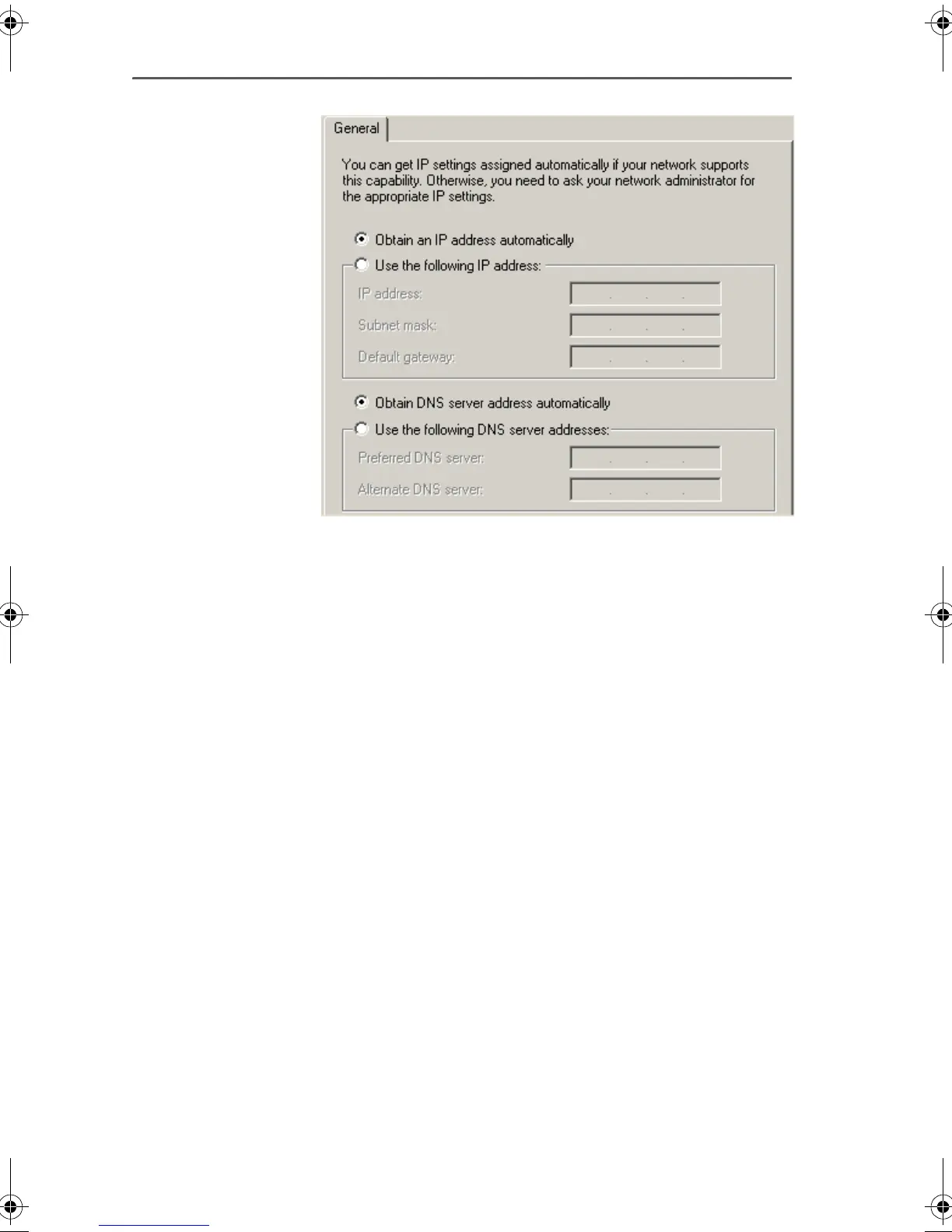

The “Obtain an IP address automatically” option
6. Confirm your selection by clicking “OK”.
The computer now receives an IP address from FRITZ!Box Fon.
Linux
For comprehensive information and tips on the topic of net-
work configuration in Linux, see:
http://www.linux.org/docs/ldp/howto/
NET3-4-HOWTO-5.html
Obtaining an IP Address Automatically in Mac OS X
In the Mac OS X operating system, proceed as follows to set
the TCP/IP properties:
1. Select the “System Preferences” in the Apple menu.
2. In the “System Preferences” window, click the “Net-
work” icon.
3. In the “Network” window, select the “Built-in Ethernet”
entry from the “Show:” drop-down menu.
FRITZ!Box_Fon-e.book Seite 53 Donnerstag, 4. November 2004 2:08 14

Fritz!Box Fon Specifications

General

Brand	AVM
Model	Fritz!Box Fon
WLAN Speed	54 Mbps
Telephony	Yes
USB Ports	1
VoIP Support	Yes
Firewall	Yes
VPN Support	Yes
Type	Router
DSL Standard	ADSL/ADSL2+
WLAN Standard	802.11g
